DIG - 2 GPH Pressure Compensating Drip Emitter - PCO-020

by DIG
SKU PCO-020
Save 20%
Original price $0.40
Current price $0.32




PRODUCT DETAILS

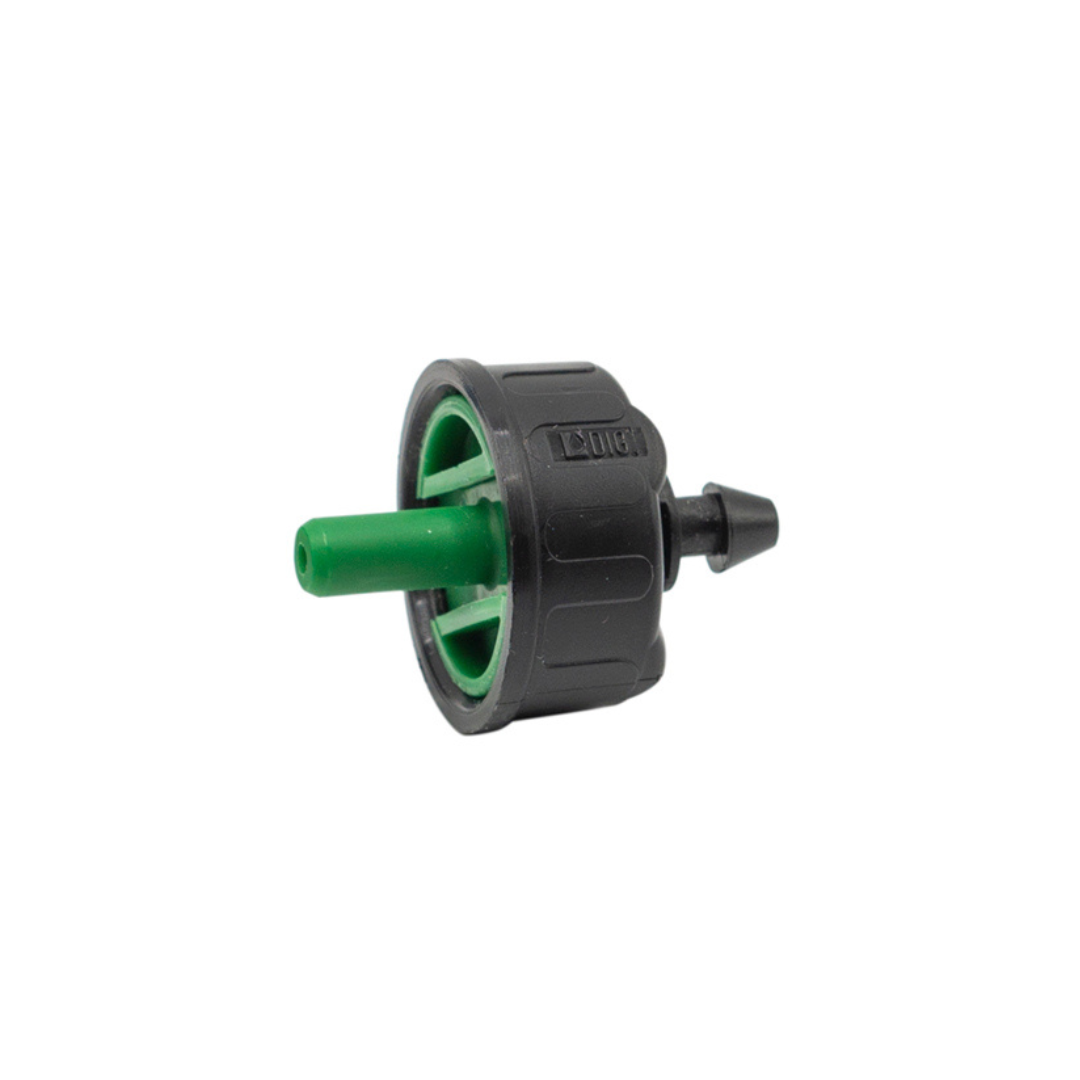

2 GPH Pressure Compensating Button Drip Emitter

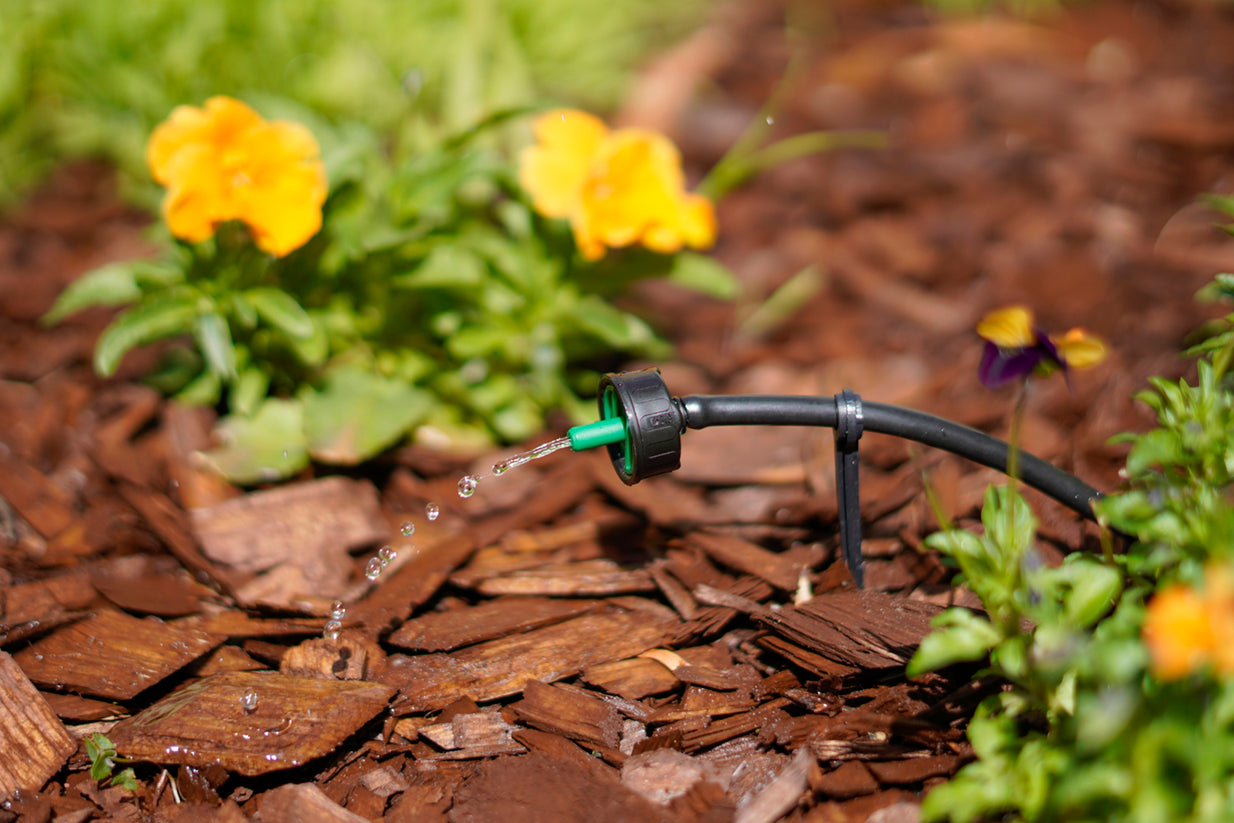

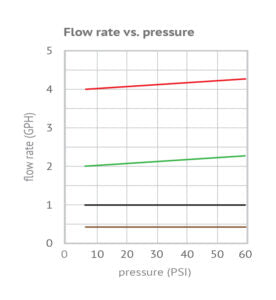

DIG Pressure Compensating (PC) Button Drip Emitters are designed to produce a consistent flow rate over a pressure range of 7.25 to 58 PSI. DIG PC drip button emitters are continuously adjusting to varying water pressures, ensuring a constant flow from each drip emitter regardless of pressure fluctuations or varying elevations along the line. Used for flowers, shrubs groundcovers and trees, DIG PC drip emitters offer a convenient way to water both, new and existing landscapes, including difficult terrain such as slopes, oddly shaped areas and sites with high winds.

Specifications

  • Flow rate and color code:
    • 2 GPH (7.60 L/H) Color Code – Green
  • Operating pressure: 7.25 - 58 PSI (.5 - 4 BAR)
  • Inlet size: 1/4" (4 mm) barb
  • Outlet size: 1/4" nipple
  •  Filter requirement:
    • 150 mesh/100 microns for 1 GPH (3.8 L/H) or higher
  • Filter selection depends on water quality and concentration of dirt particles
  • Materials:
    • Body and cover: polypropylene
    • Diaphragm: silicone

Features

  • Labyrinth water passage with a floating silicon diaphragm design provides a self-cleaning mechanism at the water outlet
  • Barbed inlet for installation into drip tubing or 1/4″ distribution tubing
  • Male nipple outlet for a placement of multi-outlet adapter or bug caps
  • Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
  • Available in four color-coded flow rates for easy identification
  • Pressure compensation enables the use of longer laterals with smaller diameter tubing
  • Ideal watering solution for long laterals, rapid irrigation cycles, and for light soils
  • Outlet can be connected into 1/8″ micro tubing with a stake for branching from the main line or lateral
  • Unaffected by fluctuating inlet water pressure
