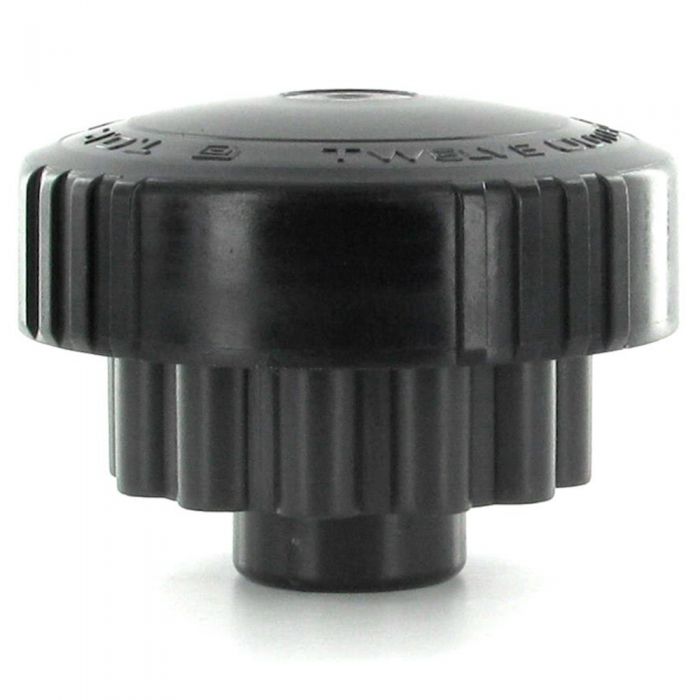

DIG - T.O.P 12-Outlet Manifold (2.2 GPH) - TOP-020

TOP 12-Outlet Drip Emitter. 2.2 GPH per outlet. The TOP concept is designed for first time installations or retrofitting an existing sprinkler riser into an efficient 12-Outlet drip irrigation system. The TOP concept utilizes unique self cleaning, pressure compensating emitters enabling long runs with even water distribution from all outlets.

Color-coded converter barbs, end plugs, caps, stakes and micro tubing sold separately. OR you can purchase TOP-100, TOP-200 or TOP-300 kits that include the accessories previously listed.

Features

• Use with 1/8" in. (.187 OD) distribution tubing
• or 1/4" in. (.150-.160 ID) distribution tubing when you purchase a bag of T.O.P Converter Barbs.
• 10-012-B12 (Red)
• 10-013-B12 (Green)
• 10-017-B12 (Black)

• Built-in with 12 individually pressure compensating drip emitters
• Self-flushing emitters allow passage of water and minimize clogging
• Interchangeable drip emitters available for variable flow rates in a single head
• Color-coded drip emitters and barbs easily identify flow rate at each zone
• Each drip emitter individually filtered (approx. 80 mesh)
• Backup mini-disk filter
• Rugged materials to withstand the most adverse conditions
• Install above grade or place below grade in a 6" emitter box
• Barbs, end plugs, caps, stakes and micro-tubing sold separately
• Flow Rate: 2.2 GPH per outlet
• Pressure Compensating Range: 8-80 PSI
• Operating Pressure: 15-50PSI
• Use with 1/8" in. (.187 OD) or 1/4" in. (.150-.160 ID) distribution tubing
• Inlet size: 1/2" in. NPFT
• Filter requirement: 120 mesh
• Body and cover: high impact plastic
• Filter: nylon
• Diaphragm: silicon
• 3" in. W x 2" in. H
