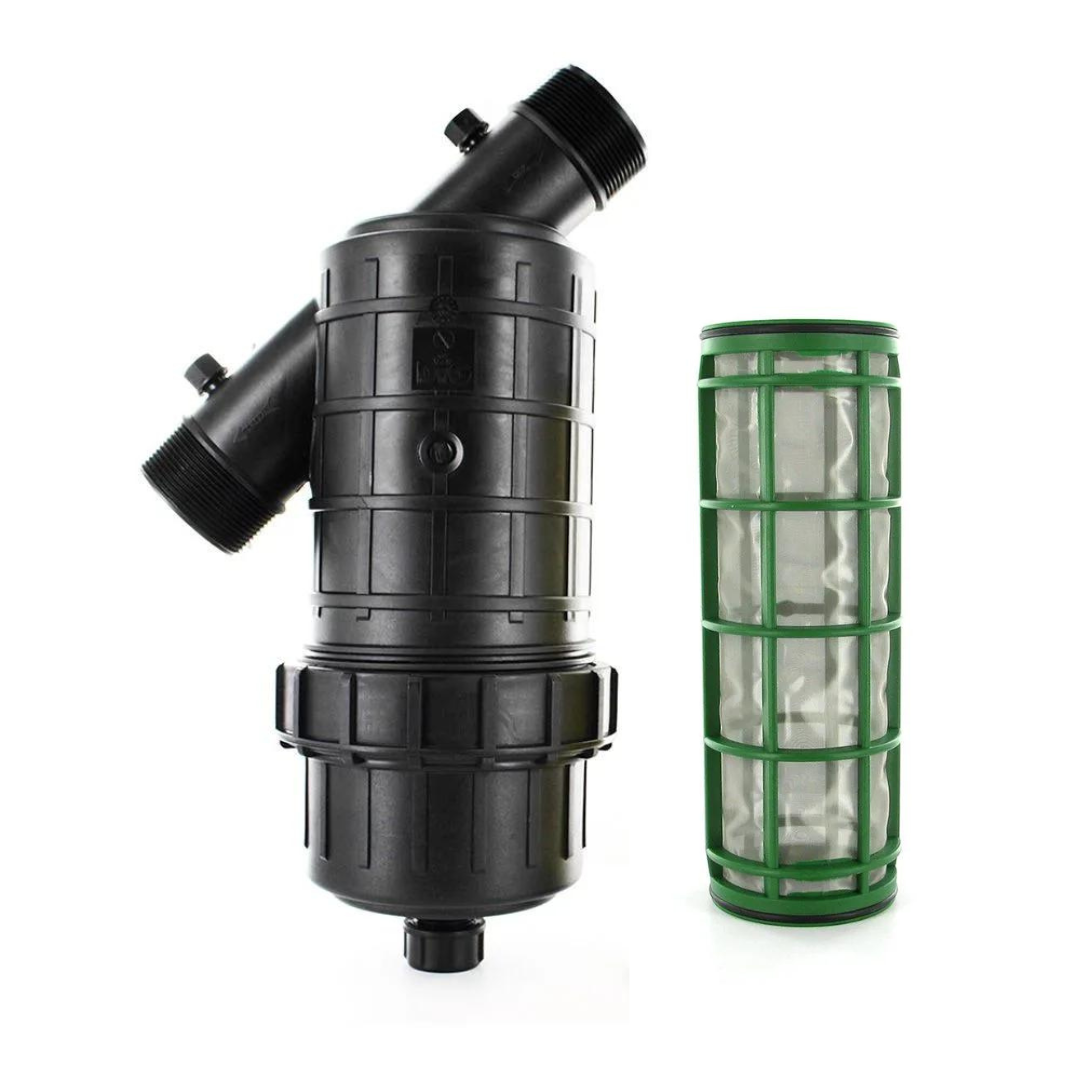

DIG - 2'' MPT Drip Filter w/ Stainless Steel Screen (155 Mesh) - P80-155
DIG - 2'' MPT Drip Filter w/ Stainless Steel Screen (155 Mesh) - P80-155 is backordered and will ship as soon as it is back in stock.
DIG’s 2″ plastic screen filters with pipe thread are commonly used in commercial and agriculture installations to protect drip irrigation, micro sprinklers and other low-flow systems from debris that might enter the line and cause blockage of the emitters. The low-maintenance screen filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro sprinklers.
Specifications
- Flow rates: Up to 66 GPM (20 m3/h)
- Screen filtration area: 85.6 sq. inch (552 cm2)
- Operating pressure: up to 120 PSI (8.4 BAR)
- Temperature range: up to 130°F (54°C)
- Stainless-steel screen: 155 mesh
- Inlet and outlet size: 2" MNPT with 3/4" MPT cap
- Filter Materials
- Housing: polypropylene
- Screen: Stainless steel with polyester body
- O-ring: EPDM
- Pressure testing port: polypropylene
- Pressure testing seals: natural rubber BR
Features
- Large filter area and low friction loss allows long intervals between cleaning
- All-purpose filter with a wide range of stainless-steel screens from 80 to 180 microns to suit a wide range of filtration requirements
- Designed to reduce operating costs and deliver high quality filtrate in a minimum space
- Screens have excellent resistance to most common chemicals
- Easy maintenance – the screen can be extracted from the filter for cleaning
- Interchangeable screen and disc elements within the filter
- Access point on the inlet and outlet side for pressure measurement test
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
