DIG - 2'' MPT Drip Filter w/ Disc Element (150 Mesh) - P80-150D

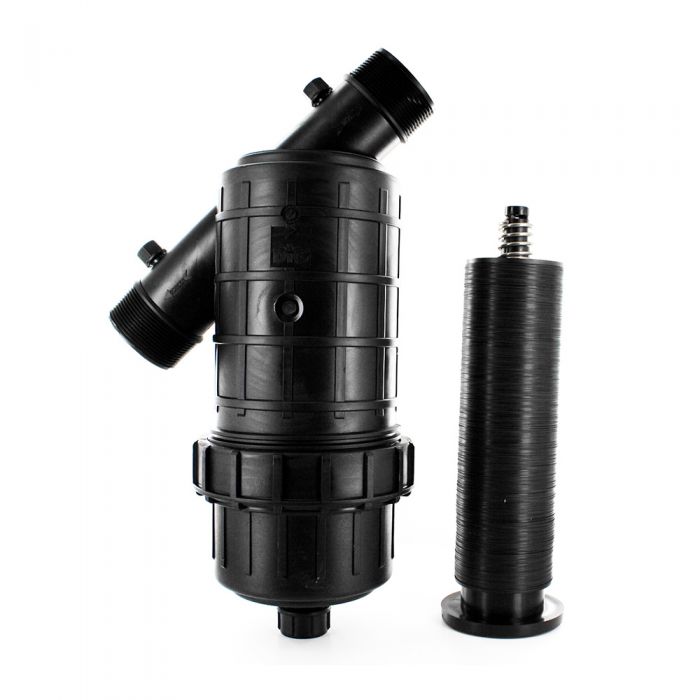

DIG - P80-150D Dig 2"MNPT Filter Preassembled with a 150 mesh disc. (BLACK)

The P80 are compact and cost effective disc filters with outstanding performance and are used in residential, commercial, municipal, greenhouse and nursery irrigation installations. Disc filters reduce operating costs and deliver high-quality filtration using minimum space. The screens and discs can be easily extracted and re-inserted back into the filter body.

Specifications

• 150 Mesh Disc Screen Filter (Black)
• Flow rates: up to 60 GPM (13.6 m3/h)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• Inlet and outlet size: 2" Male Pipe Thread
• Filter and Disc Materials
  • Housing and discs: polypropylene
• O-ring: EPDM
  • Pressure testing ports: polypropylene
  • Pressure testing seals: natural rubber BR
  • Disc cylinder assembly: polypropylene / PBT
  • Spring: stainless steel 304

Features

• Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs and out the middle of the filter
• Disc elements provide in-depth filtration to retain organic matter
• During operation the disc elements are tightly pressed together by pressure and the spring, providing high filtration efficiency
• Discs have excellent resistance to most common chemicals
• Easy maintenance; the discs can be extracted for cleaning
• Interchangeable color-coded discs and stainless-steel screen elements provide a wide range of filtration degrees and options
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

DIG - Replacement Mesh Discs:

• 17-045D - 80 MESH DISC REPLACEMENT FOR 2" FILTERS
• 17-046D - 120 MESH DISC REPLACEMENT FOR 2" FILTERS
• 17-047D - 150 MESH DISC REPLACEMENT FOR 2" FILTERS

Manuals & Literature

• Installation Instructions
• Drip Filters Spec Sheet
