DIG - 150 Mesh Polyester Replacement Filter 3/4" - 1" - 17-434

Designed to be used with the 3/4" and the 1" MNPT XL Filters Models P30 and P31. Series P30/P31 filters provide a reliable, low maintenance solution for the growing demands of any low-volume irrigation application.

DIG -Mesh Disc Replacements for Filter Models P30 and P31

Replacement Disc - 80 Mesh (YELLOW)
Replacement Disc - 120 Mesh (RED)
Replacement Disc - 150 Mesh (BLACK)

DIG 3/4" MNPT XL FILTERS:

DIG 3/4" MNPT XL FILTER with 80 Mesh Disc (YELLOW)
DIG 3/4" MNPT XL FILTERwith 120 Mesh Disc (RED)
DIG 3/4" MNPT XL FILTERwith 150 Mesh Disc (BLACK)

DIG - P31 - 1" MNPT XL FILTERS:

DIG 1" MNPT XL FILTER with 80 Mesh Disc (YELLOW)
DIG 1" MNPT XL FILTER with 120 Mesh Disc (RED)
DIG 1" MNPT XL FILTER with 150 Mesh Disc (BLACK)

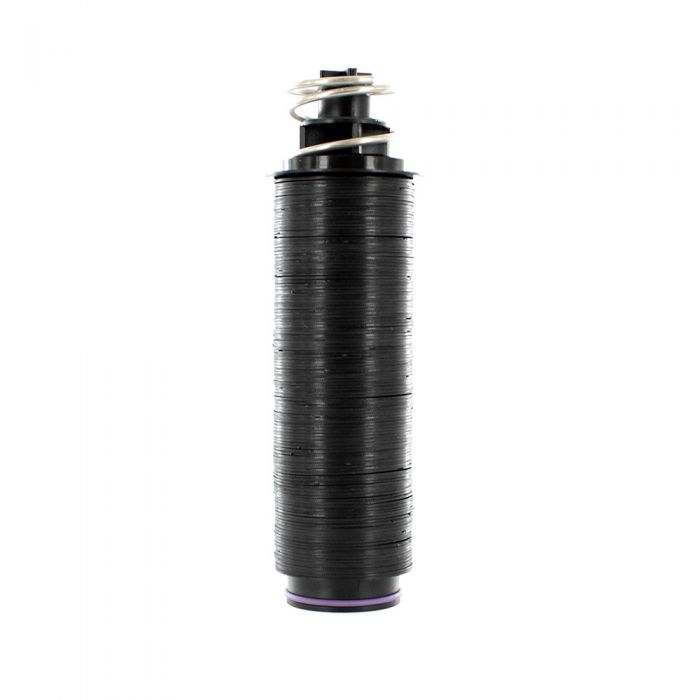

DIG - P17-434 150 Mesh Replacement Disk (black)

• Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs out of the middle of the filter
• Disc elements provide in-depth filtration to retain organic matter
• Discs have excellent resistance to most common chemicals
• Easy maintenance; the discs can be extracted for easy cleaning
• Interchangeable disc and stainless steel screen elements provides a wide range of filtration degrees
• Filter inlet position changes with disc or screen
• Operating Pressure: up to 120 PSI
• Temperature Range: up to 130 degrees farenheit
• 3/4" and 1" MNPT inlet and outlet

Filter Materials:

Housing: Polypropylene
O Ring: EPDM
