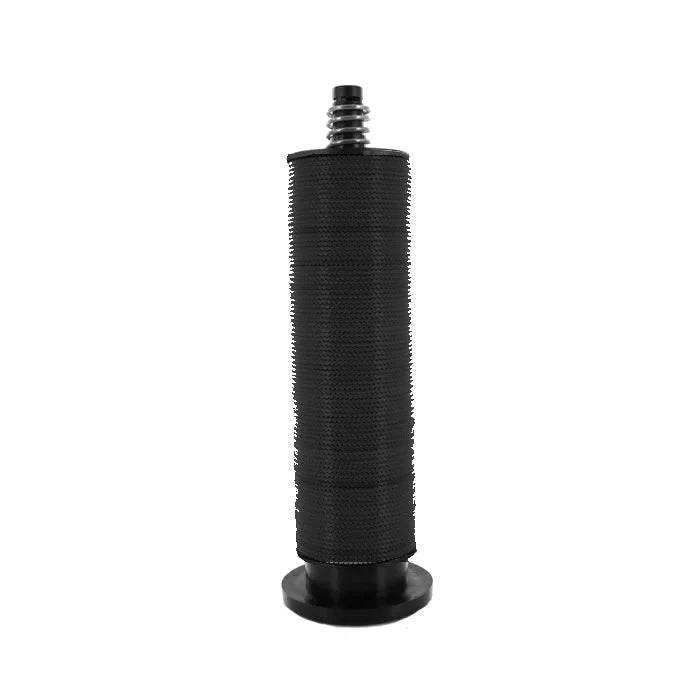

DIG - 150 Mesh Polyester Disc Filter for 1-1/2" Long Filters - 17-043D
Designed to be used with the 1 1/2" P75-150DL filters. The P75 filters provide a reliable, low maintenance solution for the growing demands of any low-volume irrigation application.
DIG - P75 and P80 FILTERS:
DIG P75-080DL 1 1/2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
DIG P75-150DL 1 1/2" MNPT FILTER WITH 150 MESH DISC (BLACK)
DIG P80-080D 2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
DIG P80-150D 2" MNPT FILTER WITH 150 MESH DISC (BLACK)
DIG - Replacement Mesh Discs:
DIG 17-041D 80 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS
DIG 17-043D 150 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS
- Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs out of the middle of the filter
- Disc elements provide in-depth filtration to retain organic matter
- Hydraulic pressure during the filter process causes fastening of the disc and allows for efficient filtering
- Discs have excellent resistance to most common chemicals
- Easy maintenance; the discs can be extracted for easy cleaning
- Interchangeable disc and stainless steel screen elements provides a wide range of filtration degrees
- Operating Pressure: up to 120 PSI
- Temperature Range: up to 130 degrees farenheit
- MNPT inlet and outlet
Filter Materials:
Housing: Polypropylene
O Ring: EPDM
Pressure Testing Ports: Polypropylene
Pressure Testing Seals: Natural Rubber BR
Disc Materials
Grooved Discs: Polypropylene
Disc Cylinder Assembly: PBT
Tightening Spring: Stainless Steel 304
