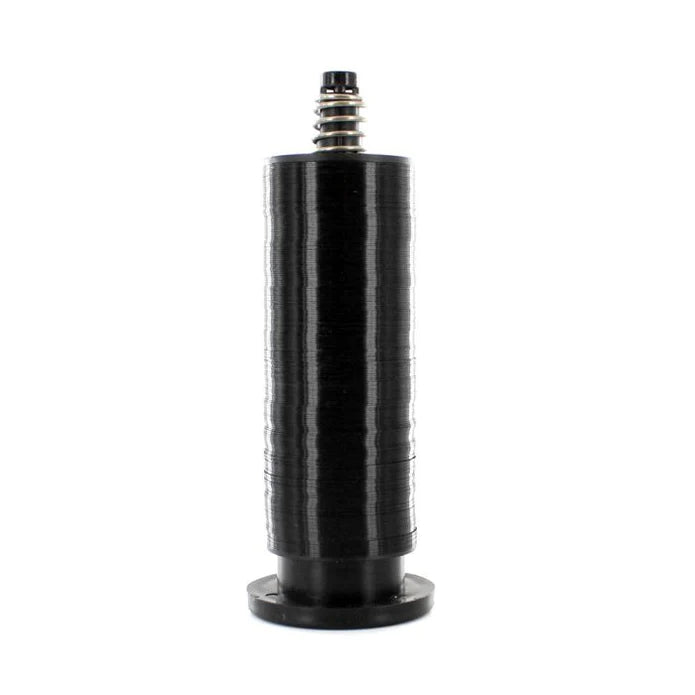

DIG - 150 Mesh Disc Screen for 2" Filters - 17-047D

DIG 17-047D - 150 Mesh Disc Replacement Screen for 2'' Filters (Filter Sold Separately)

Designed to be used with the DIG 2'' filters. The drip filters provide a reliable, low maintenance solution for the growing demands of any low-volume irrigation application. DIG’s disc filters reduce operating costs and deliver high-quality filtration using minimum space. The discs can be easily extracted and re-inserted back into the filter body.

Features

• 150 Mesh Black Disc Screen Element
• Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs out of the middle of the filter
• Disc elements provide in-depth filtration to retain organic matter
• Hydraulic pressure during the filter process causes fastening of the disc and allows for efficient filtering
• Discs have excellent resistance to most common chemicals
• Easy maintenance; the discs can be extracted for easy cleaning
• Operating Pressure: up to 120 PSI
• Temperature Range: up to 130 degrees Fahrenheit

Disc Materials

• Grooved Discs: Polypropylene
• Disc Cylinder Assembly: PBT
• Tightening Spring: Stainless Steel 304

Manuals & Literature

• Spec Sheet
