Ideal use for this model is for ground-cover, flower-beds, and shrubs.The 10/32 thread models can be installed on the 1/2" poly tubing, using#58, semi-rigid riser with barb, or raised above the ground with a #68,spike assembly.

07-023 (red): 360 degrees

07-024 (blue): 180 degrees

07-025 (black): 360 degrees

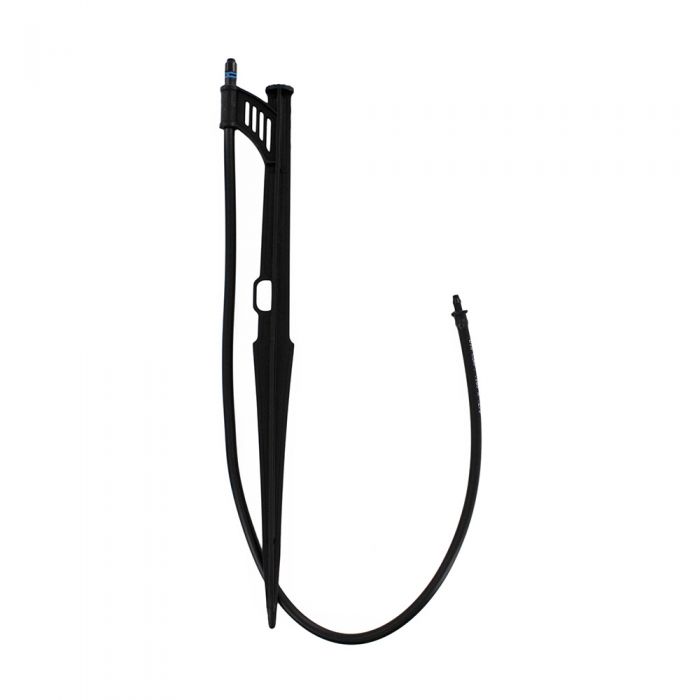

• Jet spray on spike with 24" of distribution tubing
• Color coded heads signify various spray patterns
• Constructed of UV resistant plastic material

• Flow Rates: 14GPH
• Operating Pressure: 15-30PSI
• Wetting Diameter: up to 12'
• Pattern: 90, 180 & 360 degrees
• Nozzle Size: .031"
• Filter Requirement: 120 Mesh
