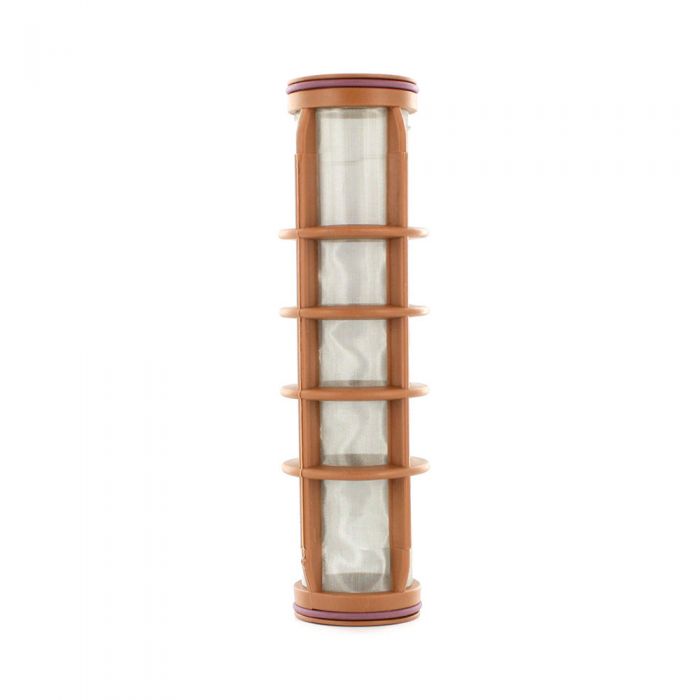

DIG 17-413 - 120 Mesh Stainless Steel Replacement Screen for 3/4'' or 1'' Filters (Filter Sold Separately)

Designed to be used with the DIG 3/4'' or 1'' filters. The drip filters provide a reliable, low maintenance solution for the growing demands of any low-volume irrigation application. DIG’s screen filters reduce operating costs and deliver high-quality filtration using minimum space. The screens can be easily extracted and re-inserted back into the filter body.

Features

• 120 Mesh Stainless Steel Screen Element - Brown
• Screens can retain large amounts of sediment that accumulate on the screens’ inside surface
• Screens can be easily removed for maintenance and cleaning
• Color-coded replacement screens for easy identification
• Screens have excellent resistance to most common chemicals
• Operating Pressure: up to 120 PSI
• Temperature Range: up to 130 degrees Fahrenheit

Chemical Resistance

• Excellent resistance to most mineral acids
• Limited resistance to alkali depending on concentration and temperature
• Excellent resistance to low concentration of lye
• Screen Materials
  • Cylinder: polyester
  • Screen: stainless steel 304
  • O-ring: EPDM

Manuals & Literature

• Spec Sheet
