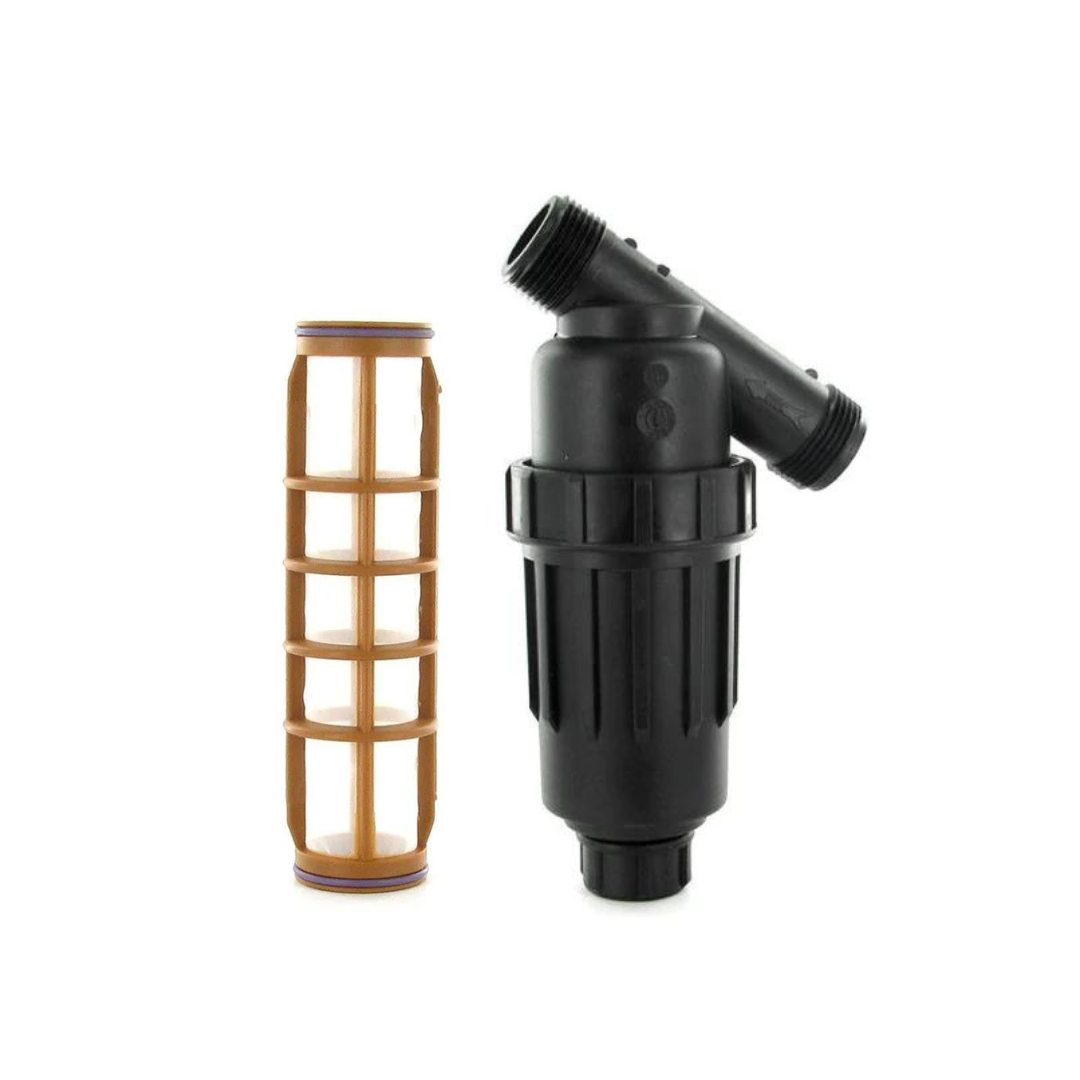

DIG’s heavy-duty plastic screen filters with pipe thread are commonly used in residential and commercial installations to protect a drip irrigation system from debris that might enter the line and cause blockage of the emitters. The low maintenance, inexpensive screen filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro sprinklers.

Specifications

• Flow rates: Up to 18 GPM (4.9 m3/h)
• Screen filtration area: 14.9 sq inch (96 cm2)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• 120 Mesh Polyester screen
• Inlet and outlet size: 1" MNPT with 3/4" FHT cap
• Materials:
  • Housing: polypropylene
  • O-ring: EPDM
  • Pressure testing port: polypropylene
  • Pressure testing seals: natural rubber BR

Features

• All-purpose filter with a 120 mesh polyester screen
• Screens have excellent resistance to most common chemicals
• Color-coded replacement screens for easy identification
• Large filter area and low friction loss allows long intervals between cleaning
• Flush cap for easy flushing of particles trapped in the bottom of filter.
• Recommended to be installed and used after the control valve.
• Easy maintenance – the screen can be extracted from the filter for easy cleaning
• Interchangeable screen and disc elements
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Chemical Resistance

• Excellent resistance to most mineral acids
• Limited resistance to alkali depending on concentration and temperature
• Excellent resistance to low concentration of lye
• Screen Materials
  • Cylinder: polyester
  • Screen: polyester
  • O-ring: EPDM

Manuals & Literature

• 3/4'' & 1'' Drip Filter Product Brochure
