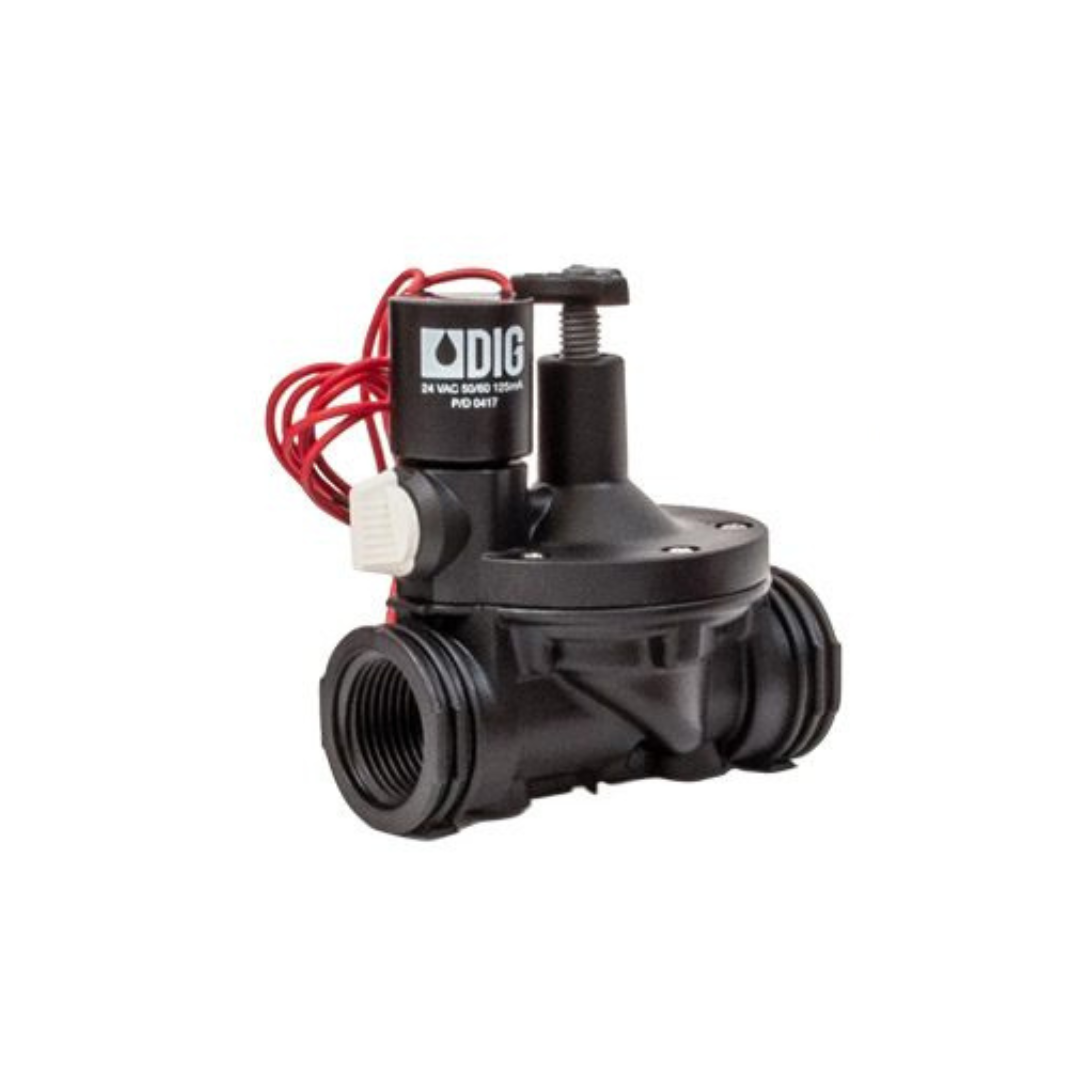

DIG - 1" In-line Valve w/ Flow Control & 24 VAC Solenoid - 33-015

1″ In-line AC valve with Flow Control

DIG's 1'', 24VAC heavy-duty plastic inline control valves are designed for reliable operation with superior hydraulic performance. The plastic control valves demonstrate exceptional performance for optimal control of any irrigation system, featuring a flow control handle for flow adjustment and an internal manual opening via the solenoid for smooth opening and closing. The 24 VAC plastic control inline valves are suitable for above- or below-grade installation in residential and commercial applications.

Specifications

• Body Style: inline (globe) valve
• Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
• Valve size: 1" FNPT
• Operating flow range: 0.2 to 35 GPM (0.45 to 8 m3h)
• Solenoid: 24 VAC (50 -60 cycles)
  • Current: .032A (7.7 VA)
  • Holding Current: 0.16A (3.84 VA)
  • Power Consumption: 1.7/2.2 watts
• Material:
  • Body: glass-reinforced nylon
  • Bonnet: glass-reinforced nylon
  • Solenoid: glass-reinforced nylon
  • Spring and pins: Stainless steel
  • Diaphragm: Nylon fabric reinforced polyisoprene (NR)
• Dimensions:
  • 4.5" H x 4.25" L x 3.12" W, (11.5 cm H x 11 cm L x 8 cm W)
  • Valve solenoid thread housing: 3/4"-20 UNES-2A

Features

• Constructed of a UV-resistant, glass-reinforced nylon bonnet with a stainless steel spring and non-corrosive materials
• High flow with low pressure loss
• Operates in a wide range of flow rates
• Normally closed
• Flow control handle for water flow adjustment and manual shutoff
• Manual or automatic operation
• Flow-control adjustment - can be used to reduce sprinkler over-spray
• Smooth valve opening and closing prevents pressure surge hazards
• The valve's only moving component is its diaphragm with no shaft, seals, or bearings within the water passage
• Unobstructed flow path for higher flow rate with lower head loss
• Highly durable to chemical use with an irrigation system
• Flexible balanced diaphragm and seal
