DIG - 1 GPH Pressure Compensating Drip Emitter - PCO-010

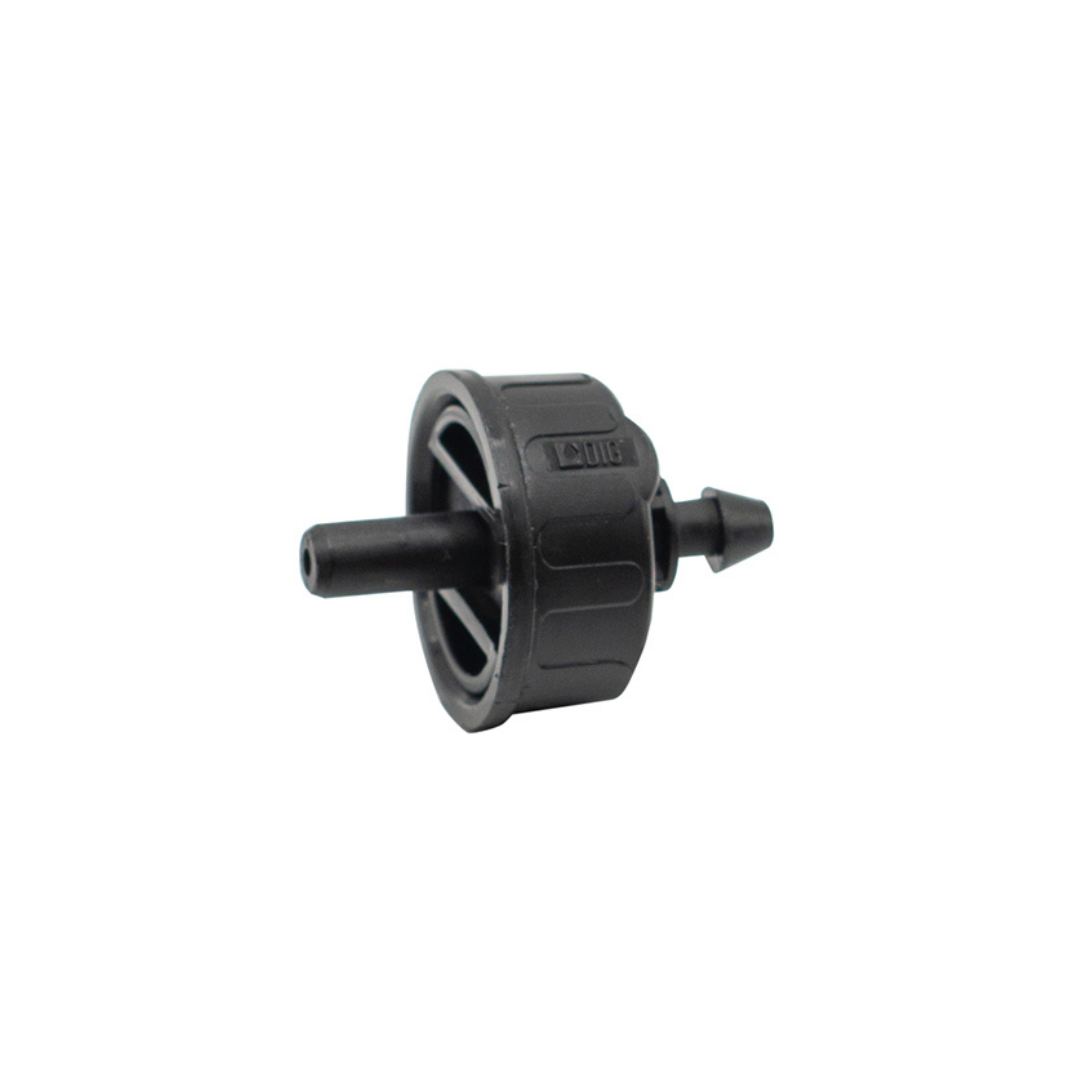

1 GPH Pressure Compensating Button Drip Emitter

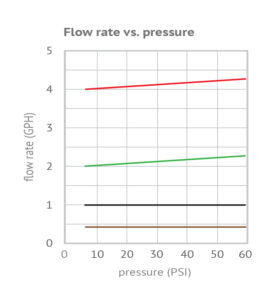

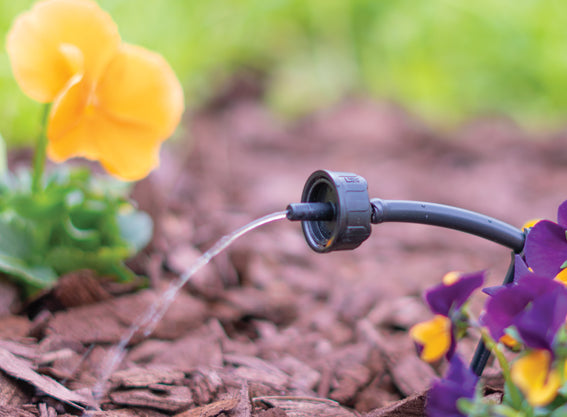

DIG Pressure Compensating (PC) Button Drip Emitters are designed to produce a consistent flow rate over a pressure range of 7.25 to 58 PSI. DIG PC drip button emitters are continuously adjusting to varying water pressures, ensuring a constant flow from each drip emitter regardless of pressure fluctuations or varying elevations along the line. Used for flowers, shrubs groundcovers and trees, DIG PC drip emitters offer a convenient way to water both, new and existing landscapes, including difficult terrain such as slopes, oddly shaped areas and sites with high winds.

Specifications

• Flow rate and color code:
  • 1 GPH (4 L/H) Color Code - Black
• Operating pressure: 7.25 - 58 PSI (.5 - 4 BAR)
• Inlet size: 1/4" (4 mm) barb

• Outlet size: 1/4" nipple
•  Filter requirement:
  • 150 mesh/100 microns for 1 GPH (3.8 L/H) or higher
• Filter selection depends on water quality and concentration of dirt particles
• Materials:
  • Body and cover: polypropylene
  • Diaphragm: silicone

Features

• Labyrinth water passage with a floating silicon diaphragm design provides a self-cleaning mechanism at the water outlet
• Barbed inlet for installation into drip tubing or 1/4″ distribution tubing
• Male nipple outlet for a placement of multi-outlet adapter or bug caps
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
• Available in four color-coded flow rates for easy identification
• Pressure compensation enables the use of longer laterals with smaller diameter tubing
• Ideal watering solution for long laterals, rapid irrigation cycles, and for light soils
• Outlet can be connected into 1/8″ micro tubing with a stake for branching from the main line or lateral
• Unaffected by fluctuating inlet water pressure
