DIG - 1 GPH Flag Drip Emitter - 06-009

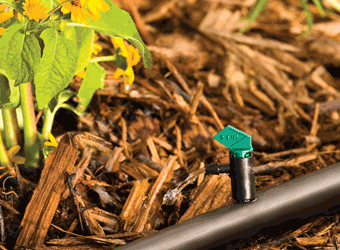

1 GPH Flag Drip Emitter

The flag drip emitters have a side barbed outlet for extending 1/4" distribution tubing to the plant location. These spiral flow emitters feature a two-piece construction so that the top insert can be twisted and pulled apart for easy cleaning, and they have a recommended operating pressure of 10-20 PSI with a nominal operating pressure of 15 PSI.

Specifications

• Flow rate and color code:

  • 1 GPH (4 L/H) Color Code - Black
• Operating pressure: 10-20 PSI (.7-1.4 BAR)

• Inlet side: 1/4" self-tapping barb
• Outlet side: 1/4" barb
• Filter requirement: minimum of 150 mesh
• Material: body and cover: polypropylene

Features

• Self-tapping barbed inlet for easy installation

• Outlet barb for use with 1/4" (.150"-.160" ID) distribution tubing

• Twist-open top with lock for secure operation under pressure and for easy cleaning

• Available in three colors for easy flow-rate identification

• Spiral flow through a large-flow-path water passage reduces likelihood of clogging

• Durable high-impact plastic

• Resistant to chemicals and fertilizers used in landscape application

• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

*Based on around 90% flow uniformity and 0% slope
