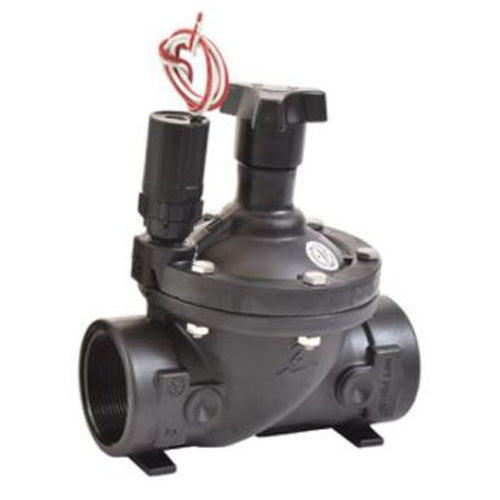

DIG - 1 1/2'' In-Line Valve w/ Flow Control & DC Latching Solenoid - 305DC-150

1 1/2″ Inline DC Valve for use with 720A, 740A, 760A and LEIT-1 controllers

DIG’s 305DC-150 series plastic inline globe valves with a 6-12 VDC, two-way magnetic latching solenoid operate with DIG’s battery operated controllers and LEIT. The globe valves use an encapsulated, watertight, two-way magnetic latching solenoid that requires minimal power to operate. The 305DC-150 are heavy-duty control valves constructed of weather-resistant, glass-reinforced nylon and a stainless steel spring to provide superior hydraulic performance with balanced opening and closing at a pressure rate of up to 150 PSI.

Specifications

• Type: Globe valve with two-way magnetic latching solenoid
• Operating pressure: 10 to 150 PSI, (.7 to 10.5 bar)
• 1 1/2" NPT female inlet and outlet
• Operating flow range: 20 to 132 GPM (4.5 to 30 m3h)
• Solenoid: 6 -12 VDC, two-way magnetic latching, normally closed, bidirectional pulse
  • Voltage rate: 6 -12 VDC
  • Coil Resistance: 4.7Ω +/- 0.3
  • Pulse Width: minimum 10 mSec
• Operation mode:
  • Red + and white – latch to open
  • Red – and white + released to closed
• Control orifice: 0.65 +/- 0.0002 (1.7 mm)
• Lead wires: 18” (45 cm) UL 1015, AWG 16, 300V - red and white wires
• Temperature range: up to 150 Fahrenheit (0-65 C)

Features

• Constructed of glass-reinforced nylon with a stainless steel spring; non-corrosive materials
• High flow with low pressure loss
• Normally closed
• Easy inline maintenance
• Smooth valve opening and closing prevents pressure surge hazards
• Rugged, reinforced self-cleaning diaphragm provides reliable operation even with contaminated water
• Flow control handle for water flow adjustment and manual shutoff
• Manual internal bleed override via the solenoid

Dimensions

• Valve dimension: 1 1/2": 7.12" H x 6.12" L x 5.75" W, (18 cm H x 16 cm L x 14.5 cm W)
• Solenoid dimension top: 3.1" (7.9 cm) L X 1.18" (3.0 cm) D
• Solenoid dimension bottom: 3.1" (7.9 cm) L x 1.18" D (3.0 cm)
• Valve solenoid thread housing: 3/4”-20 UNES-2A
• Adapter thread: 11/16”-12 UN female thread X male ¾”-20male thread
• Solenoid thread: 11/16”-12 UN
• Material:
  • Valve body and cover: Glass reinforced nylon
  • Diaphragm: Nylon fabric reinforced polyisoprene (NR)
  • Metal parts and screws: Stainless Steel 303 and 430F
  • Solenoid body: Glass reinforced nylon
  • Solenoid plunger rubber cap: EPDM 80
