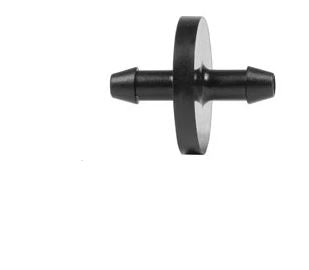

DIG - 1 GPH In-line Drip Emitter - 06-037

The Inline Drip Emitters offer installation simplicity using 1/4" distribution tubing. They can be used with 1/4" distribution tubing as the main line for pots, baskets, planter boxes, containers and for low-pressure gravity feed systems. Install the drip emitters as needed in any spacing with the 1/4" distribution tubing as the main line.

Product specifications

• Operating pressure range: 5 to 25 PSI
• Recommended operating pressure: 10 to 25 PSI
• Flow rate and color code:
  • 1 GPH Color Code - Black
• Inlet side: 1/4" barb
• Outlet side: 1/4" barb
• Filter requirement: minimum of 150 mesh
• Material: polypropylene

Features

• Color-coded to easily identify flow rate
• Can be installed where desired along the 1/4" distribution tubing
• Ideal for a loop-type layout
• Uniform flow rate at low pressure

• 1/4" barbed inlet and outlet for installation into 1/4" micro tubing
• Resistant to chemicals and fertilizers used in landscape applications
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Flow rate in gallon per hour @ 5 to 30 PSI

5 PSI - .57
10 PSI - .81
15 PSI - .98
20 PSI - 1.15
25 PSI - 1.21
30 PSI - 1.41
