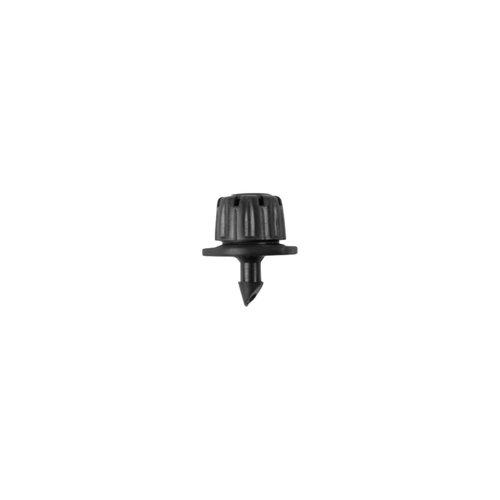

DIG - 180° Adjustable Drip Emitter on 1/4'' Barb (0-10 GPH) - 06-002

DIG's 180° and 360° adjustable drip emitters are available with a barb or spike and have a flow dial enabling the flow to be adjustable between 0 to 14.1 GPH at 25 PSI. The drippers are designed to emit a very low-flow, gentle stream pattern with a diameter range of 0 to 2.3' at 25 PSI.

Features

• Click adjustment from flow off to full flow "“ perfect as the plant grows and its need for water changes
• 180° pattern for individual plants or closely spaced plantings
• Recommended for planter boxes, large pots, groundcovers and shrubs
• Rotation of the cap allows adjustment of flow and diameter of throw down to a complete shut-off via a ratchet mechanism on the cap and a notch on the base
• Efficient and reliable method for applying water
• Trouble-free operation with no moving parts
• Removable cap for easy cleaning
• Constructed of UV-resistant, durable plastic material

Specifications

• 180° coverage

• Flow rates and color:
  • Adjustable from 0-14.1 GPH (0-53 L/H) @ 25 PSI
  • Color code: black

• Recommended Operating pressure: 15-25 PSI (1-1.72 BAR)

• Maximum operating pressure: up to 30 PSI
• Wetting area: 0 to 2.3' at 15 to 25 PSI
• on 1/4" barb

• Filter requirement: minimum of 120 mesh
