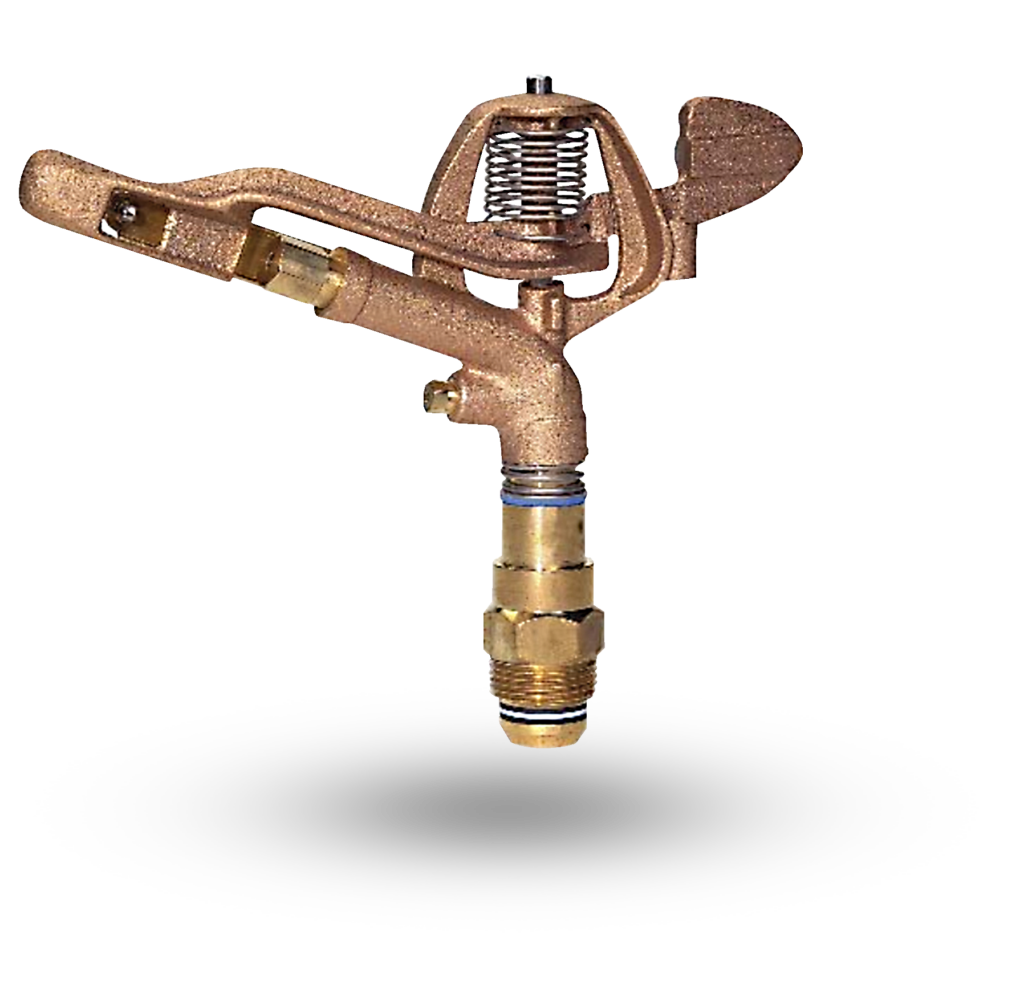

Buckner - 350SAX16PG - 1'' Full Circle Brass Impact Sprinkler MPT

Buckner 350SAX16PG - 1'' Full Circle MPT Brass Impact - 23° trajectory - #16 Drive Nozzle with Plugged Filler Nozzle

Designed for agricultural use in solid sets, hand lines, side rolls, hose reels and landscape irrigation situations requiring large area coverage. The 350 series can also be used in the mining, logging and waste water treatment industries.

Specifications

• 1″ Male NPT Inlet (National Pipe Thread)
• #16 - 1/4'' Drive Nozzle Size with Filler Nozzle Plug Pre-Installed (Other nozzle sizes available but not stocked, please email contact@cheapsprinklers.com to order with different range nozzles)
• Drive Nozzle Thread: 5/8” - 18 UNF
• Filler Nozzle Thread: 3/8” - 24 UNF

Operating Ranges

• Pressure: 40 to 80 PSI
• Flow: 10.94 to 18.64 GPM
• Throw Radius: 54 to 71 FT
• Trajectory: 23°
• Rotation: Full Circle

Performance w/ Single #16 Nozzle and Filler Nozzle Plug

Features & Benefits

• Solid brass construction
• Stainless steel springs, spindle and fulcrum pin
• “Sure Seal®” sand load bearing assembly
• Chemical-resistant bearing seals promote longer lifespan
• Adjustable diffuser pin
• Stream straightening vane standard
• 23° angle of trajectory
• Dual or Single nozzle options (please email contact@cheapsprinklers.com for dual or other nozzle options)

Additional Information

• 350SAX Product Page

Other Throw Radius Nozzle options (49'-84') are available for this product with dual nozzle options. If you need another nozzle besides the #16 Single Nozzle with Plug pre-installed option, then please email contact@cheapsprinklers.com for a quote and availability.
