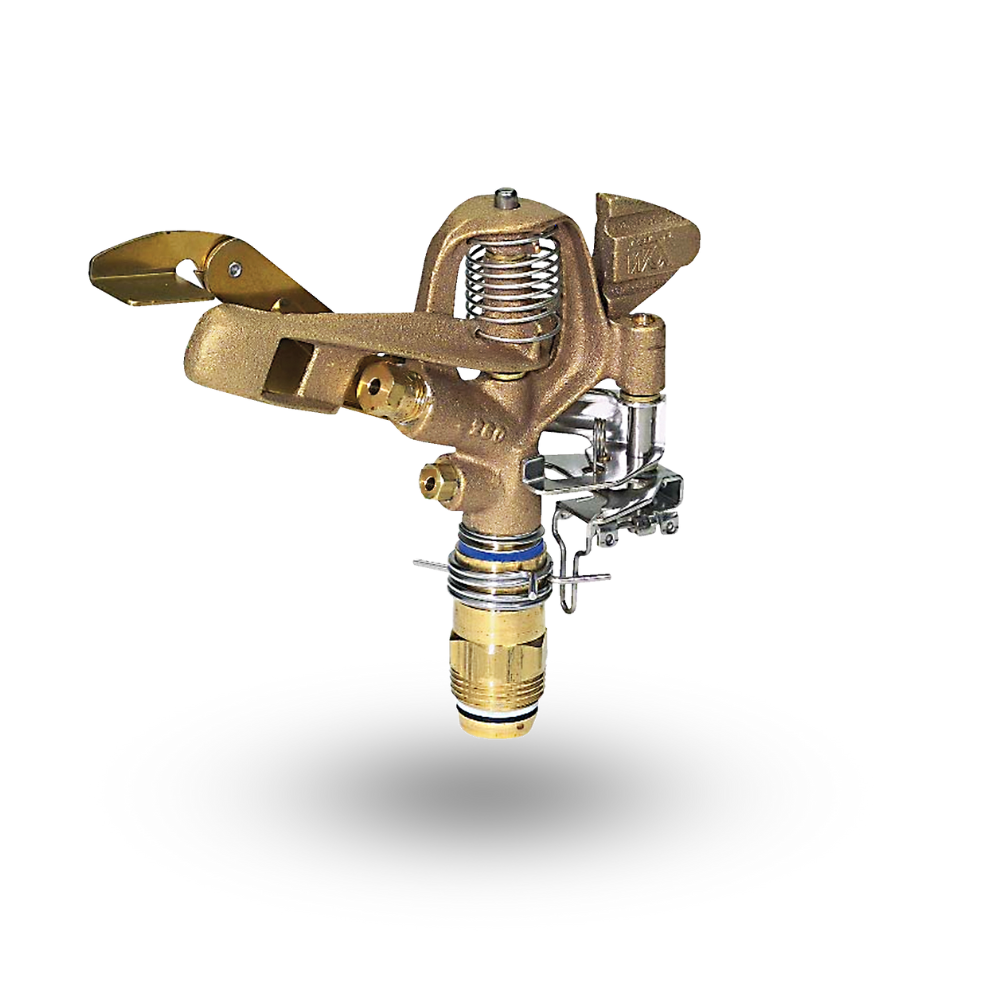

Buckner - 261SDX1206 - 3/4'' Full/Part Circle Dual Nozzle Brass Impact Sprinkler MPT

Buckner 261SDX1206 - 3/4'' Full/Part Circle MPT Brass Impact - 25° trajectory - Dual #12 Drive Nozzle with #06 Filler Nozzle

Designed for use in large landscape/turf  irrigation, dust control, nurseries and general purpose use.

Specifications

• 3/4″ Male NPT Inlet (National Pipe Thread)

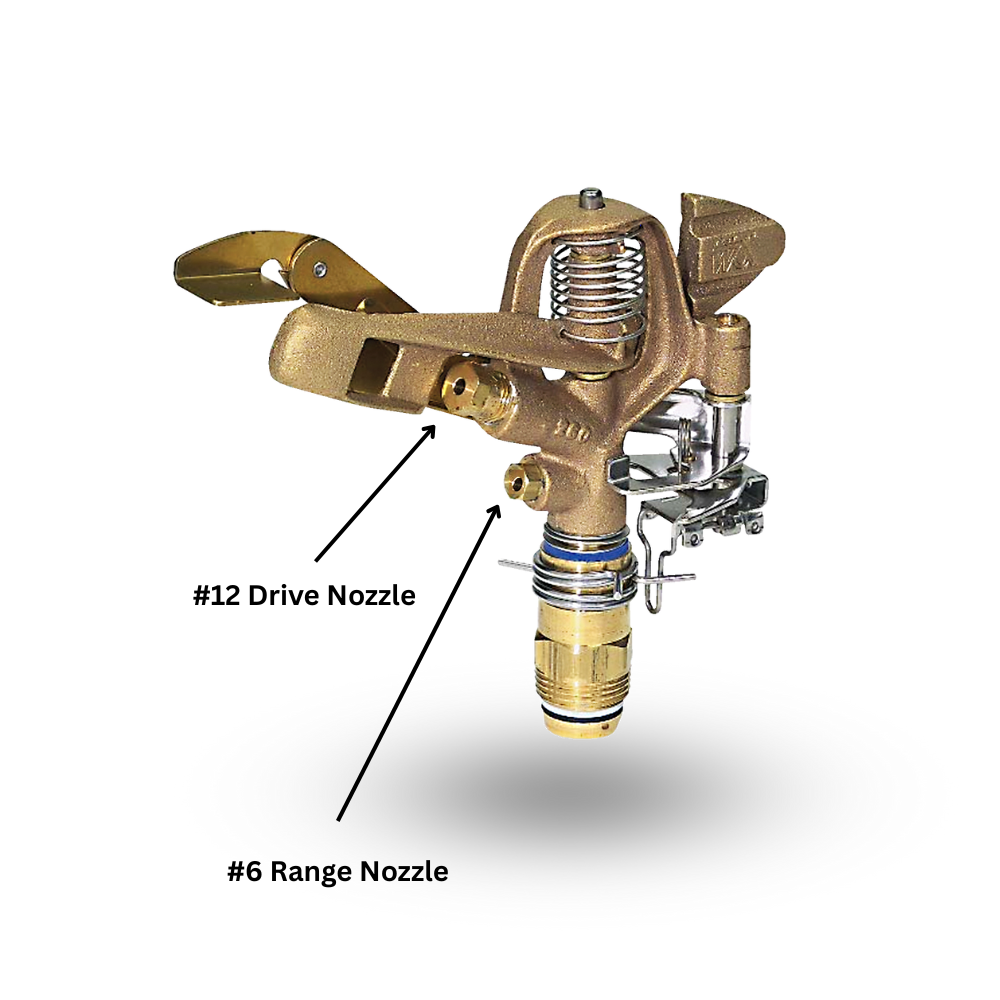

• #12 - 5/32'' Drive Nozzle Size with #06 Filler Nozzle Pre-Installed (Other nozzle sizes available but not stocked, please email contact@cheapsprinklers.com to order with different range nozzles)
• Drive Nozzle Thread: 1/4” - 18 NPT
• Filler Nozzle Thread: 3/8” - 24 UNF

Operating Ranges

• Pressure: 30 to 60 PSI
• Flow: 6.57 to 9.47 GPM
• Throw Radius: 43 to 48 FT
• Trajectory: 23°
• Rotation: 20° to 340° or Full Circle

Performance w/ Dual #12 Nozzle and #06 Filler Nozzle

Features & Benefits

• Solid brass construction
• Stainless steel springs, spindle, and fulcrum pin
• “Sure Seal®” sand load bearing assembly
• Anti-backsplash arm
• Adjustable diffuser pin
• Adjustable deflector plate
• Chemical-resistant bearing seals promote longer lifespan
• Stream straightening vane standard
• 25° angle of trajectory
• Dual or Single nozzle options (please email contact@cheapsprinklers.com for dual or other nozzle options)

Additional Information

• 261SDX Product Page

Other Throw Radius Nozzle options (41'-50') are available for this product with dual nozzle options. If you need another nozzle besides the #10 Single Nozzle with Plug pre-installed option, then please email contact@cheapsprinklers.com for a quote and availability.
