Brilliance Relay - Control Landscape Lighting with One Timer

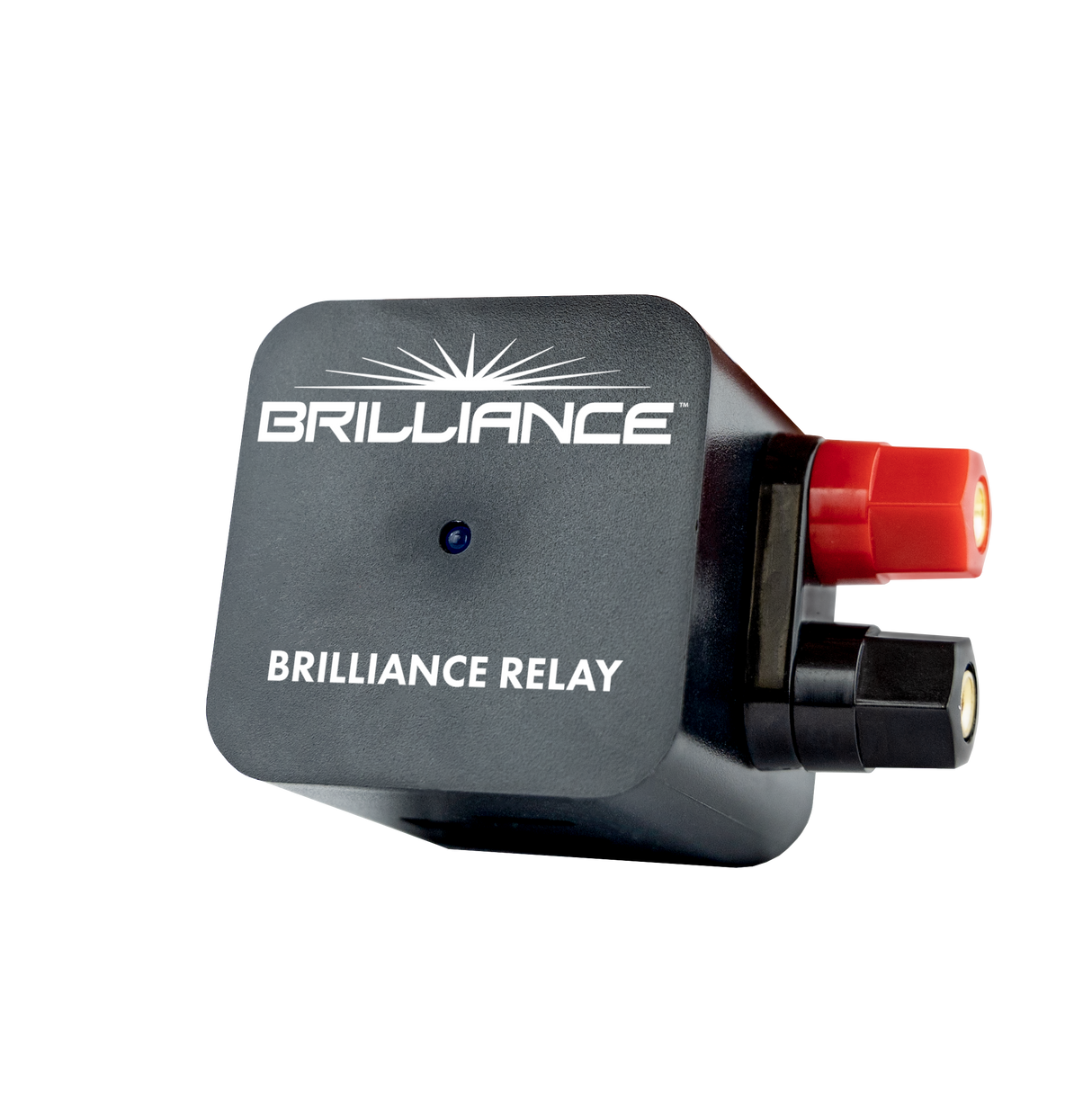

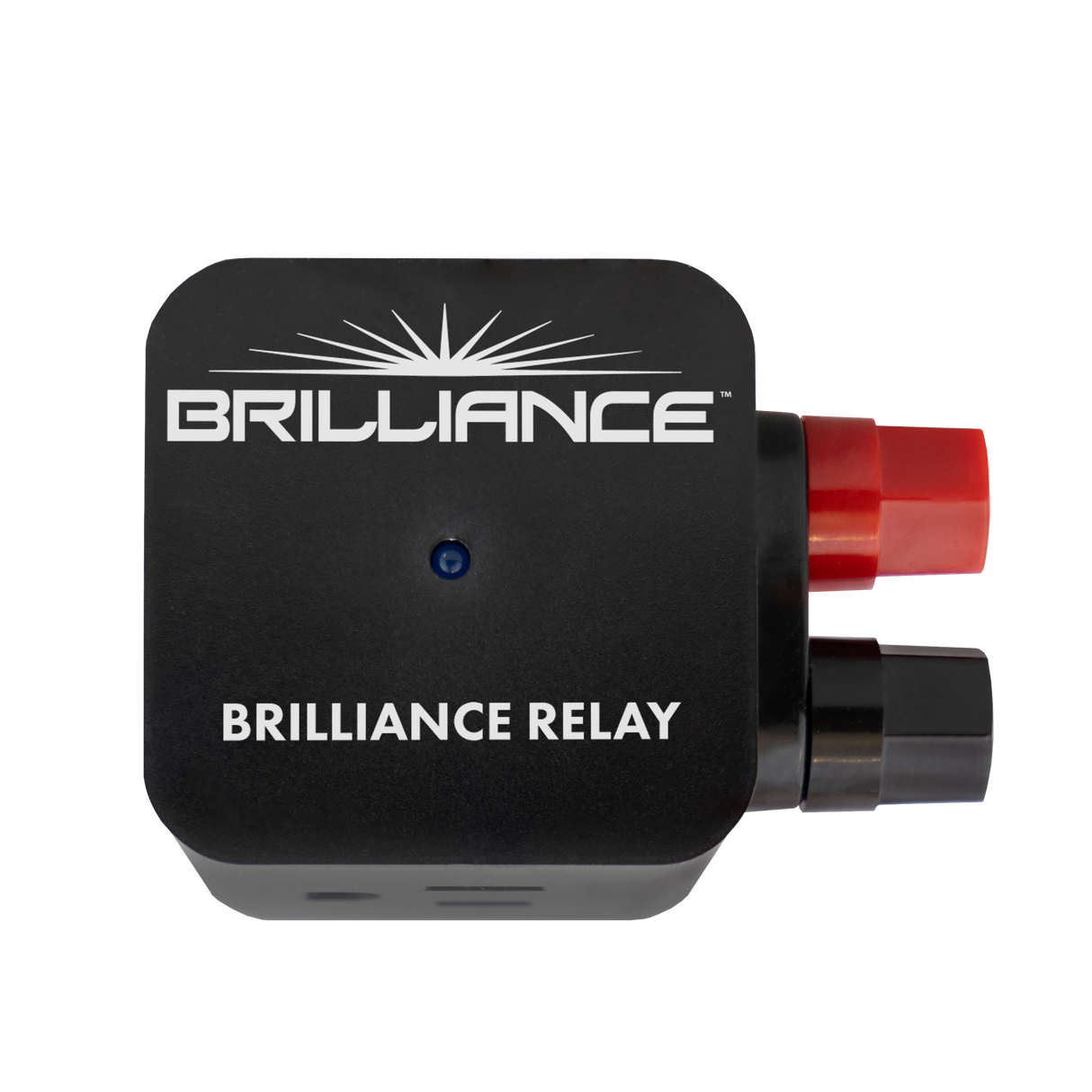

The Brilliance Relay is a switch that allows you to control another landscape lighting transformer down the line with a single timing device, like a photocell or a Brilliance Smart Socket 3.0. You can use as many Brilliance Relays as needed in a system, and all the Relays in the system use the same initial timing device. This is helpful when you need to synchronize multiple transformers to operate at the same time. The 12-15 VAC connection activates the on/off function of the Relay device.

FEATURES:

• Designed specifically for landscape lighting transformers
• Plugs directly into 120 VAC outlet
• Ensures the entire system is timed the same since they all use the same timing device
• Conformal coating circuits protect against the elements
• ETL Listed in US and Canada
• Easy access to instruction via QR code on top

Specifications

• Input Voltage: 120 VAC
• Frequency: 50/60 Hz
• Operating Range: 32°F to 131°F
• Capacity: 10 Amps
• Minimum Load: None
• IP: 50
• Warranty (years): 3
• Wattage: 1200W

TECHNICAL REQUIREMENTS:

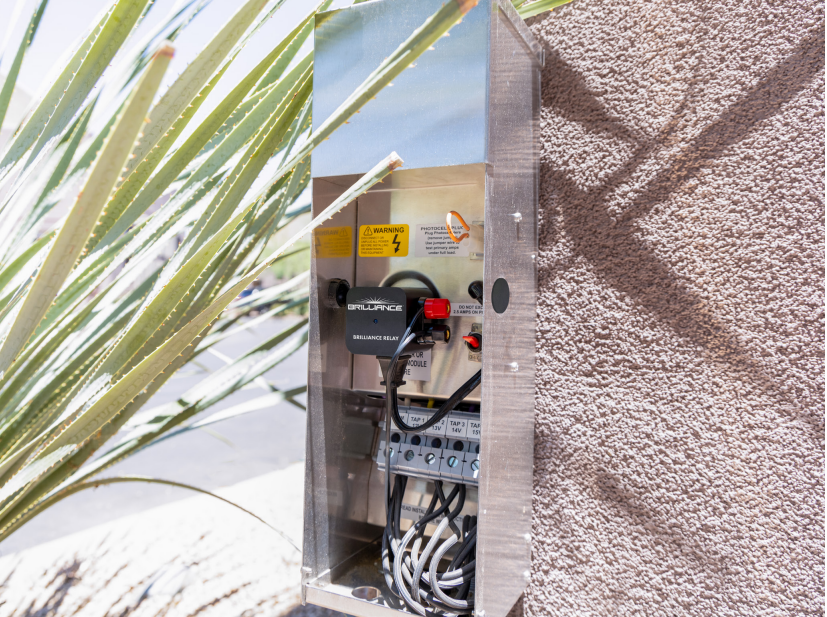

For indoor use or use in an electrical enclosure, such as a transformer or a junction box. Directly plug in with the main supply. See the Brilliance Relay Product and Installation Guide for more information.

Downloads:

• Product + Installation Guide
• Relay Flyer
