Brilliance - 48' Line Voltage Bistro String Light Kit - LINE-VOLTAGE-BISTRO-STRING-KIT

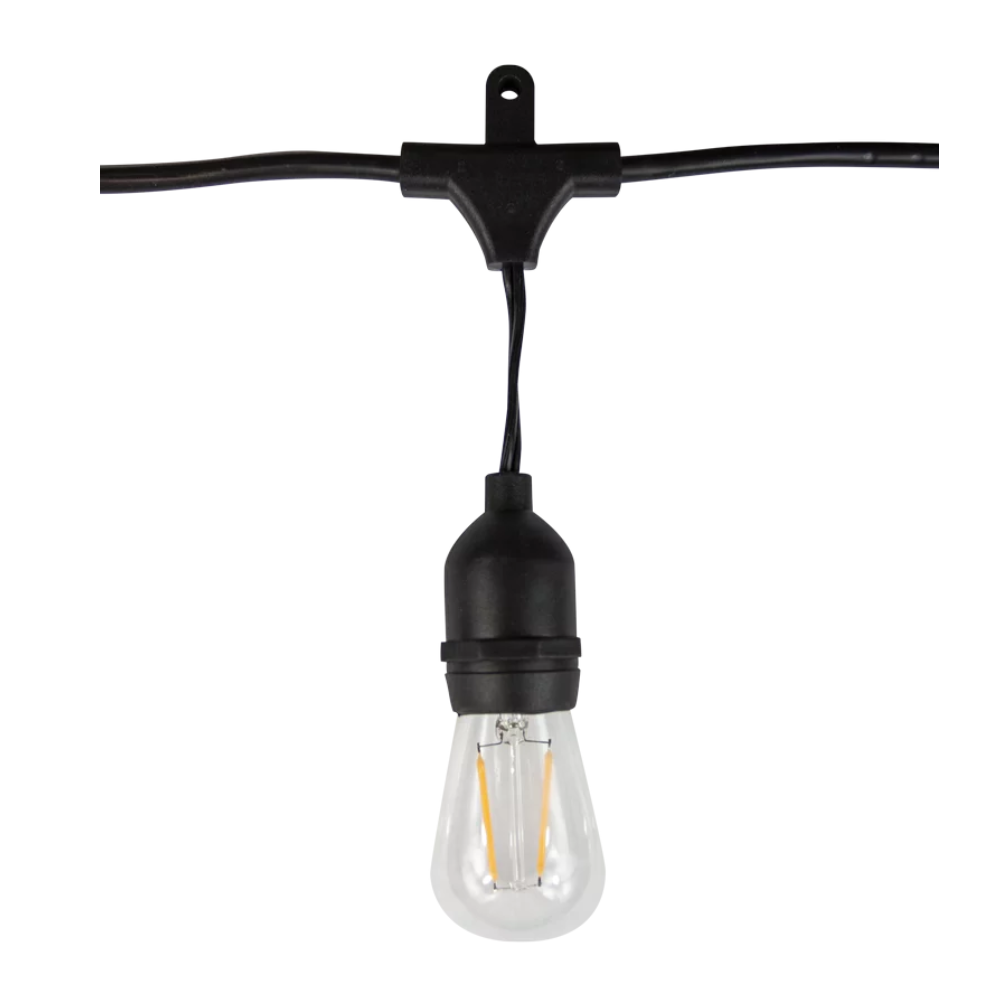

Line Voltage LED Bistro String Light, 48' Length, 120VAC, 24 x S14 lamps (2.5Watt, 2700K), 2-way Mounting Holes

• Bulbs Included (24 x S14 2.5W, 2700K)

• Connection points weather sealed, Outdoor Ready

Line Voltage Bistro String Kit Features

• Operating Range: 120 VAC

• Total Length: 48 ft
• String Lead Length: 15 in. on both ends

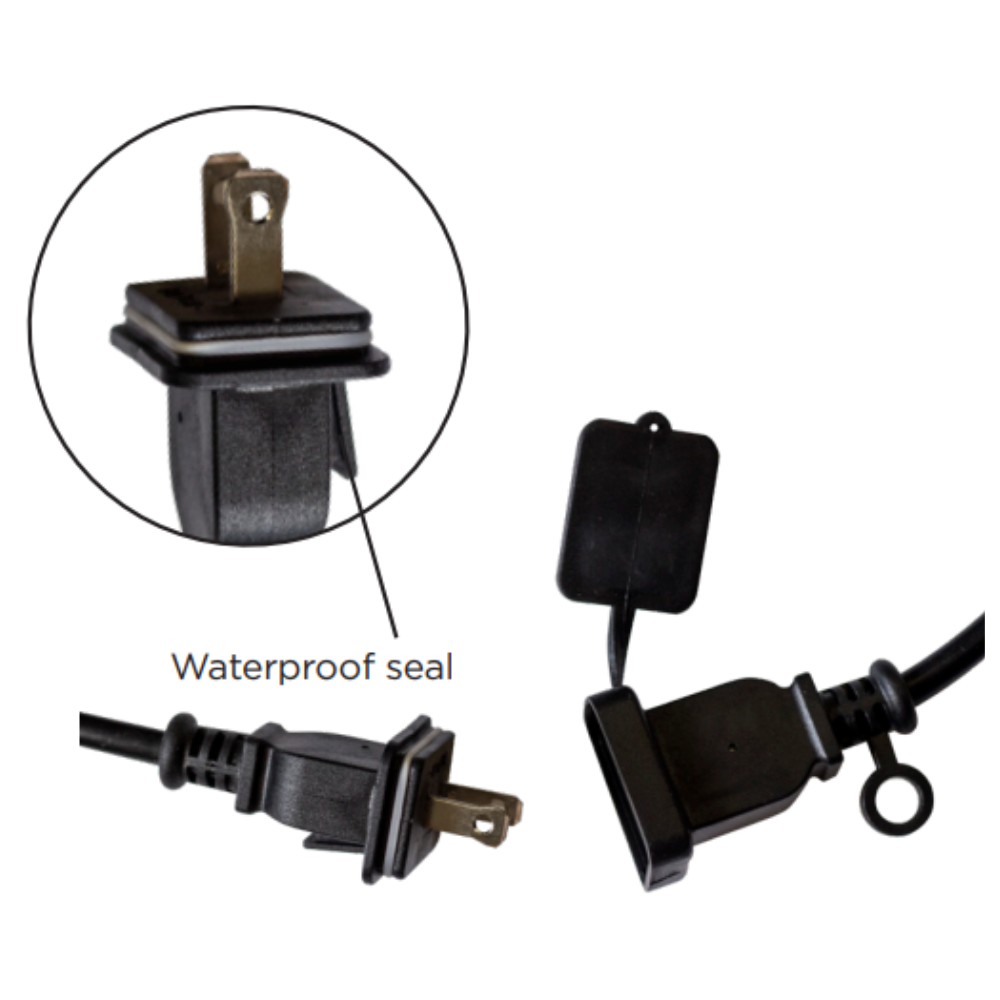

• String features a waterproof seal
• Lamp Positions: 24

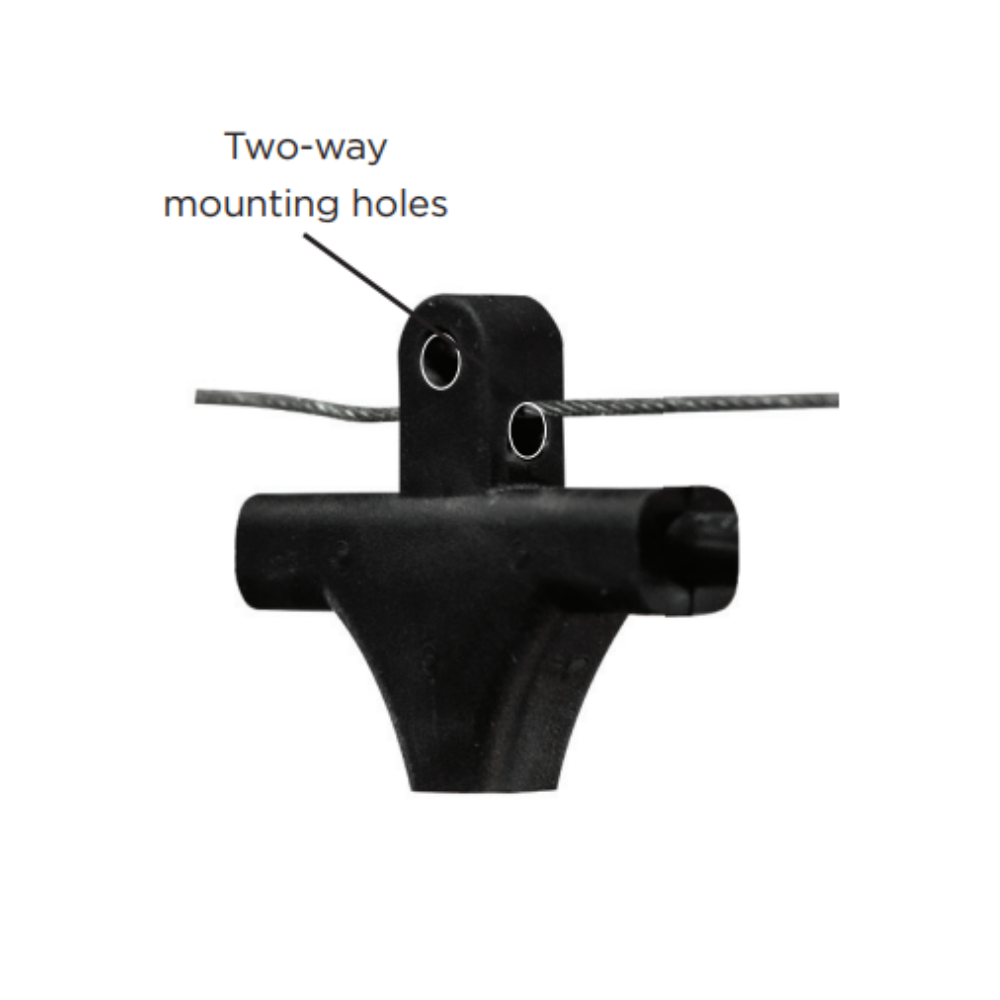

• Two-way mounting holes at each lamp position eliminate the need for zip ties and creates a more secure installation for the life of the string lights

• The Brilliance S14 Edge Filament is designed specifically for use in open outdoor fixtures where precision lighting and high color rendering is desired. Dimmable with a Line Voltage Dimmer. (Sold Separately)
• Warranty: 2 Years

Kit Includes;

• 24 x S14 Filament Bulbs (2.5 Watt, 2700K)
• 48' Bistro String
• 2 Replacement Fuses

Overview

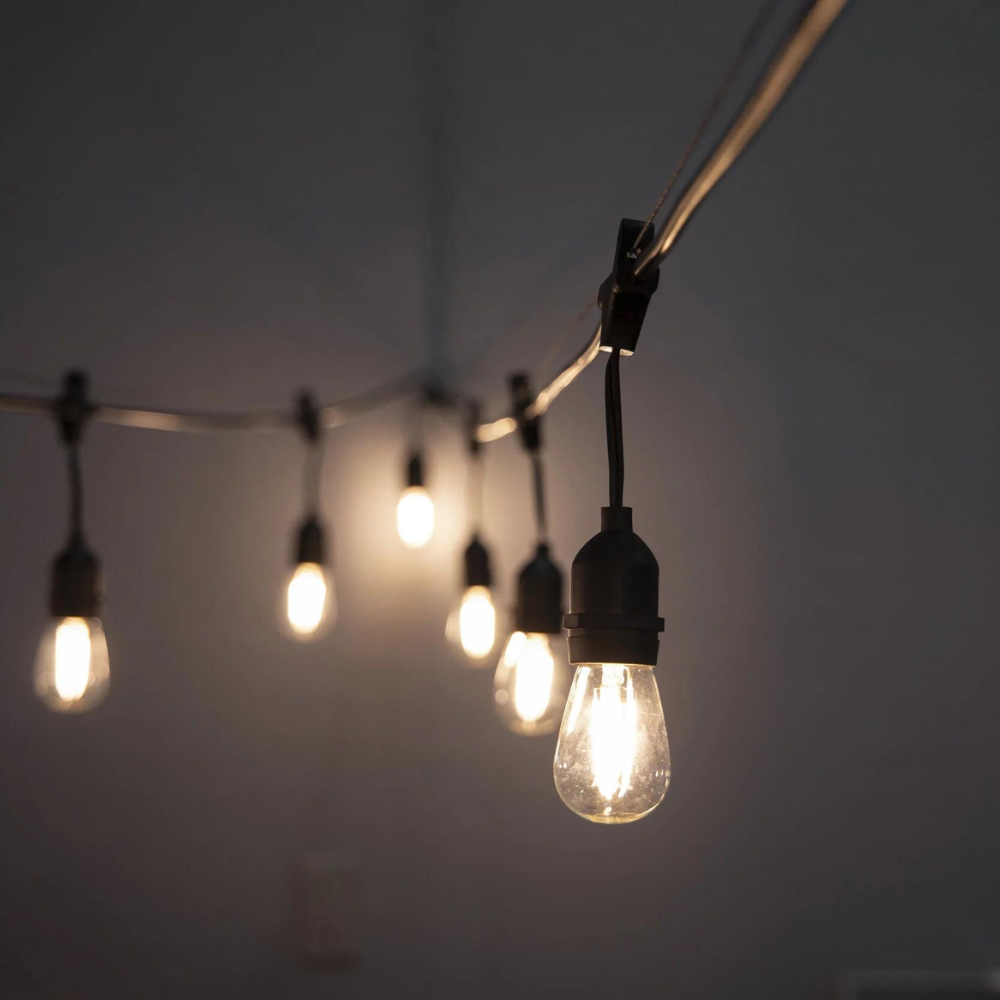

The Brilliance Line Voltage Bistro String Light Kit is designed with two-way mounting holes for easy installation. The connection points are weather sealed, making all 48 feet of string outdoor ready.

NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft) horizontally from the nearest edge of the water, unless permitted by Article 680.

TIPS FOR INSTALLING THE LINE VOLTAGE BISTRO STRING LIGHT KIT

1. Choose the best installation option for the environment. Hang from structures or install posts to hang the string lights.

2. Measure for length and map out the configuration. Include any zigzags or crossovers in your design.

3. Install the mounting hardware to the structure.

4. While the string is on the ground, install the included S14 lamps.

5. Thread the mounting cable through the mounting holes, then pull the string with lamps taut and hang it from the mounting hardware. The two-way mounting options alleviate the need for using zip ties to secure the cable and string together.

6. After all the lamps are installed, turn on the power.

   NOTE: If the string stops energizing over time, first check the power source. If you confirm power is still available, check the fuse in the cord end. Two replaceable fuses are included in the kit.
