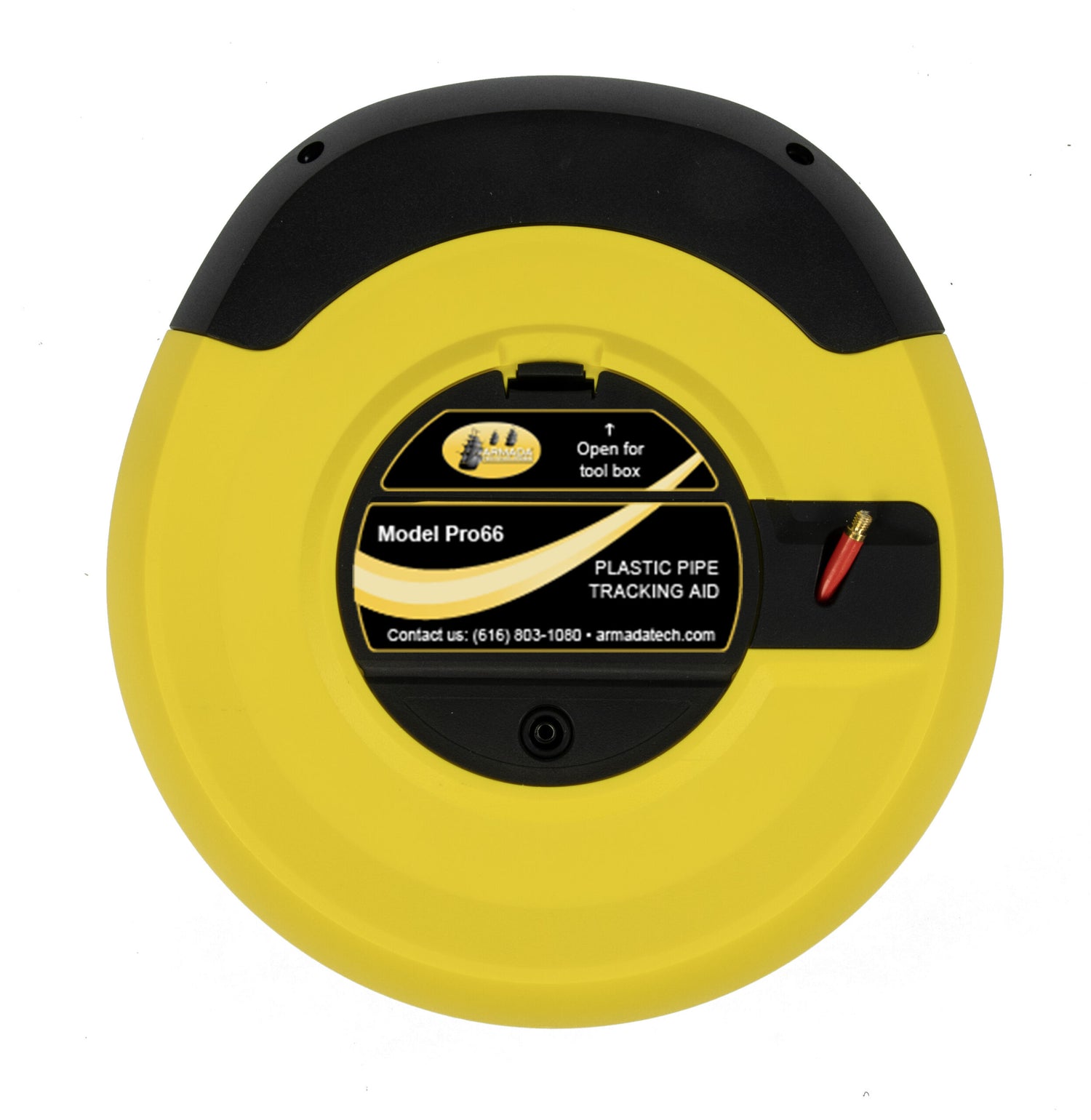

Pro66™ Plastic Pipe Tracking Aid

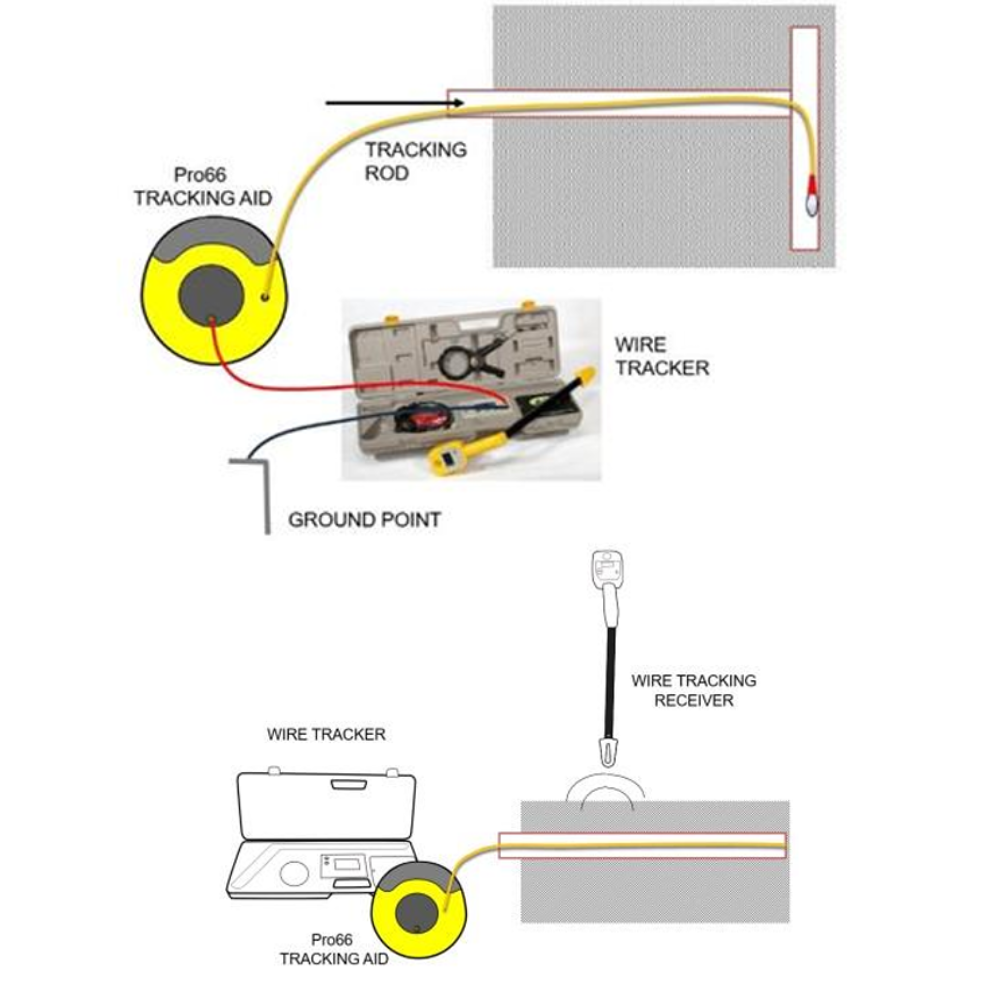

The Pro66™ Tracking Aid is a device designed to allow users to track the path up to 98 feet of a non-metallic pipe or conduit buried in the ground or routed in walls. When used in conjunction with wire trackers like the Armada 33 kHz Pro290™, Pro881™, or Pro900™, it is possible to determine the route of PVC or vinyl conduit whether they are empty or have fluid in them.

Features

• For conduit or pipe runs up to 98 feet
• The thin 3 mm diameter fiberglass tracking rod stows in the disc-like outer case
• The tracker rod offers flexible, replaceable tips and pulling eyes of different diameters
• Can be used to insert pull string in a conduit
• Works best with 33 kHz or higher wire trackers
• Convenient 4 mm receptacle for the transmitter connection from the tracker
• No separate power required for the Tracking Aid
• Use your 33 kHz locator (e.g. Armada Pro900™, Pro881™, Pro871C™, Pro290™) to track plastic pipe
• Can be used with pipe down to 0.5 inches diameter
• Working bend radius of 1.25 inches in pipe
• Pipe detection depth of 5 feet
• Manual extend and retract with a handle assist
• Interchangeable flexible tips

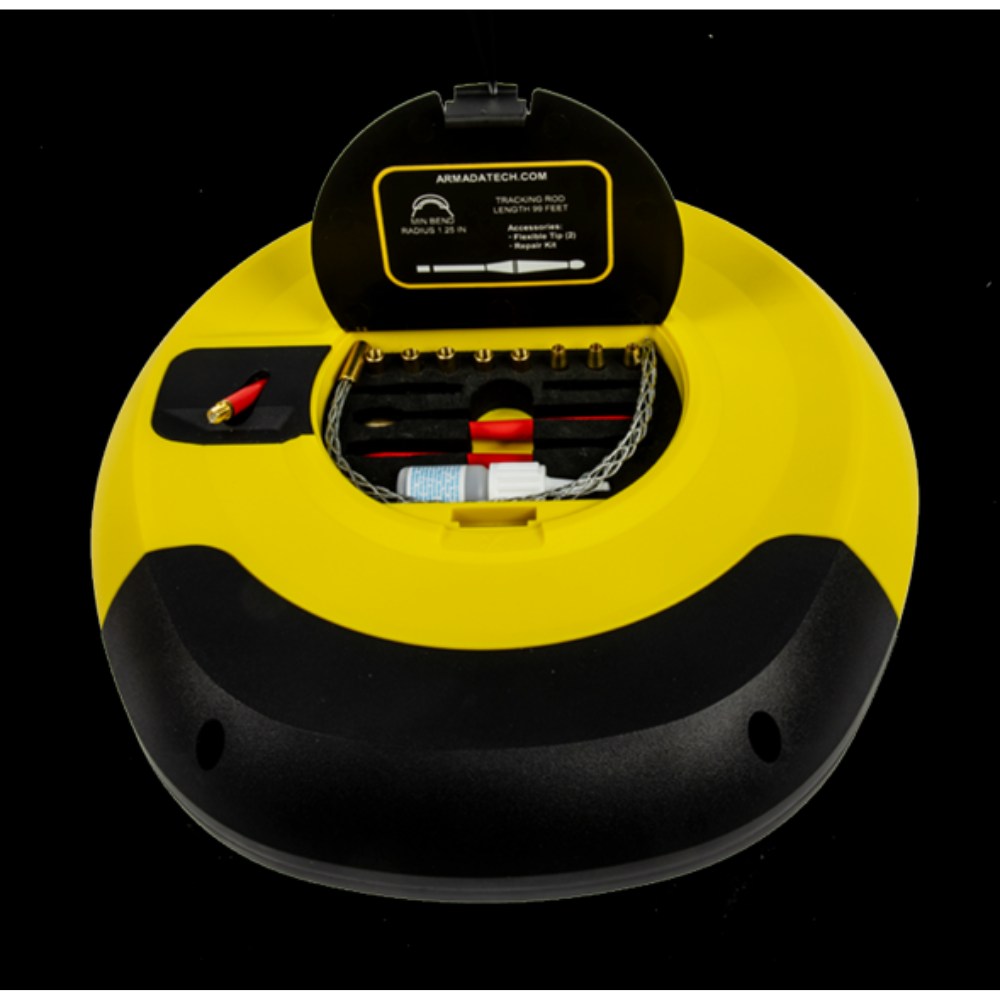

• Built-In accessory and repair kit
• Wire pulling accessories

Specifications

• Approximately 100 feet in length
• 3 mm fiberglass rod
• Bend radius of 1.25 inches in pipe
• Pipe detection depth of 5 feet

Product Downloads

• Pro66 Brochure
• Pro66 Instruction Manual
