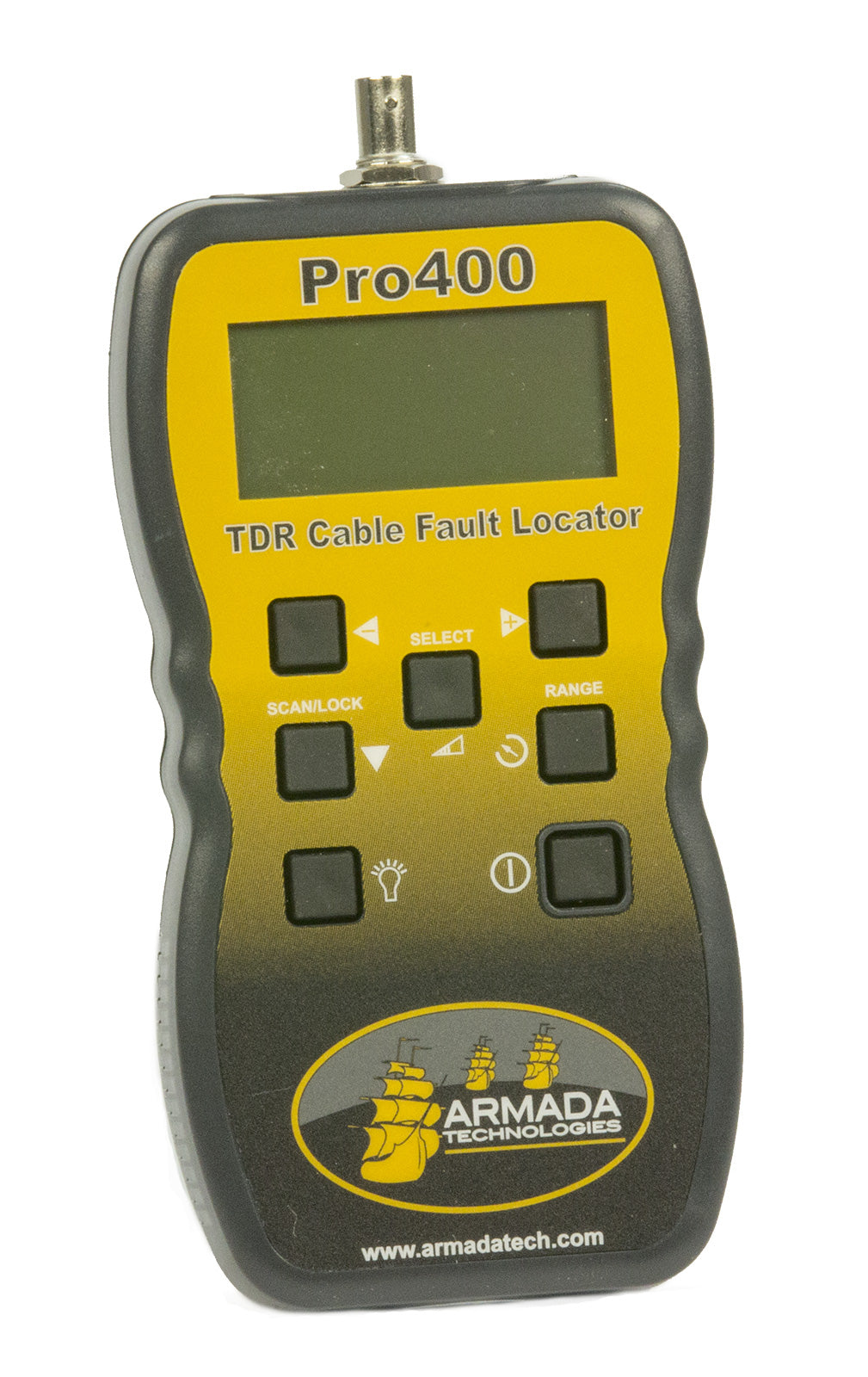

HANDHELD GRAPHICAL TDR CABLE FAULT FINDER
The Pro400™ Graphical TDR is a great tool for locating faults in metallic cables with 2 conductors. Twisted pair, coax, LAN cabling, etc. are simple to test for distances to shorts, opens, etc. By connecting the leads to the cable to test, a graphical display quickly and easily shows faults and events on that cable. In addition, the Pro400™ transmits a standard analog tracing tone for use with common tone probes to find the termination point of a cable.
Features:
- Lowest Cost Full Specification Professional Graphical TDR
- Rugged hand held design weighs less than 12oz (350g)
- 5 Measurement Ranges up to 6500ft (2000m)
- 50, 75 & 100 Ohm Selectable Cable Impedance
- Built in Tone Generator for Wire Tracing and Identification
- Backlit display screen
- Water and Dust Proof to IP54
- Complete with carrying case and test leads
Overview
- The Pro400TM is a professional Time Domain Reflectometer and Toner designed to detect and locate faults on copper cables up to a distance of 6500ft (2000m).
- Advanced signal processing techniques enable the Pro400TM to find opens, short circuits, splices, taps, water ingress and other more elusive faults. A built in tone generator also provides a tone for wire tracing and identification.

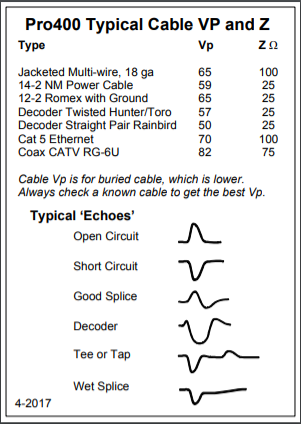

- Selectable cable impedance matching, along with variable velocity factor, enable the Pro400TM to be used to test all communication and control cables, with graphical results and fault distances displayed on a dot matrix LCD.

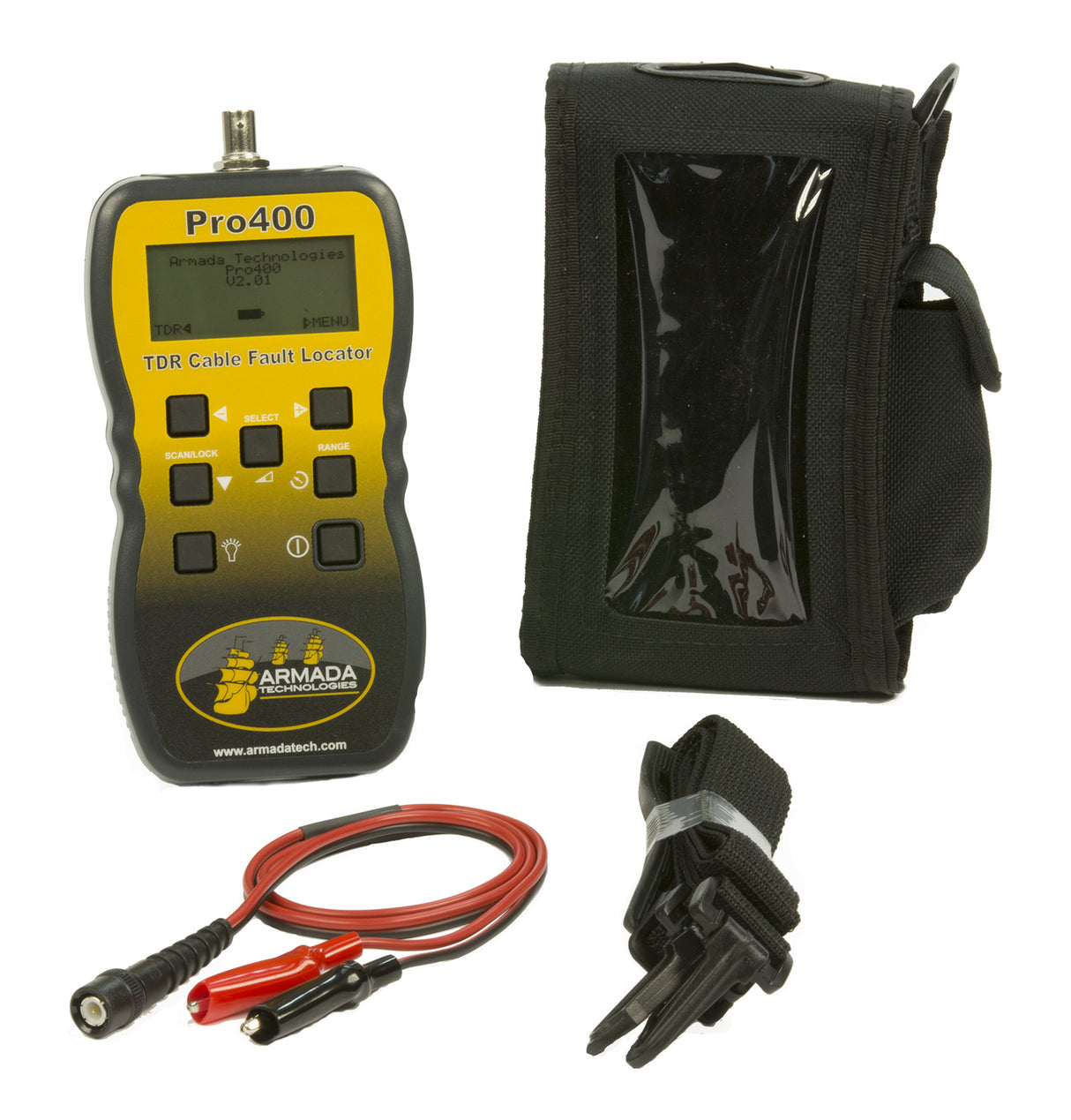

- The TDR/Fault Finder is housed in a tough, ruggedized ABS plastic case, water and dust proof to IP54, and supplied complete with test leads and a protective tool-belt holster.
- The Pro400TM is designed and manufactured to international standards for quality, safety and reliability.
Specifications
- Ranges @ Vp=70% 20, 45, 90, 180, 360, 750, 1500, 3000 feet
- Range Selection Manual range control
- Resolution Approximately 1% of range
- Sensitivity Min. 3 pixel return at 1750 meters
- Velocity Factor Adjustable from 1% to 99%
- Output Pulse 5v p-p into open circuit
- Output Impedance Selectable 50, 75 & 100 ohms
- Output Pulse Width 3ns to 3ms
- Scan Rate 2 scans per second
- Tone Generator Oscillating 810Hz - 1100Hz
- Power Supply 6v 4 x AA cells
- Auto Power Down Selectable 1,2,3 min. or disabled
- Operating Temperature 0 to 40 deg. C
- Storage Temperature -20 to 70 deg. C
- Dimensions 6.5 x 3.5 x 1.5 in (165 x 90 x 37 mm)
- Weight 12oz (350g)
- Safety IEC61010-1, EN 60950, EMC BS/EN 61326-1
- CE compliance with current EU directives
- Water / Dust Proof IP54
