410BT Battery Operated Controller w/ 2" PGV Valve - 410BTPGV-200

DIG 410BT Bluetooth Battery Operated Controller (410BT-000) pre-installed with a Hunter 2 inch PGV In-Line Valve. Valve Mounted Controller (DC) Battery Operated (Fixed Single Station) with Bluetooth capability.

DIG's 410BT-Series Battery Operated Controller features Bluetooth® wireless technology combined with a full function irrigation controller to provide long-lasting, reliable, and feature-packed irrigation control via your smartphone or tablet. Download the free DIG BTT app to control any number of 410BT controllers through supported Android or iPhone smart devices from up to 50' (15 meters), line of sight.

The 410BT controller's rugged design is ideal for use in residential and commercial applications or where AC power is unavailable. It features a waterproof design (IP 68) and can operate for up to one year on two AA alkaline batteries. The controller includes a single button for manual operation and 2'' professional grade Hunter PGV in-line/angle valve with flow control.

410BT Controller Features

• Type: DC (IP68)
• Connection and program mode: Android or iPhone smartphone, Bluetooth
• Bluetooth Capability - 50' line of sight.
• Controller power input: constant 11-volt
• Operation interface: one button for reset and manual run
• Graphical representation of programming schedule
• Weekly, Even/Odd days of the month, or 1- to 30-day schedules
• Five start times per day
• Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments
• Power source: two AA alkaline batteries (not included)
• Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wires
• Body: water proof, IP68
• Solenoid wire: 8 (20 cm)
• Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
• Flow range: .1 to 160 GPM (.23 to 36 m3h)
• Temperature range: 38 - 130 & deg;F (3 - 54 & deg; C)
• Inlet and outlet: female pipe thread (FNPT)

• Battery life up to three years
• Three year warranty

PGV Valve Features

• Flow rate: 20 to 150 GPM
• Recommended pressure range: 20 to 150 PSI
• Temperature rating: 150° F
• All Hunter valves are 100% water tested to ensure reliable operation once installed
• Captive bonnet bolts provide hassle-free valve maintenance and eliminate the possibility of lost parts during disassembly
• Each valve available with globe or angle configuration for convenient placement
• Flow control maximizes efficiency and prolongs the life of the system
• External and internal manual bleed allows quick and easy at the valve activation
• A double-beaded diaphragm seal design for superior leak-free performance
• Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver

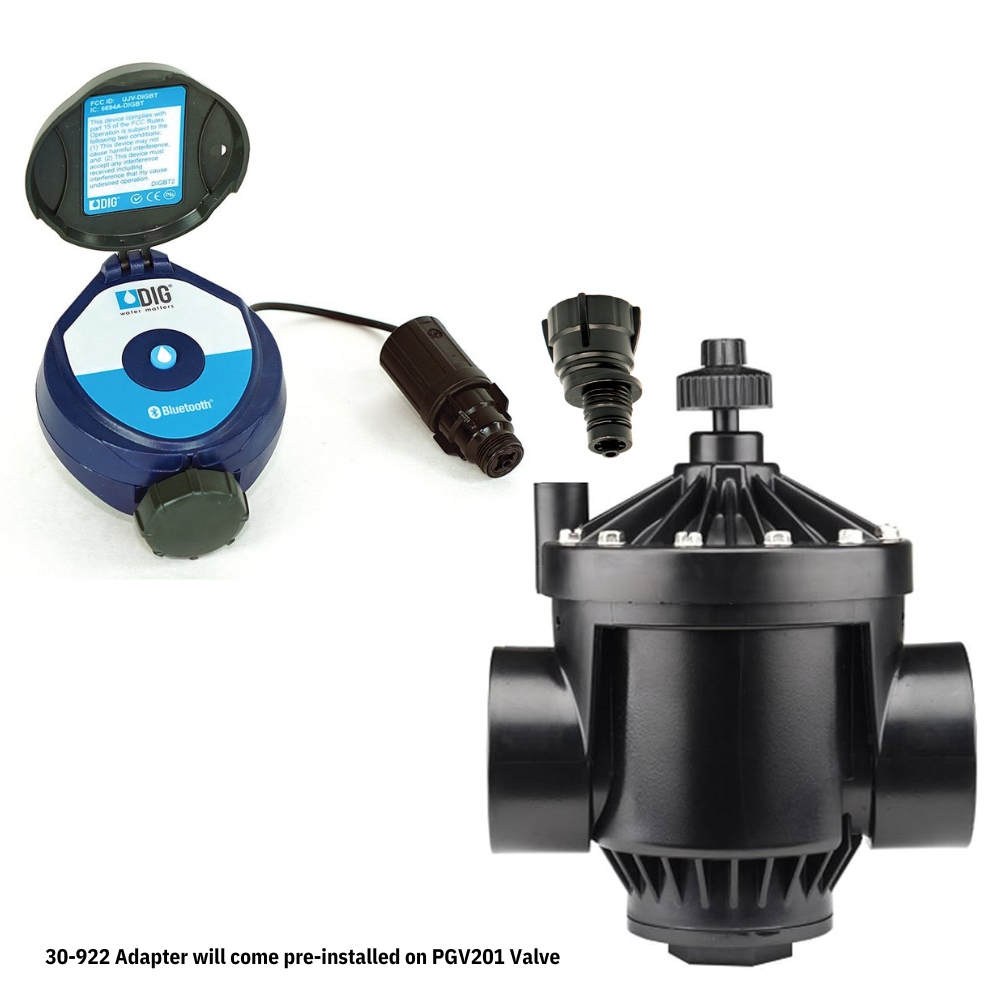

• Hunter valve pre-installed with DIG 30-922 adapter for use with DIG battery operated controllers.

Downloads & Spec Sheets

• 410BT Owner's Manual
• Cut Sheets
• PGV Spec Sheet
