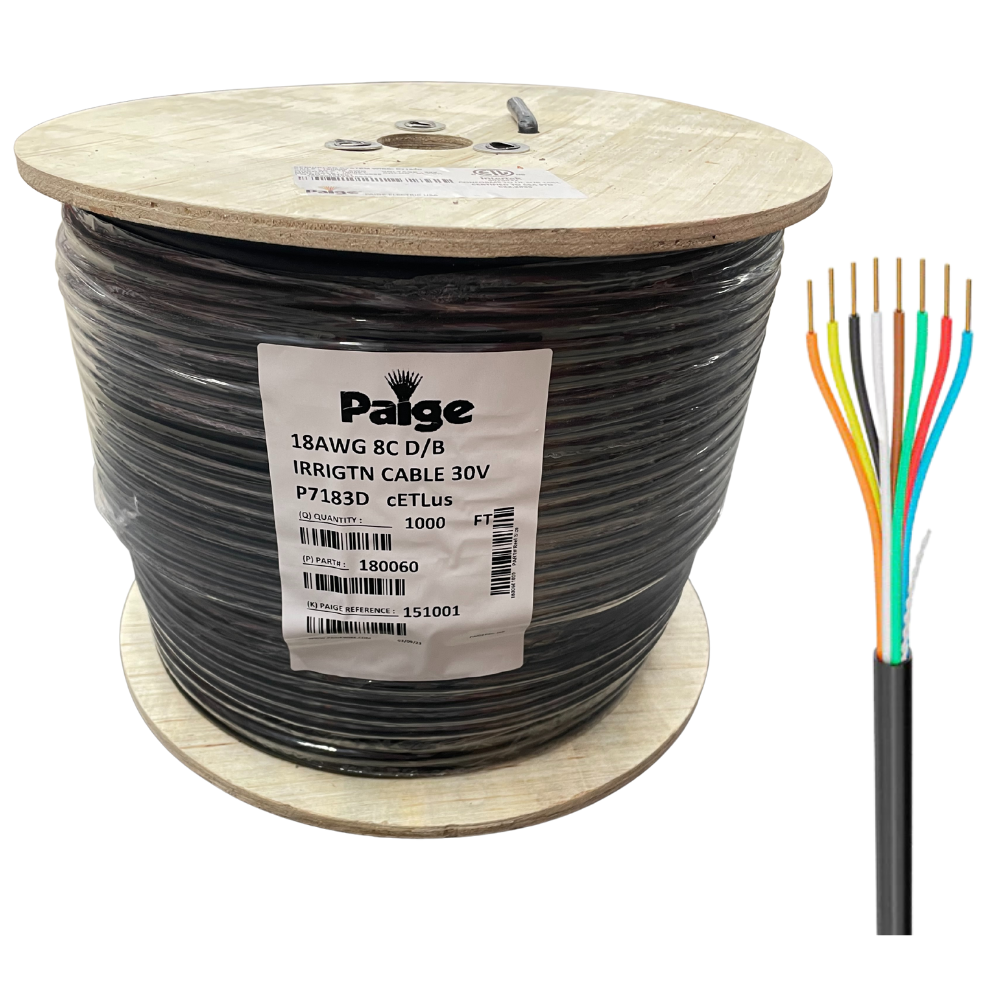

Paige - 18/8 x 1000' - 18 AWG 8 Conductor Underground Sprinkler Wire

Paige  |  SKU: 18/8x1000
$57960 $91080


Delivery and Shipping

Add some general information about your delivery and shipping policies.

18 AWG 8 Conductor Direct Burial Sprinkler Wire - 1000' Spool

For connecting the 24 volt irrigation controller outputs to the solenoid valves. Also used in many other direct burial applications. Listed by UL or ETL or CSA.

Features

  • Insulation: PVC
  • Jacket: PE with Nylon Rip Cord
  • Conductors: 8
  • 1000' Spool
  • Multiple conductors of solid bare copper meeting ASTM B-3, insulated with .015" of 80 degree C color coded PVC insulation, are cabled with .025" of an extruded PE jacket with a nylon rip cord.
  • This cable is suitable for direct burial, rated 30 volts.
  • Outer Jacket is UV and sunlight resistant.
  • All cables shall be tested physically and electrically in accordance with UL standard 1493.
  • Surface marked with Paige Electric P7183D, 18 AWG and number of conductors, 30V, direct burial sprinkler low energy circuit cable, Listing file number, sequential footage every 2 feet maximum, RoHS.

Wire splices are the weak link of any electrical circuit. It is especially important to make proper joints in irrigation systems because the joints are exposed to wet and damp environments that can cause corrosion of the copper conductor and premature failure. Here are Paige Electric’s recommendations: For direct burial, above ground, or in valve box installations: Model DBR/Y-6 as manufactured by the 3M Company.

Wire Colors


Spec Sheet

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

18/8X1000 - Wire 18/8 X 1000
Paige

Paige - 18/8 x 1000' - 18 AWG 8 Conductor Underground Sprinkler Wire

$57960 $91080

18 AWG 8 Conductor Direct Burial Sprinkler Wire - 1000' Spool

For connecting the 24 volt irrigation controller outputs to the solenoid valves. Also used in many other direct burial applications. Listed by UL or ETL or CSA.

Features

Wire splices are the weak link of any electrical circuit. It is especially important to make proper joints in irrigation systems because the joints are exposed to wet and damp environments that can cause corrosion of the copper conductor and premature failure. Here are Paige Electric’s recommendations: For direct burial, above ground, or in valve box installations: Model DBR/Y-6 as manufactured by the 3M Company.

Wire Colors


Spec Sheet
