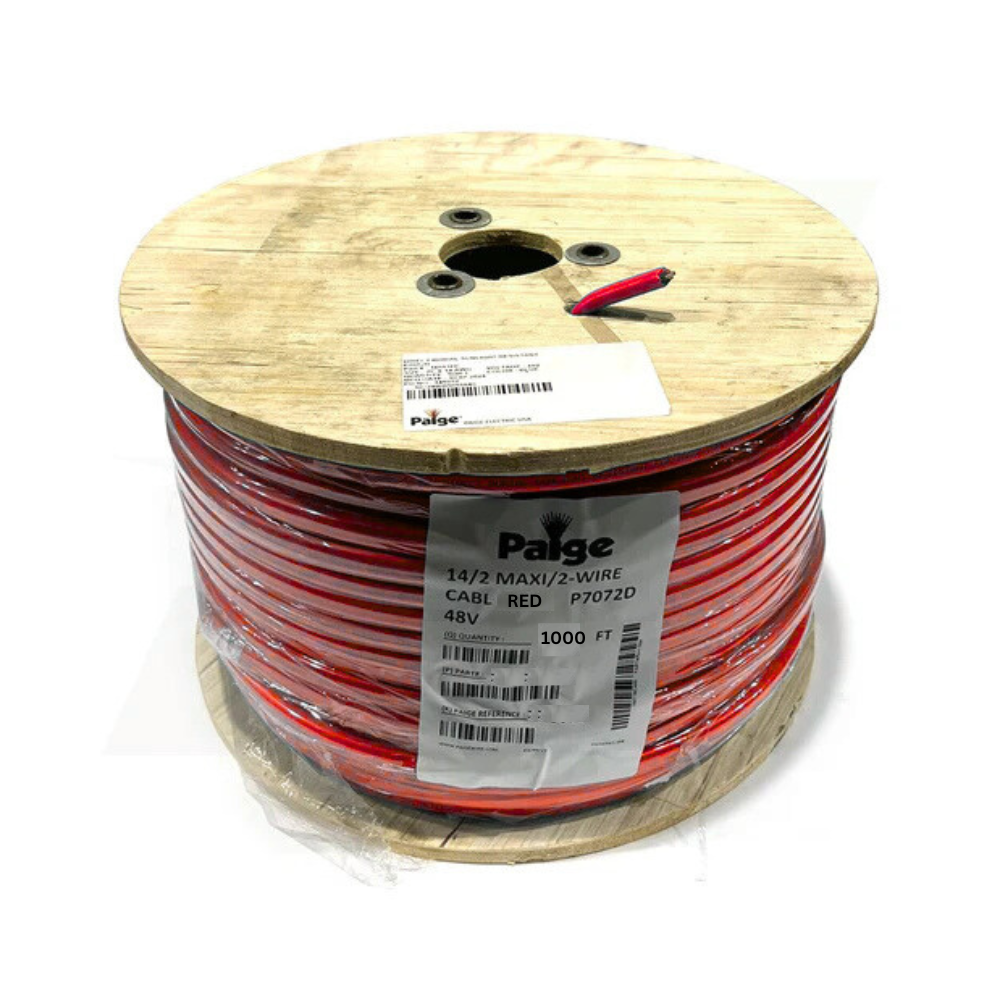

Paige - 14/2 x 1000' - 14 AWG 2-Conductor Maxi Wire Decoder Cable (Red)

14 AWG 2 Conductor Special Direct Burial Irrigation Control Cable - FOR MAXI, TORO, RAINMASTER AND 2-WIRE SYSTEMS - 1,000' Spool

14 AWG 2-conductor control cable design consisting of tin coated copper conductors, insulated with PVC and having a high density polyethylene direct burial jacket. Inner conductors are listed as Type UF/TWU by UL or ETL or CSA

Features

• 1,000' Spool
• Size: 14 AWG, 2 Conductor
• Insulation: Polyvinyl Chloride (Black and Red)
• Jacket: Impregnated Polyethylene
• Conductor: Soft annealed tin coated solid copper conforming to ASTM B-33
• Insulated Conductors are laid parallel

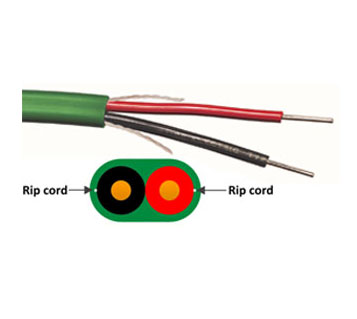

• Rip Cord: Dual rip cords shall be inserted as shown between the inner conductors and the outer jacket.
• Outer Jacket: Pressure Extruded High Density PE conforming to ICEA S-61-402, and NEMA WC5 Jacket Thickness 3/64” minimum jacket material to completely fill interstices between the two insulated conductors.
• Surface Print: “PAIGE ELECTRIC P7072D SIZE 2C VOLTAGE* DIRECT BURIAL SUNLIGHT RESISTANT FOR MAXI, TORO, RAIN MASTER AND 2-WIRE SYSTEMS” RoHS. Maxi is a trademarks of Rain Bird Corporation. Toro and Rain Master are Trademarks of The Toro Co
• Wire splices are the weak link of any electrical circuit. It is especially important to make proper joints in irrigation systems because the joints are exposed to wet and damp environments that can cause corrosion of the copper conductor, and premature failure. Paige Electric recommends the strict use of Model DBR/Y-6.

* The inner conductors are rated and labeled as 600V. The 48V rating on the print legend of the outer jacket is intentional, so as to prevent the use of this “irrigation cable” as “building wire.” The normal uses for this cable are for Rain Bird Maxi, Toro, Rain Master and 2-wire systems, for which the applied/operating voltage is well below the 48V rating.

Downloads

• Spec Sheet
