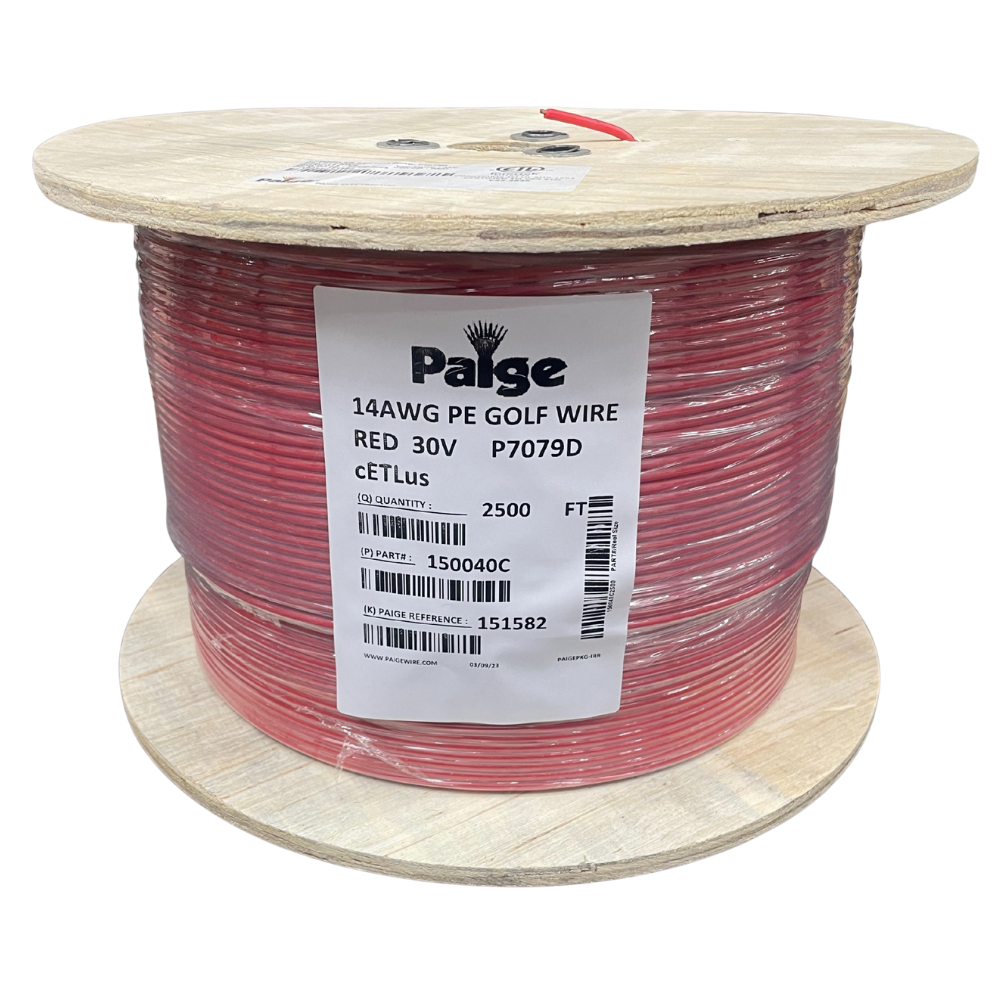

Paige - 14/1 x 2500' - 14 AWG Underground Sprinkler Wire (Red)
Paige - 14/1 x 2500' - 14 AWG Underground Sprinkler Wire (Red) is backordered and will ship as soon as it is back in stock.
14 Gauge Single Conductor Golf Course Sprinkler Wire - Solid Copper - 2,500' Spool - Red
Features
- 14 AWG Single Conductor
- 2,500' Spool
- Low density high molecular weight polyethylene insulation, suitable for direct burial applications for operating temperatures up to 60°C. Listed by UL or ETL or CSA.
- Conductor Construction: Soft drawn bare copper meeting the requirements of ASTM specification B-3 or B-8.
- Temperature Rating: -55°C +60°C.
- Insulation: Polyethylene
- Insulation Thickness: 0.45''
- Sunlight Resistant: No
- 600V Rating
- UL Standard 1551
- Outside Diameter: 0.154''
Splicing Recommendations: Wire splices are the weak link of any electrical circuit. It is especially important to make proper joints in irrigation systems because the joints are exposed to wet and damp environments that can cause corrosion of the copper conductor and premature failure. Here are Paige Electric’s recommendations:
For direct burial or in valve box installations: Model DBR/Y-6 as manufactured by the 3M Company
Spec Sheet
-
Box QuantityN/A
