Dryconn - DBR/Y-600 Direct Bury Silicone Tube w/ Gorilla Nut (100 ct.) - 20235

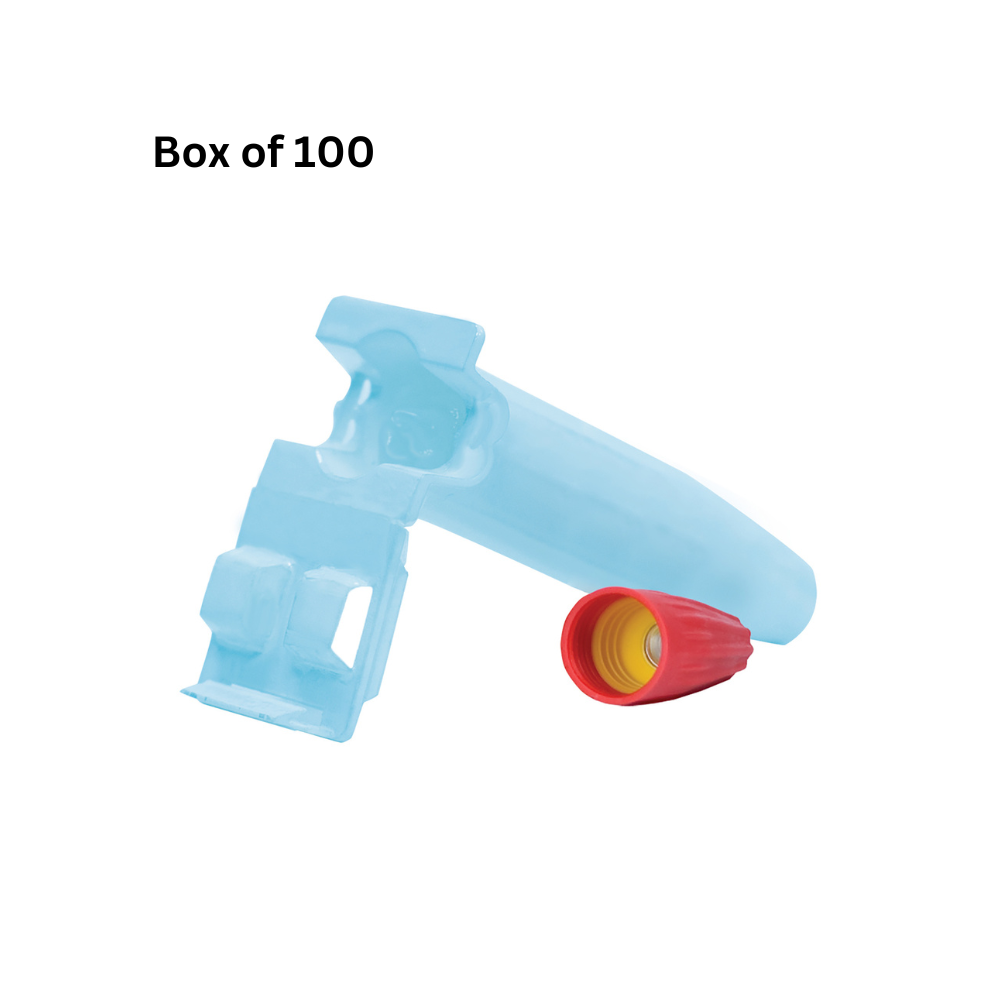

Box of 100 DryConn DBR/Y-600 Direct Bury Silicone Tubes w/ Gorilla Nuts - Min #22/Max #8

Waterproof your outdoor splices with the DryConn DBR and Y-600. The Red and Yellow Gorilla Nut allows you to make connections with a cushion grip-wire connector that protects numb and painful fingertips. Then, waterproof your splice with a dielectric silicone filled tube. The tube features a patent pending snap-fit lid for maximum strain relief on splices. The DryConn DBR and Y-600 is UL listed for waterproof and direct bury connections.

FEATURES & BENEFITS:

• Box of 100 Silicone Tubes w/ Gorilla Nuts
• UL Listed and 600V Rated
• Wire Range: Min #22/Max #8
• Waterproof and corrosion proof
• Patented snap fit lid provides strain relief
• UV and impact resistant

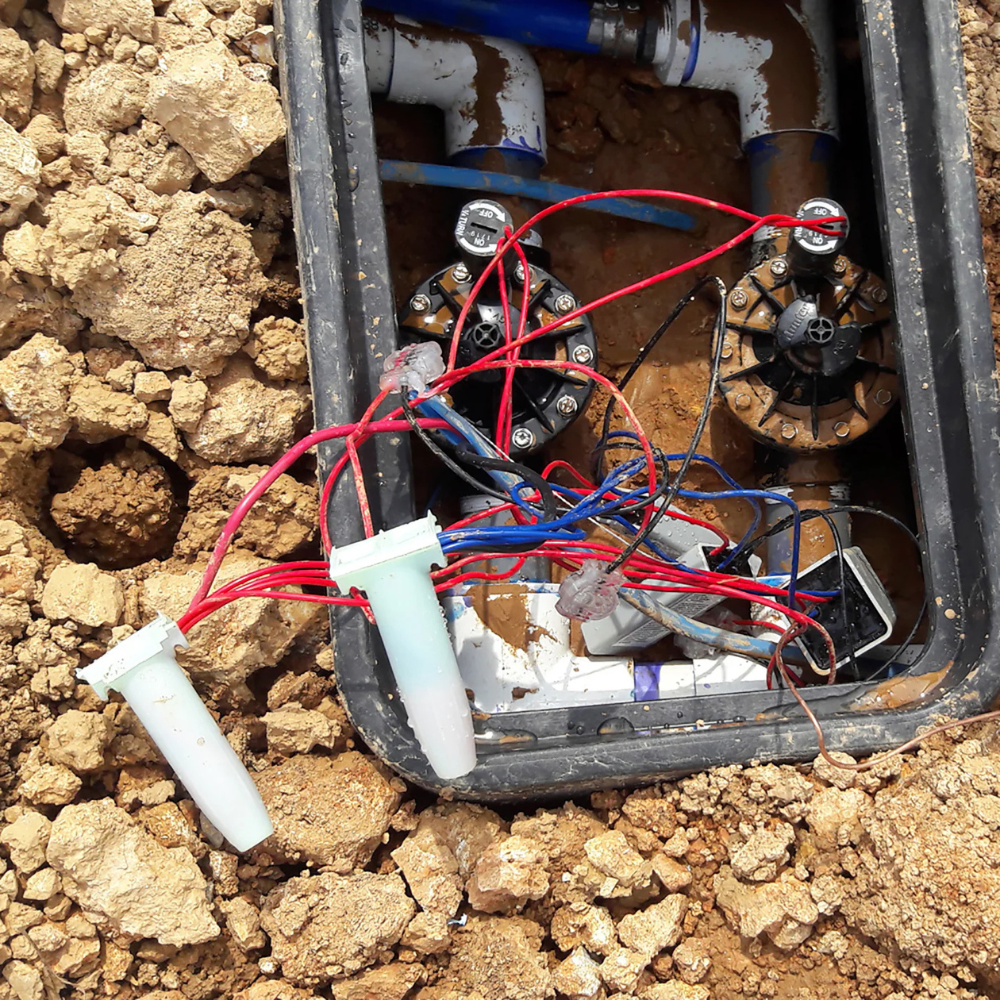

• Excellent for above ground and direct bury applications
• Pre-filled with silicone that never hardens
• Two part system includes: 100 Gorilla Nuts; Red/Yellow Cushion Grip Wire Connector and 100 silicone filled tubes
• Perfect for low voltage lighting or two-wire decoder system applications

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
• Connector Size: 3 11/16" x 1 1/2" x 1 3/16"
• Wire Type: Copper/Copper
• Wire Range: Min #22/Max #8
• Tube Construction: Sunlight and Impact Resistant Blended Polypropylene
• Temperature Rating: -105°C (221° F)
• Silicone Sealant Temperature: -45°F to 400°F
• UL Designation:GT2
