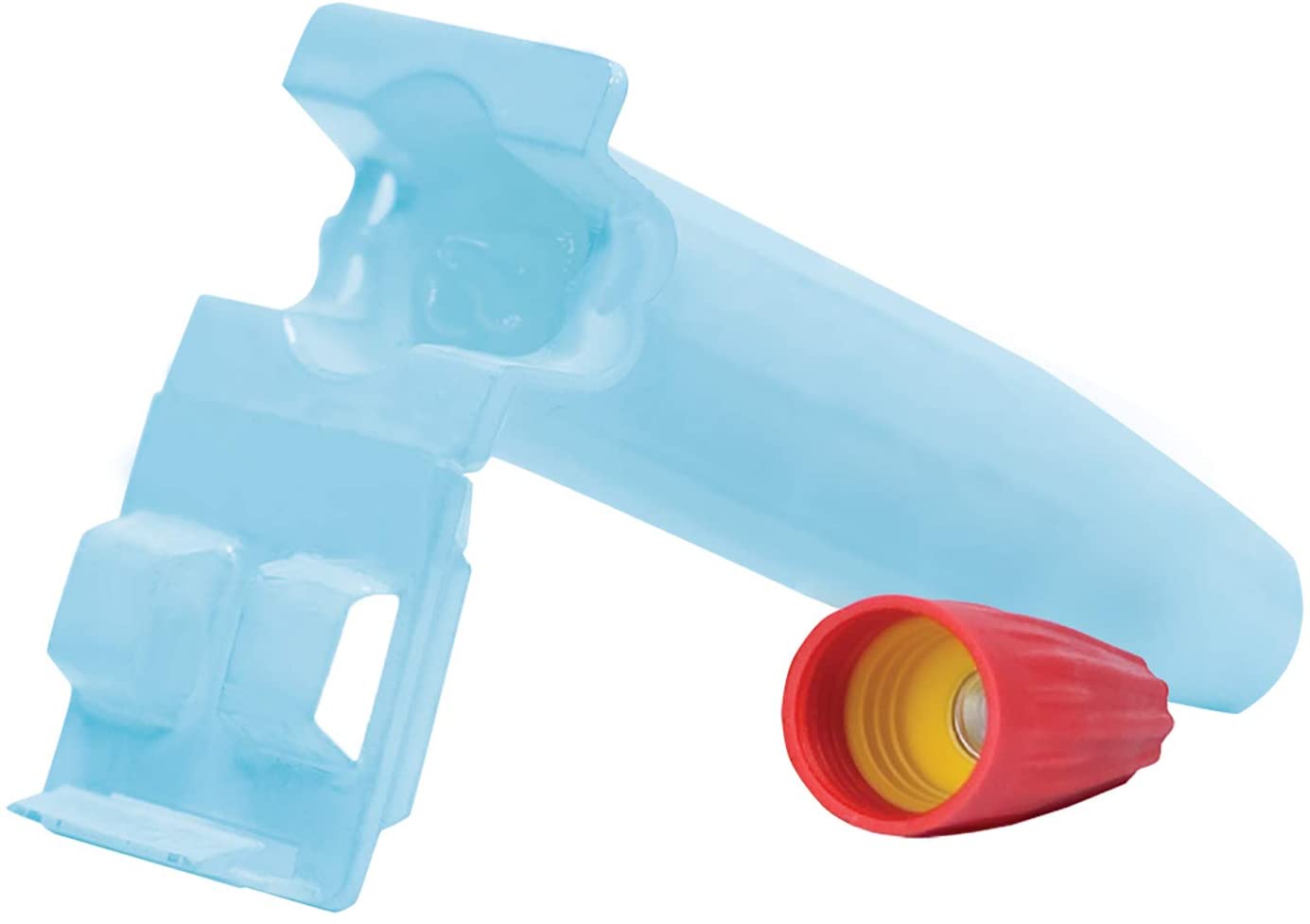

Dryconn - DBR/Y-600 Direct Bury Silicone Tube w/ Gorilla Nut (100 ct.) - 20235

Box of 100 DBR/Y-600 Direct Bury Silicone Tubes w/ Gorilla Nuts.

FEATURES & BENEFITS:

• UL Listed and 600V Rated
• Waterproof and corrosion proof
• Patented snap fit lid provides strain relief
• UV and impact resistant
• Excellent for above ground and direct bury applications
• Pre-filled with silicone that never hardens
• Two part system includes Gorilla Nuts; Red/Yellow Cushion Grip Wire Connector and silicone filled tube
• Perfect for low voltage lighting or two-wire decoder system applications

PRODUCT SPECIFICATIONS & MEASUREMENTS:

Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
Connector Size: 3 11/16" x 1 1/2" x 1 3/16"
Wire Type: Copper/Copper
Wire Range: Min #22/Max #8
Temperature Rating: -105°C (221° F)
Silicone Sealant Temperature: -45°F to 400°F
UL Designation:GT2

Documents

DBR/Y and DBT Wire Combinations

DBR/Y-600 Specification Sheet

DBRY-600 Comparison
