Thrive Smart Systems - EVO 4-Station Wireless Transmitter and Receiver - TEVO-04

Thrive EVO | 4-Station Wireless Valve Solution | TEVO-04

Thrive Evo, featuring a Transmitter and Receiver, eliminates the need for wires between your irrigation controller and valves. The Transmitter connects to any irrigation controller (multi-wire or two-wire), while the Receiver is compatible with any 9V DC valve solenoid. Provides a wireless range of 200 yards through obstructions (700 yards in line of sight).

Ideal for: | Replacing lost or damaged wire paths | Adding zones to existing systems | Replacing battery-operated timers to centralize your system |

No programming or pairing is required. Keep your existing system… simply connect and go wireless. No trenching. No wires. No limits.

Features

• Reliable and consistent communication up to 200 yards (results can vary depending on existing site conditions)
• Compatible with most multi-wire irrigation controllers
• Manage up to 4 new or existing stations

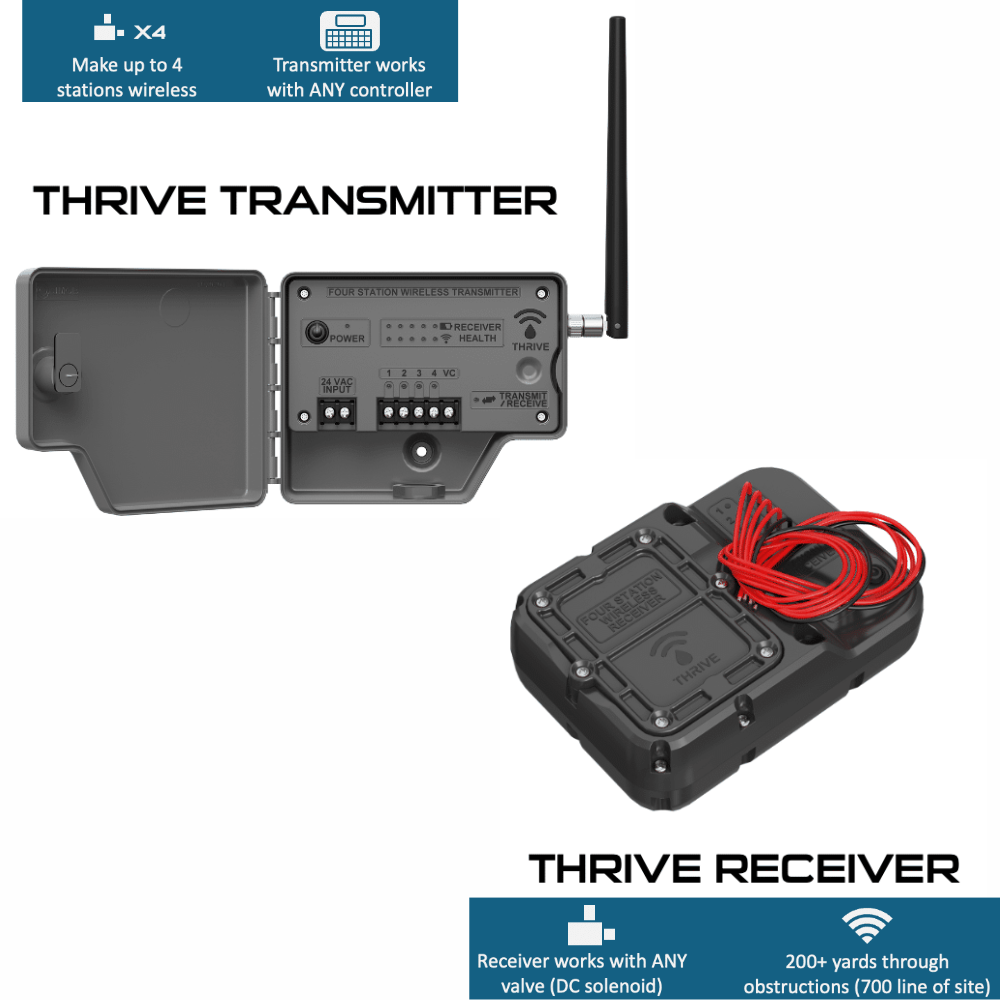

• The Thrive Transmitter™ is housed in a weather-resistant, key-lock entry, rugged plastic enclosure, using a CH751 key
• The Thrive Transmitter™ is powered by the adjacent irrigation controller’s 24 VAC auxiliary power output
• The Thrive Receiver™ is powered by two (qty), 9-volt lithium batteries that are projected to last up to 2 irrigation seasons depending on site conditions and irrigation requirements
• The Thrive Receiver™ is housed is a IP67-rated, rugged plastic housing
• The Thrive Receiver™ battery cassette was developed with the contractor in mind. Installation and replacement is a “snap”
• The Thrive Receiver™ has a built in failsafe program to prevent overwatering during blackout or connection loss
• Devices come Pre-paired with matching frequencies – no field programming required

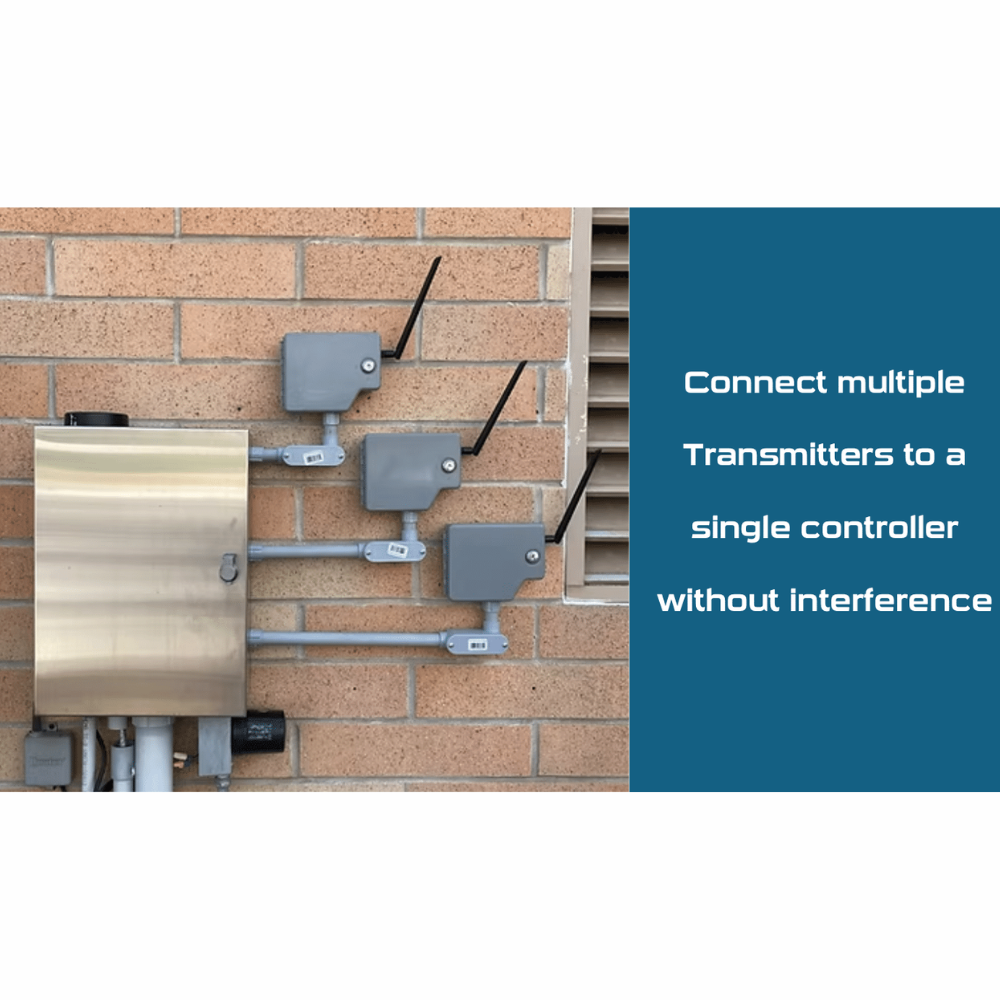

• Multiple devices can be installed on one site or adjacent sites without interference of adjacent devices
• 3-year warranty
• Patent Pending

Maximum Wire Runs

• Maximum Wire Lengths from Receiver to Remote-Control Valve

Overview

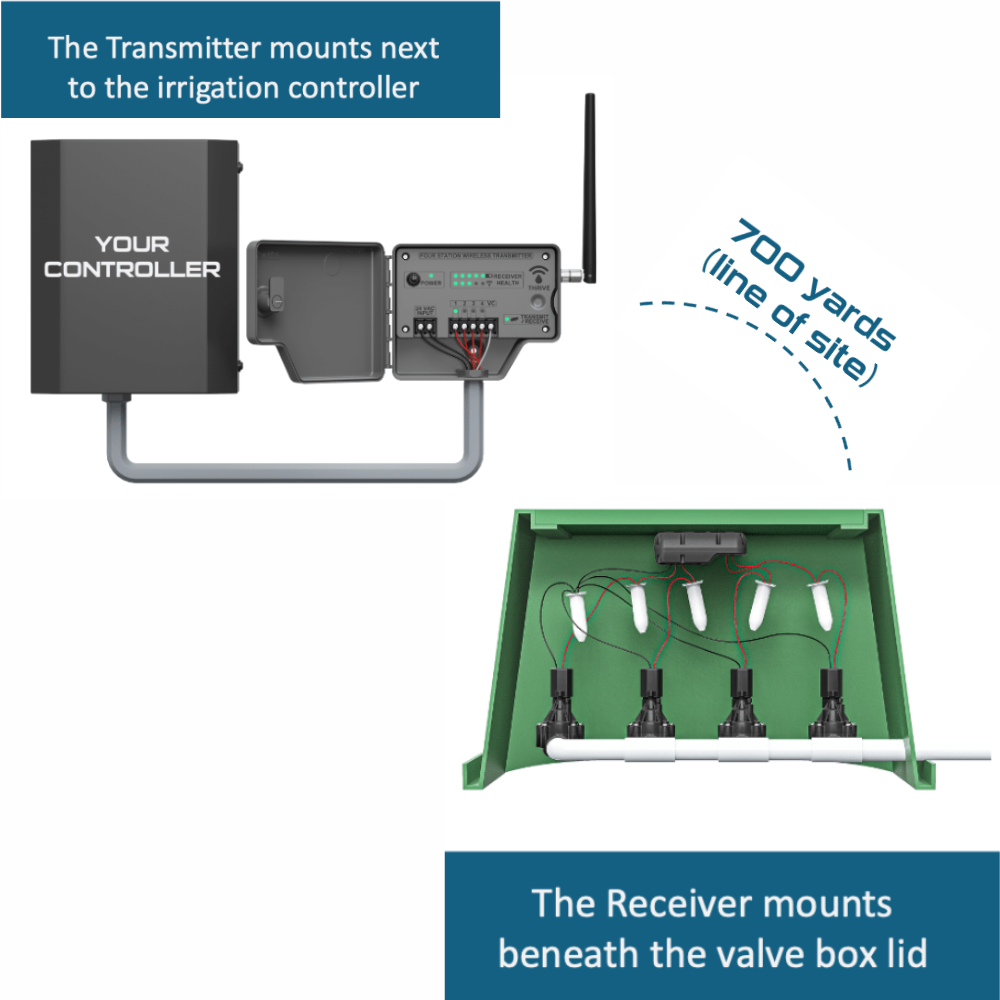

The Thrive Transmitter is mounted beside the existing irrigation controller, and any stations the user wants wireless are wired to the Transmitter terminals.

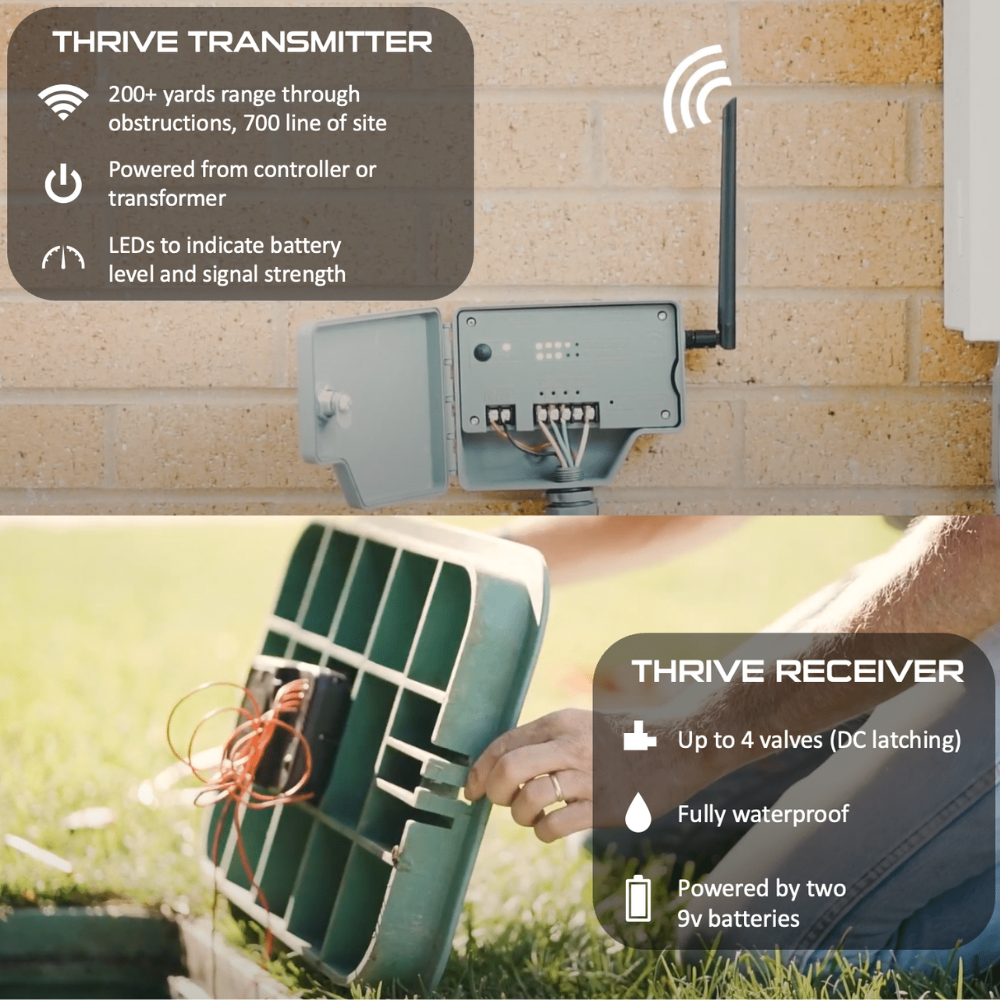

The Thrive Receiver™ is secured to the underside of any rectangular irrigation valve box so that it’s hidden from view and potential vandalism. Replace the AC solenoids with DC latching solenoids. It is powered by two 9V batteries that last one to two seasons.

No field programming of the EVO™ is needed. Simply use the power and capabilities of your smart irrigation controller to meet local water conservation requirements.

2-Wire Compatibility

Known Compatible Controllers

• Rainbird, ESP-LXD Series 2- Wire Decoder Controller
• Hunter, ACC 99D 2-Wire Controller
• Hunter, ACC2 Decoder Controller
• Hydropoint, WeatherTRAK 2-Wire PBT (OLD STLYE)

Known Noncompatible Controllers

• Rainbird, ESP-LXIVM 2-Wire Controller with Smart Valve Technology
• ** Hydropoint, WeatherTRAK h5O (NEW STYLE)

Compatible only if 1) Electrical alerts are turned off and 2) Only use a Hydropoint WetherTRAK 2-wire Decoder 2 station

Electrical Specs

Thrive Transmitter:

• Maximum AC Input Voltage - 30 VAC
• Minimum AC Input Voltage - 19 VAC
• Maximum Stations (Zones) Active Together - 4
• Temperature Range: -10°F -- 140°F (-23°C -- 60°C)
• Dimensions: 6.6'' x 5'' x 2''

Thrive Receiver:

• Maximum DC Input Voltage - 9 Volts DC
• Maximum DC Input Voltage - 5.5 Volts DC
• Temperature Range:: -10°F -- 140°F (-23°C -- 60°C)

• Dimensions: 6'' x 2'' x 2''

Manuals & Literature

• EVO Installation Manual - (Click here for Video Tutorial)
• EVO Full User Manual
• Mounting Template
• EVO Winterization Instructions
• Troubleshooting Guide
