Hunter - PGP04 - 4'' PGP Ultra Rotor

Hunter  |  SKU: PGP04
$1047 $2519

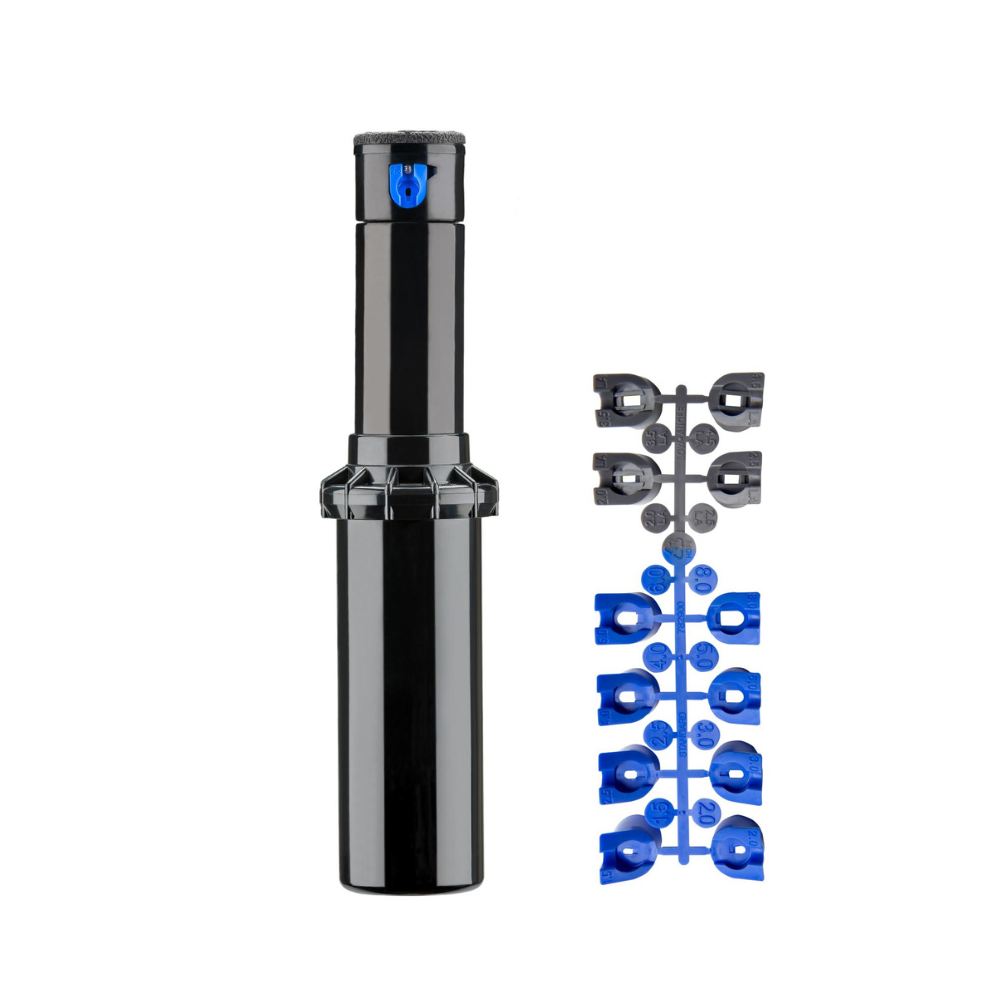

The PGP-Ultra head is an indispensable rotor with 12 nozzle choices included and a 25' to 46' radius. The PGP-Ultra 4'' Pop-Up rotor is ideal for residential or commercial applications. The flexibility of the PGP Ultra gives system installers an array of efficient options on any site.

Includes;

  • (1) Blue/Grey nozzle set per rotor.
  • (1) Rotor key included in purchase of 10+ Rotors. 2 keys per case of 20.
    • If you purchase less than 10 rotors then a rotor key will need to be purchased separately. Rotor key is part 172000.
  • Optional Nozzle Changer Clip must be purchased separately - 123200
Operating Specs
  • Radius: 25' to 46' (Shorter distance available with Black Short Radius Nozzles #466100)
  • Flow rate: 1.6 to 9.8 GPM
  • Part- and full-circle in one model for flexibility across landscapes and reduced inventory
  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360°
  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
  • Recommended pressure range: 25 to 70 PSI
  • Operating pressure range: 20 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees
Overview

The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned.

    Features / Benefits
    • Model: 4''
    • Arc setting: 50 to 360 degrees non-reversing
    • Factory installed rubber cover
    • Through-the-top arc adjustment
    • Quick check arc mechanism for fast arc adjustment
    • Water lubricated gear-drive
    • Includes: set of 12 nozzles (8 standard and 4 low angle)
    • Flat-top nozzles allow fast, easy insertion
      Dimensions
      • Overall height: 7½"
      • Pop-up height: 4"
      • Exposed diameter: 1¾"
      • Inlet size: ¾"
      Downloads
