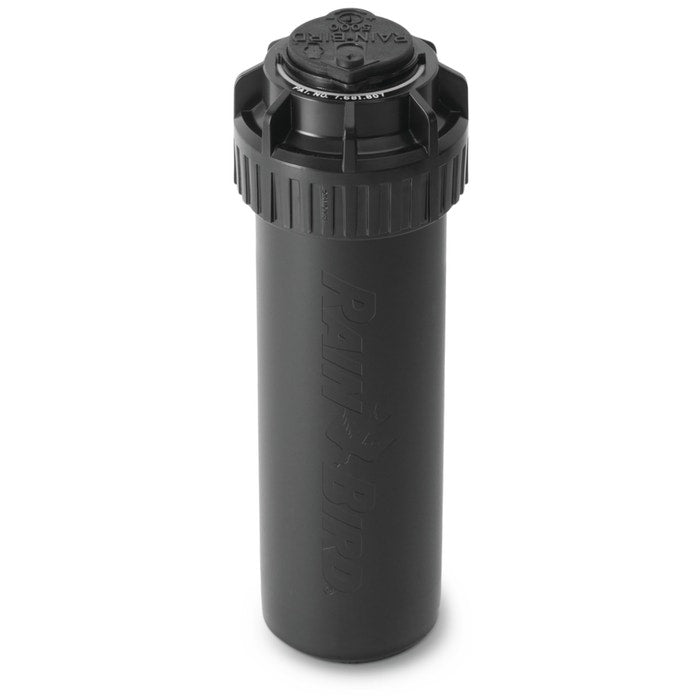

Rain Bird - 5004-FC - 4'' 5000 Series Full-Circle Rotor
Rain Bird - 5004-FC - 4'' 5000 Series Full-Circle Rotor is backordered and will ship as soon as it is back in stock.
Why so “cheap” at CheapSprinklers? Low prices by design — same parts, no compromise
Our prices are lower because of how we run our business — not because the product is different — and we pass those efficiencies directly on to you.
You’re receiving the same brand-new, factory-sealed item sold by big-box, supply-house, or bloated online-warehouse sellers — delivered direct to you, for less.
- Bulk Purchasing: We buy in high volume to lower per-unit cost
- Low Overhead: No physical storefronts or unnecessary middlemen
- Price-First Model: Our business is built around keeping everyday prices as low as possible — so you can put the savings toward other projects or your business.
- Fast & Efficient Fulfillment: Streamlined US warehouse operations keep costs down and orders moving fast.
The Result: Genuine products with full manufacturer warranty — delivered fast, without paying inflated big-box, supply-house, or bloated online-warehouse markups for the same parts.
CheapSprinklers Product Guarantee How we guarantee authenticity and warranty coverage
All products sold by CheapSprinklers are brand new and factory sealed. This Rain Bird Rotor (5004FC) is sourced through the Rain Bird’s authorized supply chain and ships from us in new-in-box retail packaging.
We’ve been sourcing and supporting irrigation products for professionals and DIYers through both brick-and-mortar and online channels since 1981.
If there’s ever an issue, CheapSprinklers stands behind what we sell and will help coordinate any warranty claim or replacement.
- Genuine New Rain Bird Rotor: no knockoffs, no refurbished, no old stock
- Factory Sealed: shipped in original new-in-box retail packaging
- Current Production Inventory: no discontinued or clearance stock
- Complete Rain Bird Warranty: full manufacturer coverage begins when your order is delivered
The Result: Peace of mind. You’re installing top-quality equipment — and if there’s ever an issue with this Rotor, you’re fully supported by CheapSprinklers and Rain Bird.
4 in. 5000 Series Full-Circle Pattern Pop-up Rotor
- Radius: 25 to 70
- Heavy-duty cover assembly for extra durability
- Rain Curtain Nozzles
- Slip clutch mechanism for quick adjustment on installation
- Heavy-duty retract spring assures positive pop-down
- 360° non-reversing full circle arc rotation
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
- Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
- Reinforced flow path for additional side load strength
- Additional O-rings and seals for extra protection in "gritty" water
- 1 Nozzle Tree per Rotor. Free ROTORTOOL with purchase of 20+.
Engineered to be the Industrys Most Reliable and Best Performing Rotor
Offering unmatched performance from 25 to 50, Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industrys only Triple-Blade Wiper Seal with unrivaled Rain Curtain„¢ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.
Features
Rain Curtain Nozzle Technology
- Rain Curtain Nozzles standard on all 5000 Series Rotors
- Large water droplets for greater wind resistance
- Effective close-in watering
- Even distribution over the entire radius
- Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25 to 50 (7.6m to 15.2m) distance of throw
- Self-aligning nozzles
Installation and Maintenance
- Slip clutch mechanism for quick adjustment on installation
- Faster maintenance with a new self-cleaning arc adjustment screw
- Top-adjust arc adjustment requiring only a flathead screwdriver
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Durability
- Heavy-duty cover assembly for extra durability in residential or commercial applications
- Heavy-duty retract spring assures positive pop-down
- Pressure-activated triple-blade multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
- Additional O-rings and seals for extra protection in "gritty" water
Specs
Operating Range
- Precipitation rate: 0.20 to 1.5 in/hr (5 to 37 mm/hr)
- Radius: 25 to 50 feet (7,6 to 15,2 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25-65 psi (1,7 to 4,5 bar)
- Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
- 3/4" NPT female bottom threaded inlet
- Non-Reversing Full circle rotation 360°
- Overall body height: 7 3/8" (18, 5 cm)
