NDS - 864 - 5'' Pro Series Channel Drain Kit
NDS - 864 - 5'' Pro Series Channel Drain Kit is backordered and will ship as soon as it is back in stock.
Why so “cheap” at CheapSprinklers? Low prices by design — same parts, no compromise
Our prices are lower because of how we run our business — not because the product is different — and we pass those efficiencies directly on to you.
You’re receiving the same brand-new, factory-sealed item sold by big-box, supply-house, or bloated online-warehouse sellers — delivered direct to you, for less.
- Bulk Purchasing: We buy in high volume to lower per-unit cost
- Low Overhead: No physical storefronts or unnecessary middlemen
- Price-First Model: Our business is built around keeping everyday prices as low as possible — so you can put the savings toward other projects or your business.
- Fast & Efficient Fulfillment: Streamlined US warehouse operations keep costs down and orders moving fast.
The Result: Genuine products with full manufacturer warranty — delivered fast, without paying inflated big-box, supply-house, or bloated online-warehouse markups for the same parts.
CheapSprinklers Product Guarantee How we guarantee authenticity and warranty coverage
All products sold by CheapSprinklers are brand new and factory sealed. This NDS Channel Drains & Grate (864) is sourced directly from NDS and ships from us in new-in-box retail packaging.
We’ve been sourcing and supporting irrigation products for professionals and DIYers through both brick-and-mortar and online channels since 1981.
If there’s ever an issue, CheapSprinklers stands behind what we sell and will help coordinate any warranty claim or replacement.
- Genuine New NDS Channel Drains & Grate: no knockoffs, no refurbished, no old stock
- Factory Sealed: shipped in original new-in-box retail packaging
- Current Production Inventory: no discontinued or clearance stock
- Complete NDS Warranty: full manufacturer coverage begins when your order is delivered
The Result: Peace of mind. You’re installing top-quality equipment — and if there’s ever an issue with this Channel Drains & Grate, you’re fully supported by CheapSprinklers and NDS.

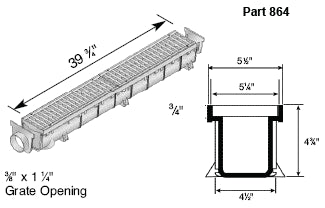

- 1 Meter (39-3/4") of channel drain and grate
- (2) Light Gray Grates #814
- Includes 1 End Outlet #813; Fits 3” (Hub) and 4” (Spigot) Sewer/Drain Pipe
- 1 End Cap #812
Features
- Unique interlocking design
- Allows each channel to securely lock to the next for a secure, tight fit

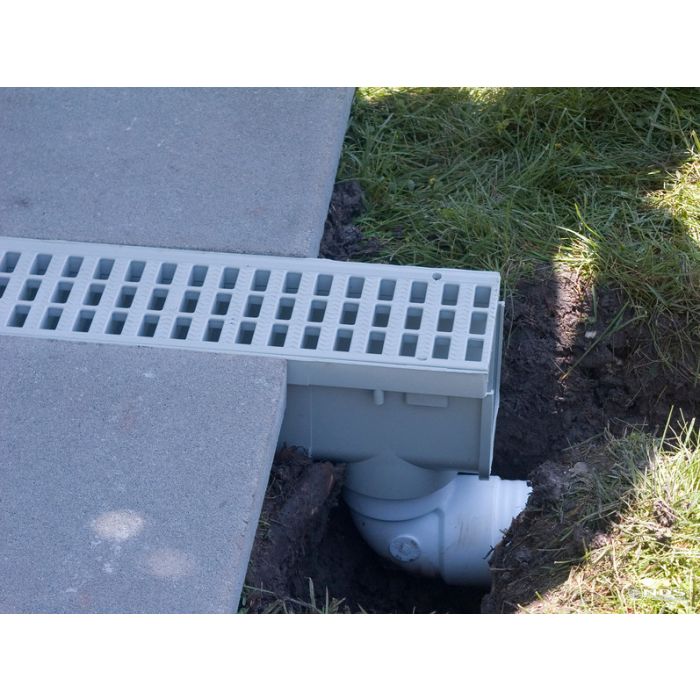

- A bottom outlet is built into each channel section and fits 3" & 4" S&D fittings
- Includes 1 meter (39-3/4") of channel drain and grate
- Includes 1 end outlet and 1 end cap
- Extended ribs to make channel more sturdy
- Lay-Flat design increases stability

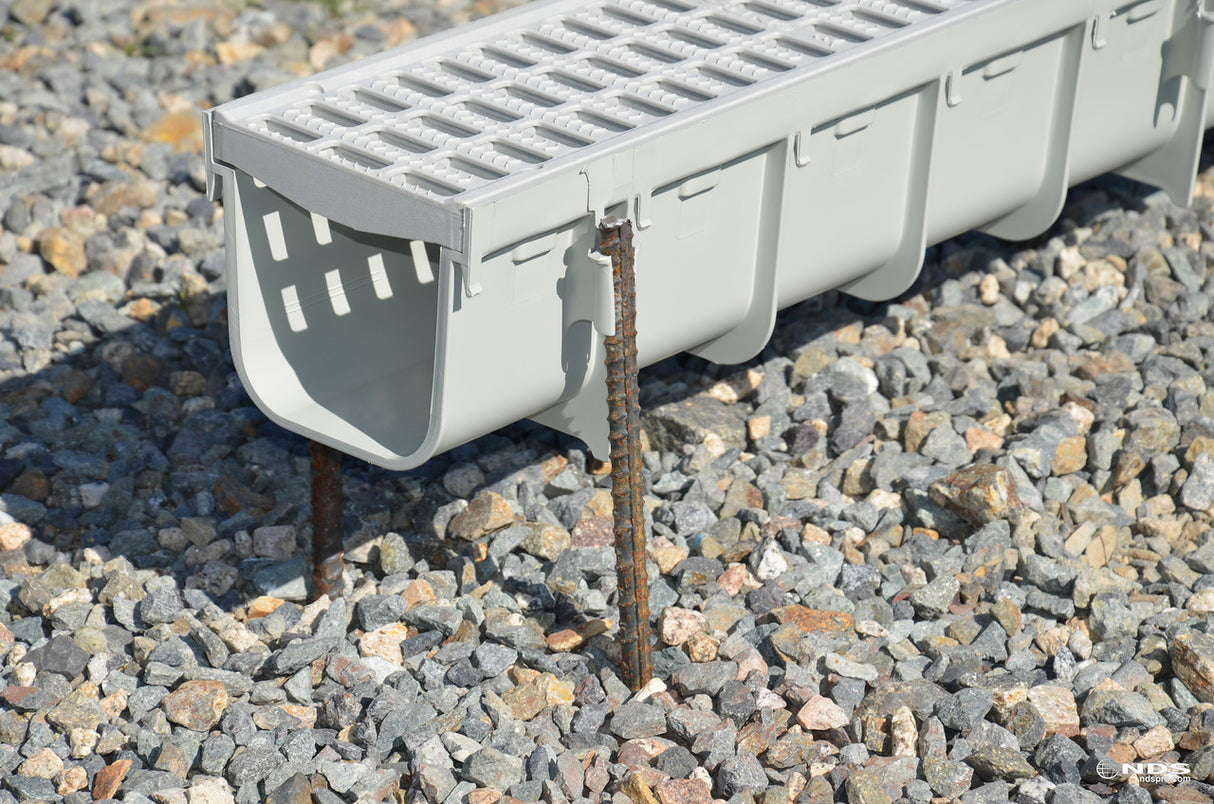

- New rebar tie clips for easier installation: Fits #4 Rebar
- New clip-in feature (channel to channel)

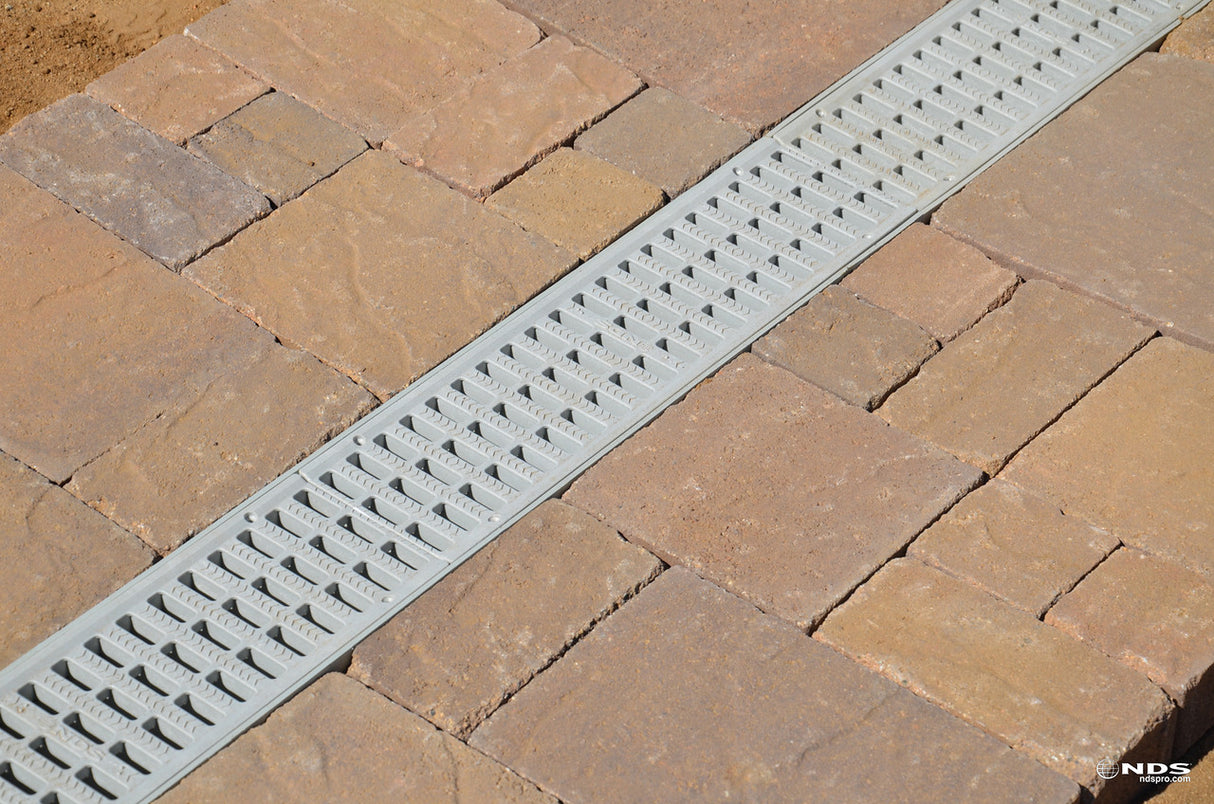

- Popular applications including driveways, courtyards, plazas, pool decks, parking lots, sports facilities and more.

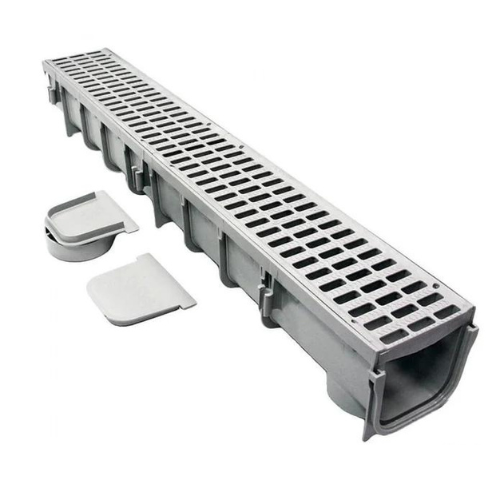

- Kit comes complete with channel, grates, screws, end caps/outlet and installation instructions.
The new and improved NDS 5'' Pro Series Deep Profile Channel Drain Kit is the most durable, feature-rich and easy to install modular drainage system in its class. channel is made from injection-molded polypropylene with extended side ribs for increased channel strength and UV inhibitors to prevent fading and cracking. Included slotted grates are light-gray HDPE for up to Class B loading and are ADA-compliant. Channels snap end-to-end quickly and easily with robust male-to-female locking clips for long channel runs. Cut guides allow the channel to be shortened by 4-inch increments for smaller interlocking sections. Included end cap and end outlet combined with new integrated second bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility. The new side outlets now allow 90-degree, tee and cross configurations to be made in the field without specialty accessories.
Specifications
- Loads of 61-175 psi.
- Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.
