Hunter - PGP04-CASE - 4'' PGP Ultra Rotor - Case of 20

Hunter  |  SKU: PGP04CASE
$19800 $50380

The PGP-Ultra head is an indispensable rotor with 12 nozzle choices included and a 25' to 46' radius. The PGP-Ultra 4'' Pop-Up rotor is ideal for residential or commercial applications. The flexibility of the PGP Ultra gives system installers an array of efficient options on any site.

Includes;

  • (20) PGP04 Ultra Rotors
  • (20) Blue/Grey nozzle set per rotor.

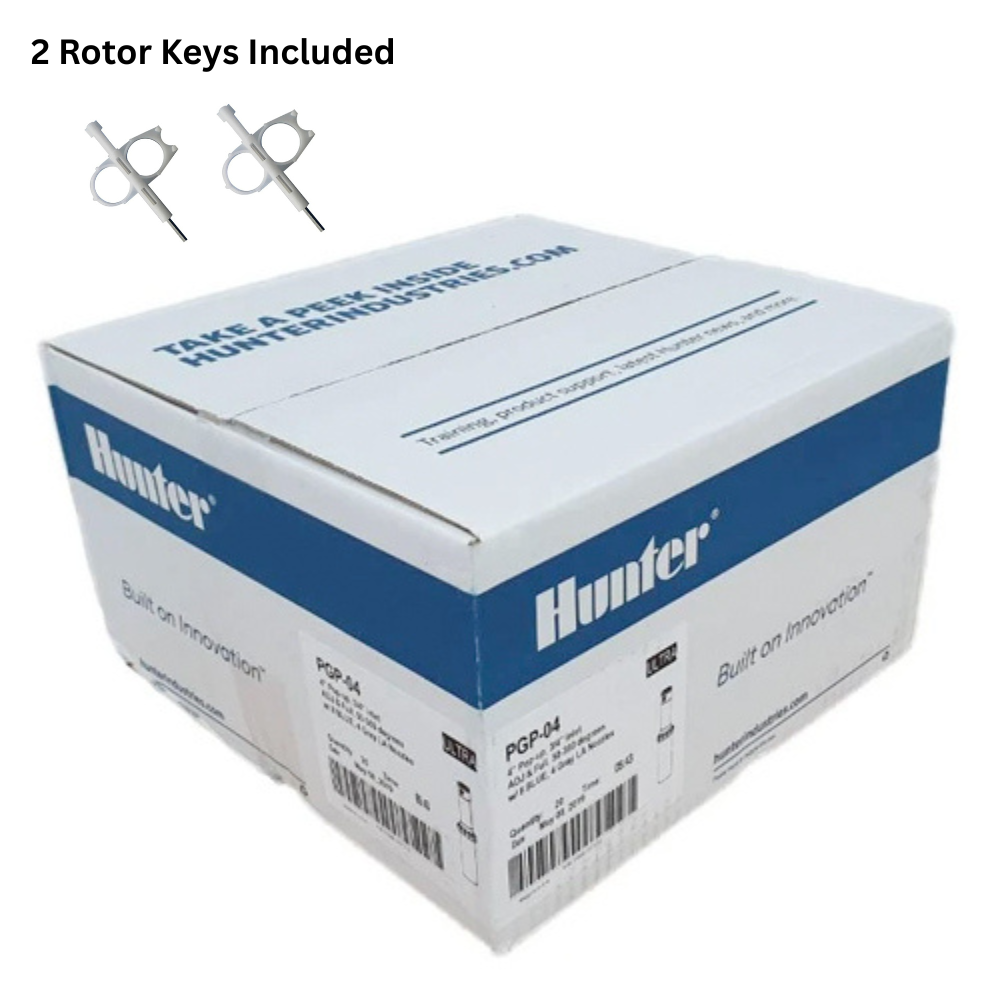

  • (2) Rotor keys included.
    • If you need to purchase additional keys then they will need to be purchased separately. Rotor key is part# 172000.
  • Optional Nozzle Changer Clip must be purchased separately - 123200
Operating Specs
  • Radius: 25' to 46' (Shorter distance (17'-26') available with Black Short Radius Nozzles #466100)
  • Flow rate: 1.6 to 9.8 GPM
  • Part- and full-circle in one model for flexibility across landscapes and reduced inventory (Adjust from 50° to a non-reversing 360° for flexibility across all landscapes and reduced inventory)
  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360°
  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
  • Recommended pressure range: 25 to 70 PSI
  • Operating pressure range: 20 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees
Overview

The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned.

Features / Benefits
  • Model: 4''
  • Arc setting: 50 to 360 degrees non-reversing
  • Factory installed rubber cover
  • Through-the-top arc adjustment
  • Quick check arc mechanism for fast arc adjustment
  • Water lubricated gear-drive

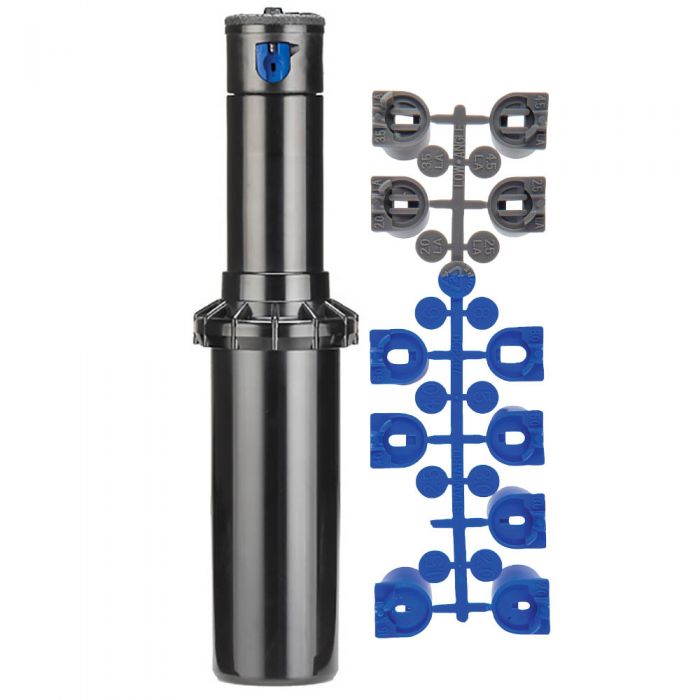

  • Includes: set of 12 nozzles (8 standard and 4 low angle)
  • Sold Separately - Drain Check Valve (up to 3' of elevation) (P/N 142300SP)
  • Flat-top nozzles allow fast, easy insertion
    Dimensions
    • Overall height: 7½"
    • Pop-up height: 4"
    • Exposed diameter: 1¾"
    • Inlet size: ¾"
    Downloads
