DIG - 410BT Bluetooth Battery Operated Controller w/ 1" Valve - 410BT-100

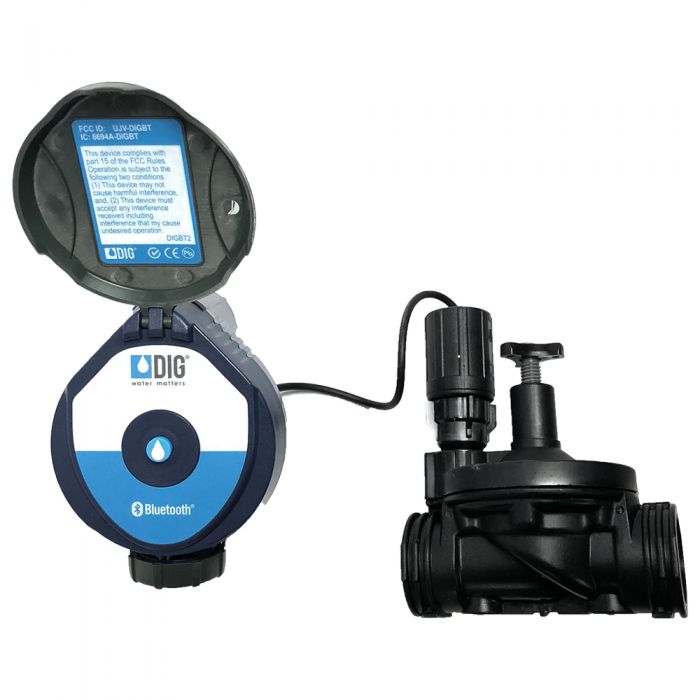

DIG 410BT-100 Bluetooth Battery Operated Controller - Includes a DIG 1'' In line valve

DIG's 410BT-Series Battery Operated Controller features Bluetooth® wireless technology combined with a full function irrigation controller to provide long-lasting, reliable, and feature-packed irrigation control via your smartphone or tablet. Download the free DIG BTT app to control any number of 410BT controllers through supported Android or iPhone smart devices from up to 50' (15 meters), line of sight.

The 410BT controller's rugged design is ideal for use in residential and commercial applications or where AC power is unavailable. It features a waterproof design (IP 68) and can operate for up to one year on two AA alkaline batteries. The controller includes a single button for manual operation and 1" professional grade in-line valve with flow control.

Features

• Download DIG’s BTT free app to your smartphone, then connect and control any number of DIG’s Bluetooth® controllers from the palm of your hand
• Operates with any supported Android or iPhone smart device
• Instantaneous communication with a smartphone
• Programmed entirely using accompanying smartphone app
• Customization through smartphone to name the controller or take a picture using the phone camera
• Password protection capabilities
• FCC and EC certified Bluetooth enabled
• Available in four languages (with more to come)
• Bluetooth communication range: up to 50′ (15 m)
• Non-volatile memory retains program and timer integrity (excluding time)
• Manual irrigation cycle can be performed via the app, or the timer’s manual program button or via the solenoid. Customizable duration for manual run.
• Three-year warranty

Controller and Valve Specifications

• Type: DC (IP68)

• Controller power input: constant 11-volt

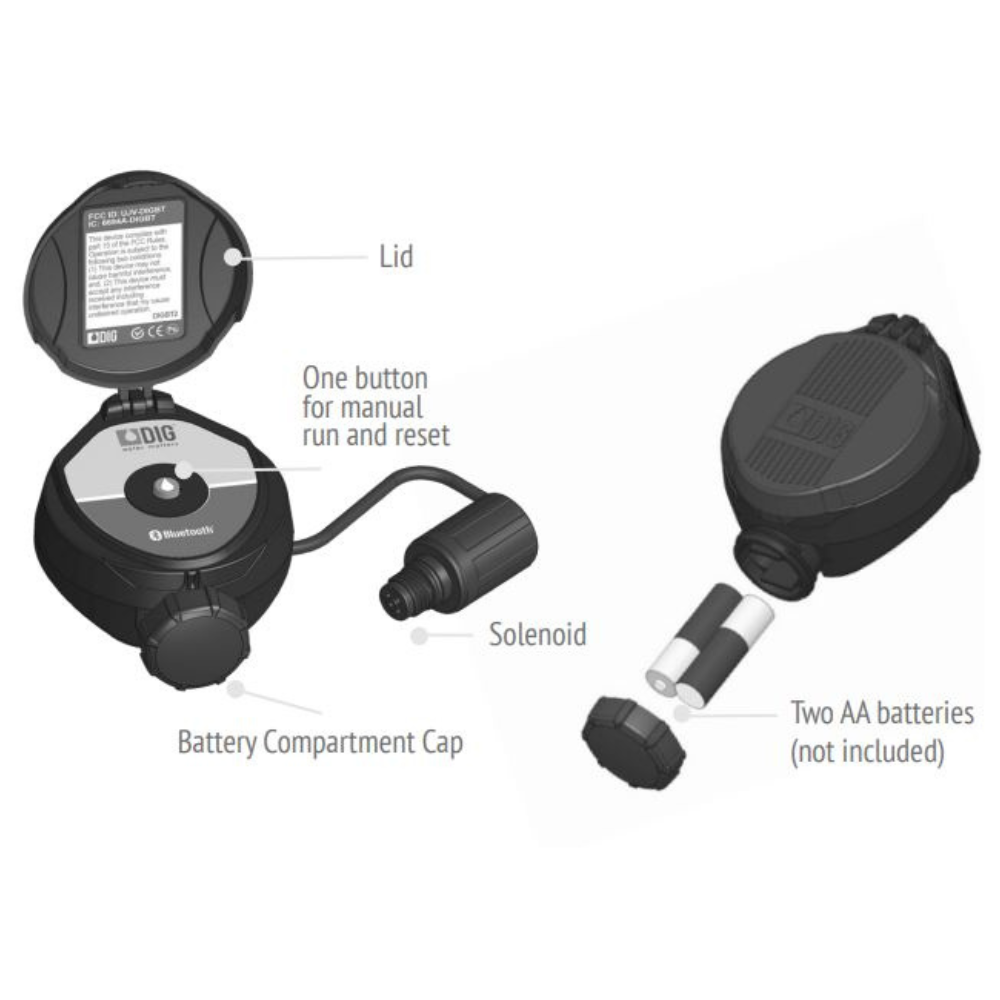

• Operation interface: one button for reset and manual run
• Power source: two AA alkaline batteries (not included)
• Solenoid with enclosed plunger: two-way magnetic latching
• Body: water proof, IP68
• Solenoid wire: 8'' (20 cm)
• Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
• Flow range: .2 to 35 GPM (.45 to 8 m3h)
• Temperature range: 38 - 130°F (3 - 54°C)
• Inlet and outlet: female pipe thread (FNPT)
• Valve size: 1" FNPT heavy duty globe valve with flow control


Programming features via smartphone

• Graphical representation of programming schedule
• Weekly, Even/Odd days of the month, or 1- to 30-day schedules
• Five start times per day
• Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments

Controller Setting

• View remaining battery life, connection strength, timer current watering status, and last watered information easily from the app
• System activation feature
• Rain delay option of up to 99 days with automatic restart for water conservation
• Budgeting by month of up to 200% in 5% increments
• Up to nine scheduled off dates per year (preventing the controller from operating on those specific days)
• Up to 12 months of irrigation run time history information in the palm of your hand
• Customization through smartphone to name the controller
• Customization through the smartphone Assigning a picture to a controller using the camera
• Password protection capabilities
