Brilliance - 12 VAC Low Voltage Dimmer (120 Watts)
Brilliance - 12 VAC Low Voltage Dimmer (120 Watts) is backordered and will ship as soon as it is back in stock.
Brilliance LED, LOW VOLTAGE, Dimmer Switch (10Amps - dimming up to 120watts)
DESCRIPTION:

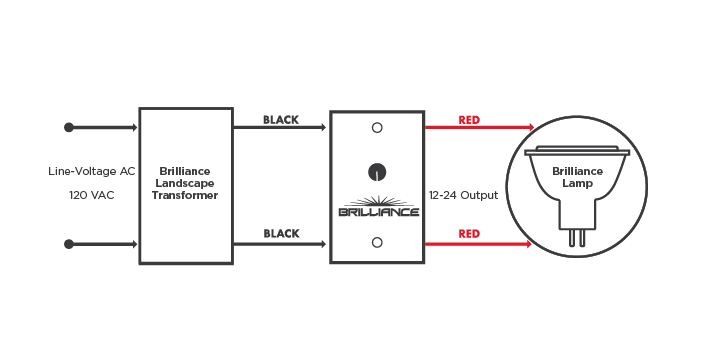

The Brilliance LED Dimmer provides 12 VAC dimming for up to 120 Watts. This unit can be mounted next to the 12 VAC transformer or anywhere in the field, and is compatible with all Brilliance LED lamps. Note that the Dimmer range may vary depending upon load that is applied. Made in America.
FEATURES:
- Installs in single-gang deep junction box on the low-voltage side of magnetic step-down transformer
- Includes: Dimmer Plate; Gasket; Wire Nuts; Plate Screws; Spare Fuse; Set Up Instructions
Specifications
- Wattage: 120
- Operating Range: 12-15 VAC
- Capacity: 10 Amps
- Minimum Load: None
- IP: 63
- Warranty (years): 3
TECHNICAL REQUIREMENTS:
Always use the supplied gasket to protect against water ingress. In applications where the environment can be extremely wet, we recommend using a cover to protect against water ingress.
Downloads:
Watch the full Brilliance Smart Products & Controls playlist of videos.
-
Box QuantityN/A
