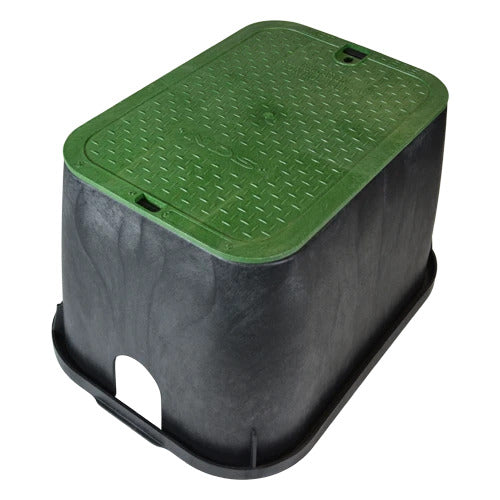

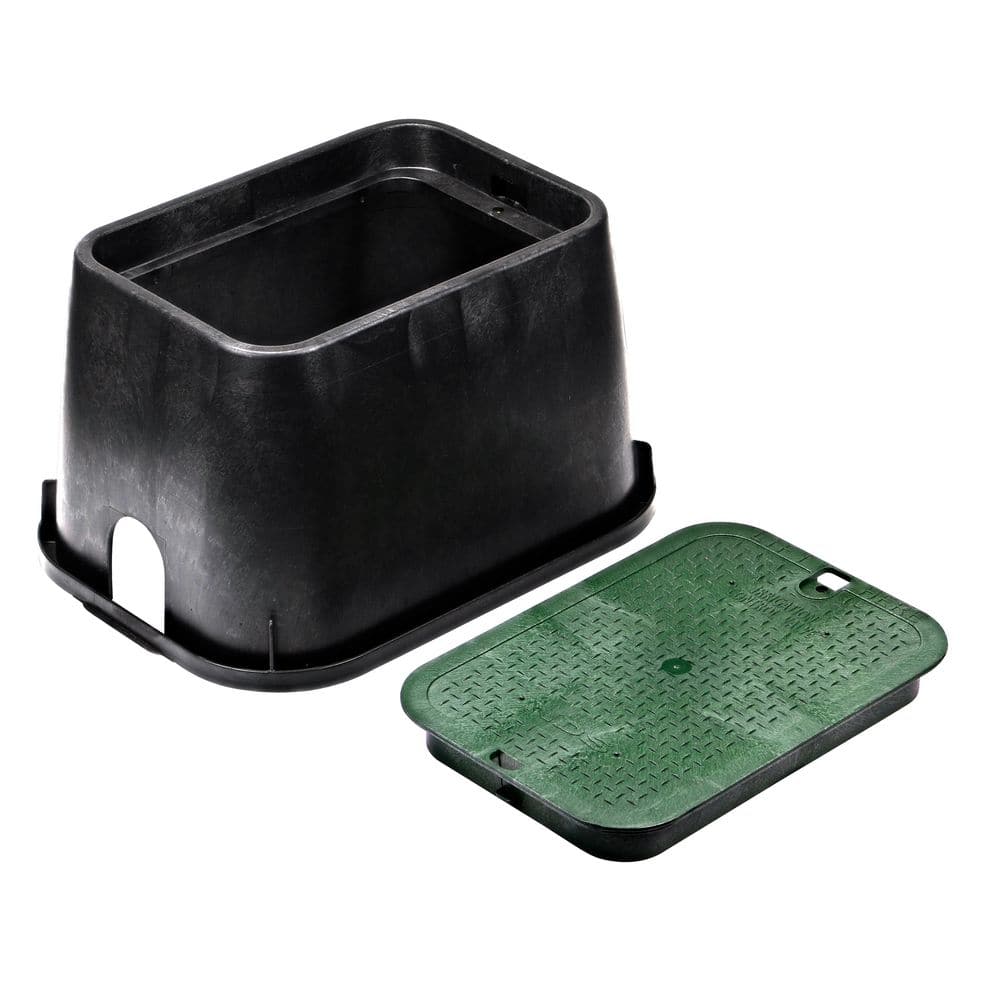

NDS - 113BC - Standard 14"x19"x12" Box and Overlapping Lid, Green Lid/ Black Body

NDS  |  SKU: 113BC
$3872 $11614

14 in. X 19 in. Rectangular Standard Series Valve Box and Cover, 12 in. Height, Black Box, Green ICV Cover

Protect underground irrigation and sprinkler system components with the 14 X 19 in. Rectangular Standard Series Valve Box and Cover. The black access box is 12 in. high and engineered with 16 structural support ribs for durability. The durable enclosure features the patented Universal Locking Mechanism (ULM) that enables the valve box cover to be secured with a variety of bolts and screws (3/8 to 1/2 in. diameter, minimum 2-1/2 in. length) and without the need for a nut. A speed nut shelf is also built into the box as an alternative way to fasten the cover using the traditional bolt/screw and nut (bolt and nut not included). Built-in pipe holes allow irrigation piping to pass through the wall of the box so that the box does not rest on the pipe. The green overlapping cover prevents dirt and debris from entering the valve box and is marked "IRRIGATION CONTROL VALVE" for content identification. The edge of the cover also indicates where to lift. The irrigation valve box is made of polypropylene (PP) and the lid is made of high-density polyethylene (HDPE), both treated with UV inhibitors.

Features & Benefits
  • Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
  • Use to protect a variety of irrigation system components
  • Fits over irrigation fixtures such as valves, control zone kits, and other irrigation accessories
  • Structural reinforcing ribs provide support and strength to protect items housed inside against damage
  • Overlapping cover prevents dirt and debris from entering the box; ICV designation; slot on lid for easy lifting with flathead screwdriver
  • Pipe hole facilitates irrigation pipe connections without having to dig under the box.
  • Comes with one 14 in. X 19 in. rectangular valve box and cover
  • Build valves and connect pipes; dig to allow enough depth so the lid is flush with the surface; add layer of gravel for drainage before putting box and cover in place, thread irrigation pipe through the hole; backfill
  • Box made of polypropylene (PP) using a 100% recycled content treated with UV inhibitors to prevent fading and cracking. Lid made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
Product Details

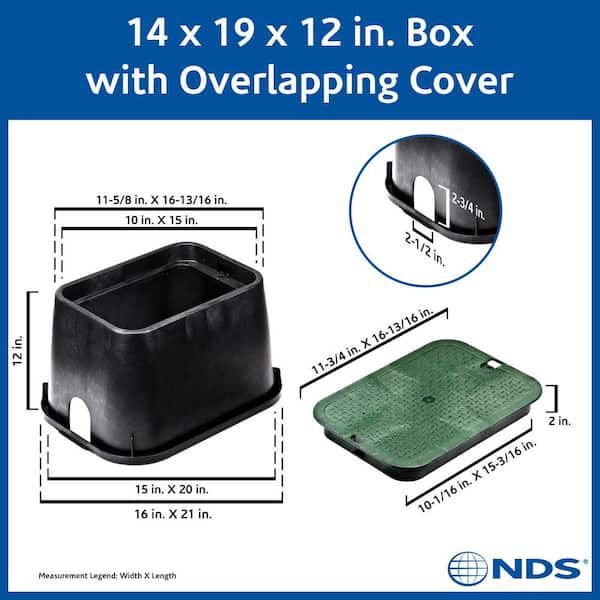

  • Box top dimensions: Top inside dimension (ID) 10 in. X 15 in.; top outside dimension (OD) 11-5/8 in. X 16-13/16 in.; Box bottom dimensions: bottom ID 15 in. X 20 in.; bottom OD 16 in. X 21 in.
  • Box height: 12 in.; Box pipe hole dimensions: 2-3/4 in. X 2-1/2 in.
  • Lid dimensions: Top dimension 11-3/4 in. X 16-13/16 in.; bottom dimension 10-1/16 in. X 15-3/16 in.; rim thickness 1/4 in.; overall height 2 in.
