Buckner - 261SDX10PG - 3/4'' Full/Part Circle Brass Impact Sprinkler MPT

Buckner  |  SKU: 261SDX10PG
$5886 $10051


Delivery and Shipping

Add some general information about your delivery and shipping policies.

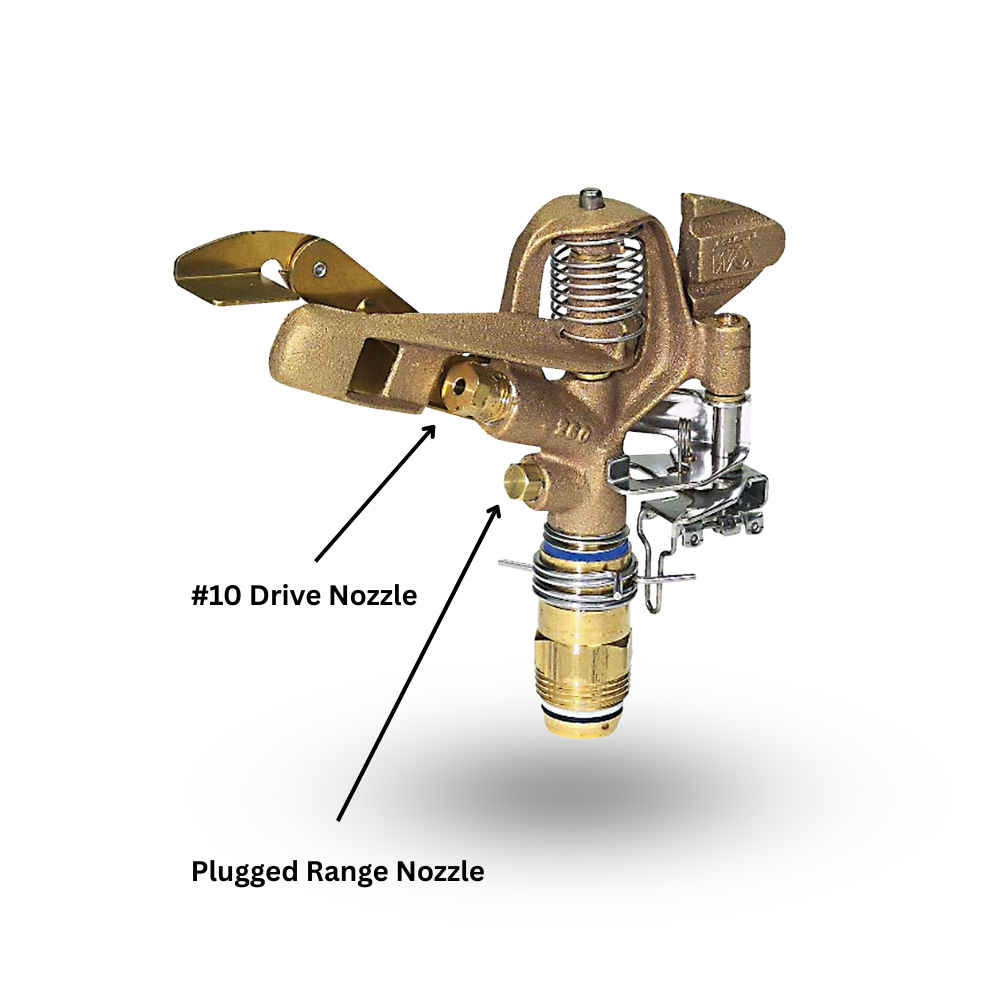

Buckner 261SDX10PG - 3/4'' Full/Part Circle MPT Brass Impact - 25° trajectory - #10 Drive Nozzle with Plugged Filler Nozzle

Designed for use in large landscape/turf  irrigation, dust control, nurseries and general purpose use.

Specifications

  • 3/4″ Male NPT Inlet (National Pipe Thread)
  • #10 - 5/32'' Drive Nozzle Size with Filler Nozzle Plug Pre-Installed (Other nozzle sizes available but not stocked, please email contact@cheapsprinklers.com to order with different range nozzles)
  • Drive Nozzle Thread: 1/4” - 18 NPT
  • Filler Nozzle Thread: 3/8” - 24 UNF

Operating Ranges

  • Pressure: 30 to 60 PSI
  • Flow: 4.35 to 6.53 GPM
  • Throw Radius: 41 to 46 FT
  • Trajectory: 23°
  • Rotation: 20° to 340° or Full Circle

Performance w/ Single #10 Nozzle and Filler Nozzle Plug

Features & Benefits

  • Solid brass construction
  • Stainless steel springs, spindle, and fulcrum pin
  • “Sure Seal®” sand load bearing assembly
  • Anti-backsplash arm
  • Adjustable diffuser pin
  • Adjustable deflector plate
  • Chemical-resistant bearing seals promote longer lifespan
  • Stream straightening vane standard
  • 25° angle of trajectory
  • Dual or Single nozzle options (please email contact@cheapsprinklers.com for dual or other nozzle options)

Additional Information

Other Throw Radius Nozzle options (41'-50') are available for this product with dual nozzle options. If you need another nozzle besides the #10 Single Nozzle with Plug pre-installed option, then please email contact@cheapsprinklers.com for a quote and availability.
