400A Battery Operated Controller w/ 2" PGV Valve - 400APGV-200

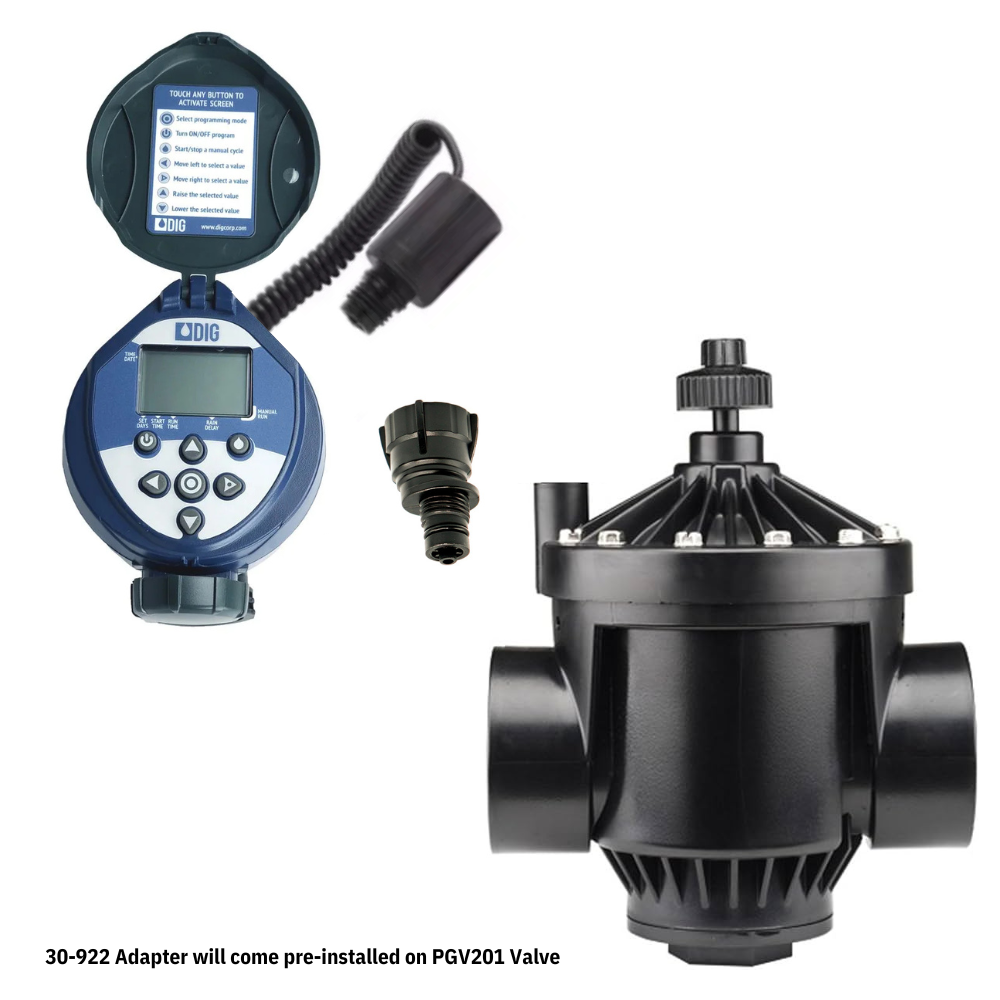

DIG 400A Battery Operated Controller (400A-000) pre-installed with a Hunter 2 inch PGV In-Line Valve. Valve Mounted Controller (DC) Battery Operated (Fixed Single Station)

A single station, battery powered controller designed for above ground use in situations where electrical power is not readily available. Built to withstand outdoor use this controller is waterproof and durable.

This new generation of Dig controllers are now smaller and more compact than ever before and have a larger display making it easier than ever to program. The Hunter PGV valves are hard working, heavy duty and offer the best features of Hunter's top-of-the-line valves. Built with enough durability to handle the rigors of commercial sites, these valves are virtually indestructible.

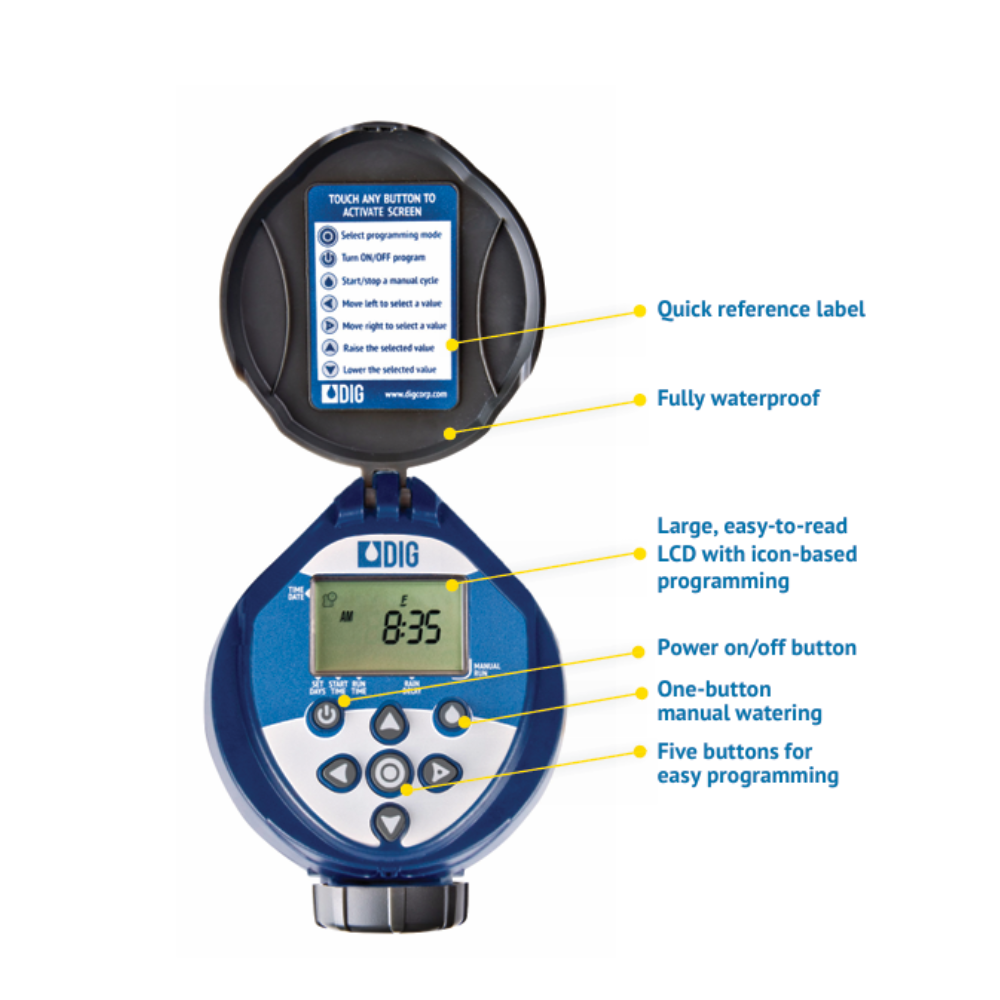

400A Controller Features

• Up to 3 years of operation from one pair of AA batteries
• 60 second memory function allows users to replace without losing programming
• Watering flexibility with a selection of watering frequencies and four start times
• Seven buttons with integrated high resolution screen
• Easy to read LCD display with AM/PM clock and icon-based intuitive programming for easy navigation
• Blinking notification on days the controller is active
• Programming time options in AM/PM or 24 hour
• After programming, the controller display indicates if irrigation is set to water for the day and if any of the additional programming features are active
• Non-volatile memory retains program and controller integrity (excluding time)
• Emergency backup program of 5 minutes every 24 hours if no program is selected after battery installation starting at 8:AM
• Manual irrigation cycle can be performed via the controller's manual program button or via the solenoid
• One button for Program Off until reactivated or as an irrigation suspension override (rain mode)
• After fifteen minutes the controller screen is turned off automatically to conserve energy
• Low battery indicator
• Semi-automatic, automatic, or manual operation
• Retractable cord for easy removal of the controller
• Latching solenoid with encapsulated plunger and spring for reliable operation
• Wire ready for a rain sensor
• Completely waterproof (IP68) - can operate in harsh environments
• Environmentally friendly - utilizes RoHS compliant components
• Battery life up to three years
• Three year warranty

PGV Valve Features

• Flow rate: 20 to 150 GPM
• Recommended pressure range: 20 to 150 PSI
• Temperature rating: 150° F
• All Hunter valves are 100% water tested to ensure reliable operation once installed
• Captive bonnet bolts provide hassle-free valve maintenance and eliminate the possibility of lost parts during disassembly
• Each valve available with globe or angle configuration for convenient placement
• Flow control maximizes efficiency and prolongs the life of the system
• External and internal manual bleed allows quick and easy at the valve activation
• A double-beaded diaphragm seal design for superior leak-free performance
• Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
• Hunter valve pre-installed with DIG 30-922 adapter for use with DIG battery operated controllers.

Downloads & Spec Sheets

• 400A Owner's Manual
• Cut Sheets
• PGV Spec Sheet
