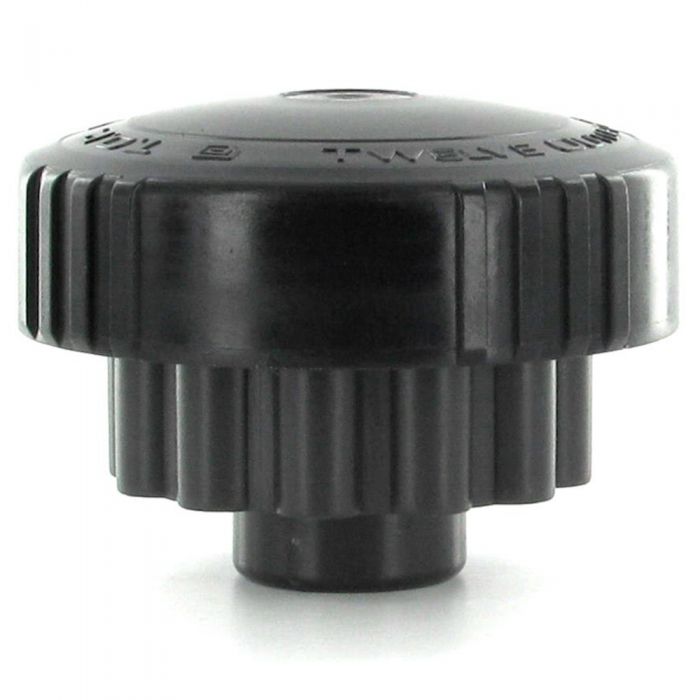

DIG - T.O.P 12-Outlet Manifold (3.3 GPH) - TOP-030
DIG - T.O.P 12-Outlet Manifold (3.3 GPH) - TOP-030 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
TOP 12-Outlet Drip Emitter. 3.3 GPH per outlet. The TOP concept is designed for first time installations or retrofitting an existing sprinkler riser into an efficient 12-Outlet drip irrigation system. The TOP concept utilizes unique self cleaning, pressure compensating emitters enabling long runs with even water distribution from all outlets.
Color-coded converter barbs, end plugs, caps, stakes and micro tubing sold separately. OR you can purchase TOP-100, TOP-200 or TOP-300 kits that include the accessories previously listed.
Features
- Use with 1/8" in. (.187 OD) distribution tubing
- or 1/4" in. (.150-.160 ID) distribution tubing when you purchase a bag of T.O.P Converter Barbs.
- Built-in with 12 individually pressure compensating drip emitters
- Self-flushing emitters allow passage of water and minimize clogging
- Interchangeable drip emitters available for variable flow rates in a single head
- Color-coded drip emitters and barbs easily identify flow rate at each zone
- Each drip emitter individually filtered (approx. 80 mesh)
- Backup mini-disk filter
- Rugged materials to withstand the most adverse conditions
- Install above grade or place below grade in a 6" emitter box
- Barbs, end plugs, caps, stakes and micro-tubing sold separately
- Flow Rate: 3.3 GPH per outlet
- Pressure Compensating Range: 8-80 PSI
- Operating Pressure: 15-50PSI
- Use with 1/8" in. (.187 OD) or 1/4" in. (.150-.160 ID) distribution tubing
- Inlet size: 1/2" in. NPFT
- Filter requirement: 120 mesh
- Body and cover: high impact plastic
- Filter: nylon
- Diaphragm: silicon
- 3" in. W x 2" in. H
-
Box QuantityN/A
