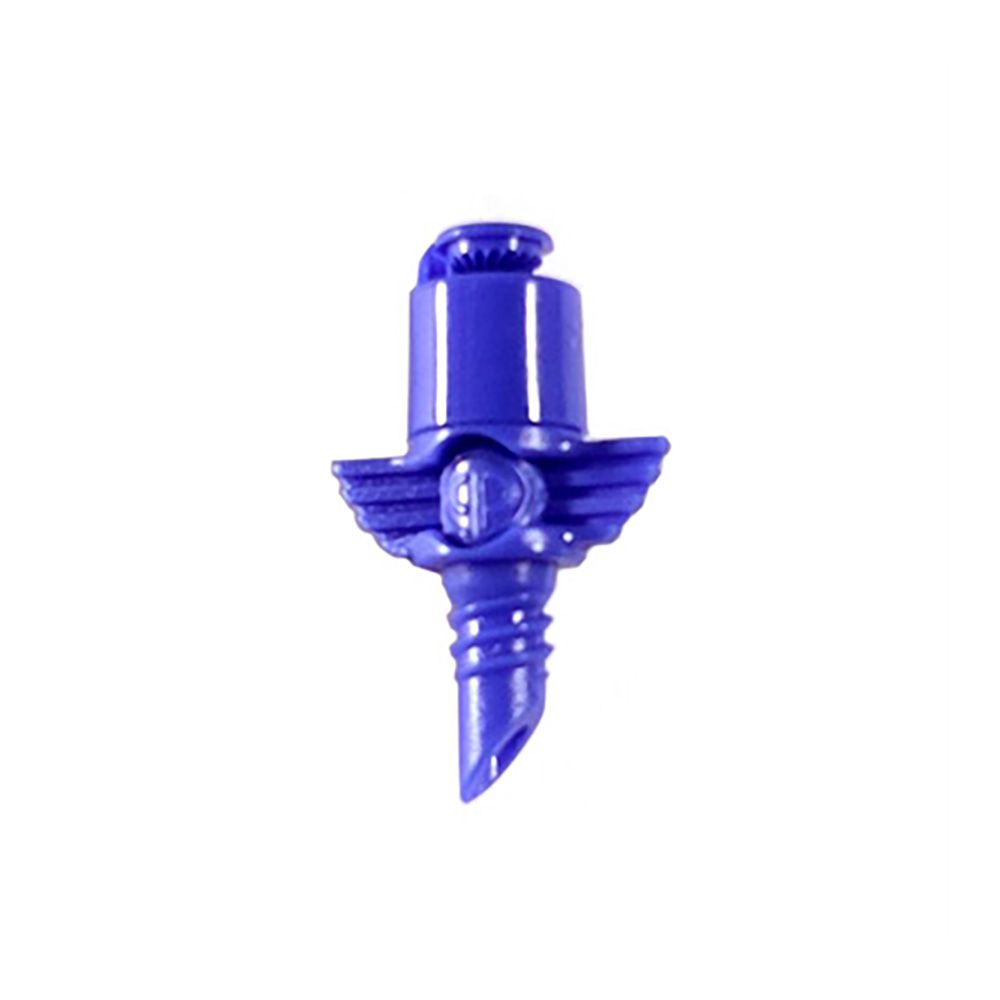

DIG - 180° Jet Sprayer on 10/32 thread - 07-002

DIG's Micro Sprayers are available in 90°, 180° and 360° spray patterns with a flow rate of up to 14.7 gallons per hour at 30 PSI. Producing a fine spray in a range of patterns, the micro sprayers can cover areas from a 5.9' radius to 19.8' in full diameter, depending on spray pattern. The low-precipitation-rate micro sprayers can be used for low-flow overhead irrigation or for an area where drip emitters or conventional sprinkler systems are not practical.

Features

• Available in 90°, 180° and 360° spray patterns
• Available on 10/3 thread and assembled on a 13" press fit stake with 24" (.160 ID x .270 OD) micro tubing and a 1/4" barb
• Two-piece construction, consisting of a color coded spray cap and threaded base
• Low flow with fine spray pattern
• Color-coded spray caps signify various spray patterns for easy identification
• Removable cap for easy cleaning
• Use with 1/4" distribution tubing (.150"-.160" ID)
• Constructed of UV-resistant, durable plastic material

Specifications

• Operating pressure range: 15 to 30 PSI (1-2 BAR)
• Flow rate: 10.5 - 14.7 GPH (L/H)
• Coverage: up to 19.8' (m)
• Pattern: 360°, 180° and 90°
• Base: 10/32 thread
• Orifice size: .031"
• Filter requirement: minimum of 120 mesh
• Recommended micro sprayer spacing: 4' to 8' apart
• Material: high-impact plastic
